jcb 19c-1 EP User Manual

18z-1, 19c-1, 19c-1 EP
16
17
Please see operator manual for full details.
1
4
2
5
3
6
Park Machine Up
Release Attachment
Disconnect Attachment
Restart Machine
Insert tommy bar
Remove Attachment
Park the machine on firm level
ground. Position the attach-
ment (A) just above the ground
and dozer (B) on the ground.
Start the engine, rest
attachment on the ground
and engage the hydraulics.
Apply downward pressure to
the tommy bar to release the
buckets rear pivot.
Slowly roll the quickhitch in the
direction of the arrow whilst
raising the dipper to release the
front pivot (A).
Stop the engine, remove any
connected hydraulic hoses and
remove the locking pin.
Insert the tommy bar into the
hole of the latch hook.
A Latch Hook B Tommy Bar
C Hole
Attachments
Quickhitch
121 9831/2900-1 121
Figure 104.
A
A Pivot pin
6. Remove the tommy bar from the Quickhitch.
7. Start the engine and carefully rest the attachment on the ground.
8. Slowly roll the Quickhitch back in the direction of arrow and simultaneously raise the dipper arm to release
the attachment’s front pivot pin from jaws.
Mechanical Hitch Unlock System
Standard Attachments
Attachments
Quickhitch
120 9831/2900-1 120
Figure 103.
A
C
B
A Latch hook B Tommy bar
C Hole
WARNING! The attachment will move when released. Stand clear and to one side when releasing the
attachment.
5. Apply a downward pressure on the bar to release the attachment rear pivot pin from the latch hook, allowing
it to swing forward as shown.
Attachments
Quickhitch
122 9831/2900-1 122
Figure 105.
A
B
A Pivot pin B Jaw
Maintenance
Check the operation of the Quickhitch daily.
Examine the Quickhitch daily for broken or missing parts.
Remove any debris from the latch hook locking mechanism.
Grease the Quickhitch daily.
If the Quickhitch is cleaned by high pressure water, always grease it afterwards.
Visually inspect the condition of the hydraulic hoses to the Qucikhitch.
A

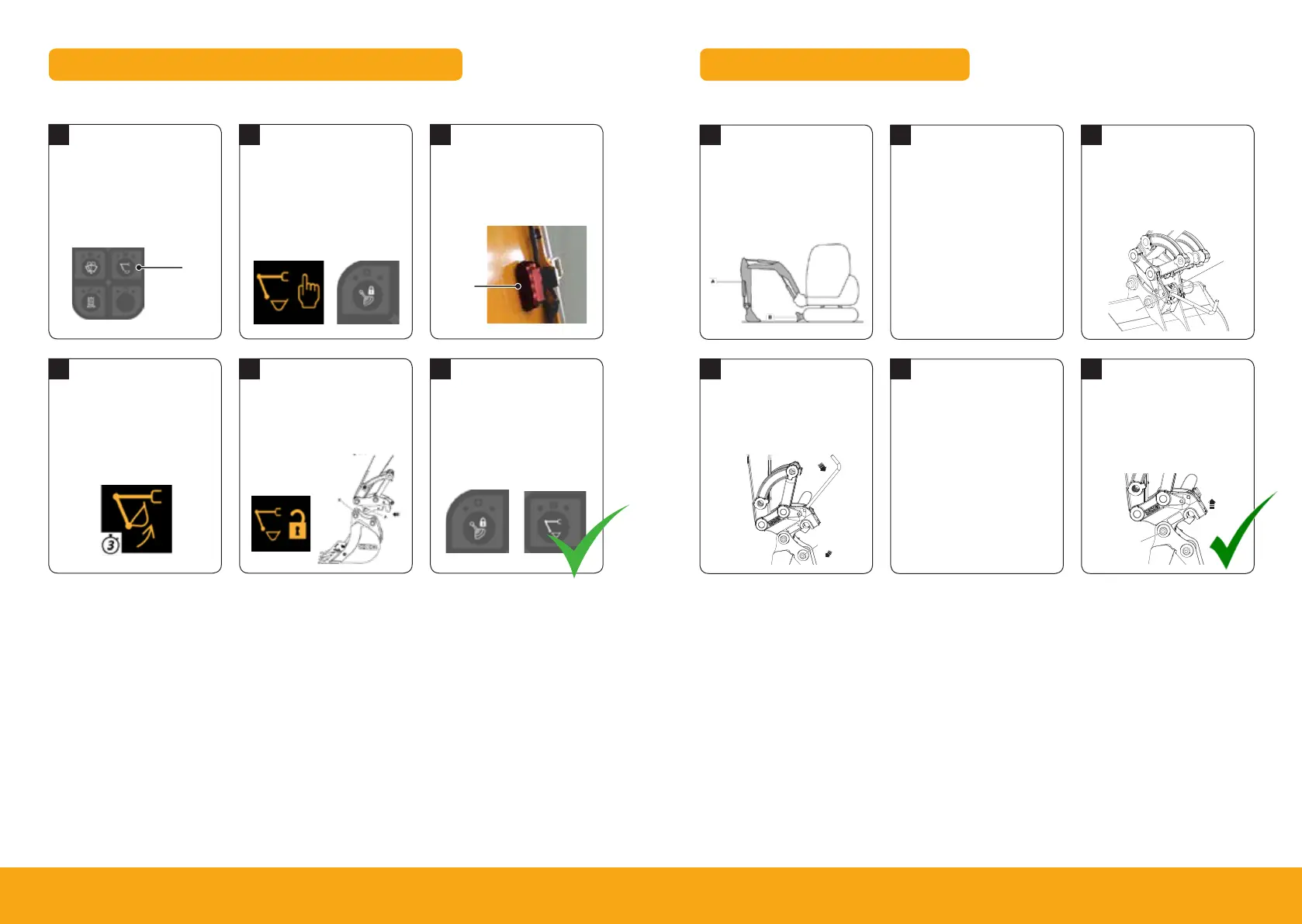

Hydraulic Hitch Unlock Sequence (19c-1 EP only)
1
4
2
5
3
6
Start Unlock Process
Remove Attachment
Confirm Process
Change Attachment
Boom LED Indicator
Lock Quick Hitch
To start quick hitch unlock
process ensure hydraulics are
live then press quick hitch
sequence button (A).
Operate the machine to
engage the jaw (A) with the
attachment (B) and then full
crowd the attachment
to align latch.
To disengage the pivot pin,
crowd attachment for 3 seconds
then remove attachment.
To engage the lock on the quick
hitch press one of the following
two buttons and visually check
hitch is locked.
Instrument panel will indicate
need to confirm process (A).
To confirm process press 2 GO
button (B).
When the sequence is
confirmed the LED on the
boom will flash red (A).
A
A
A
B
B
A
Standard Attachments
