Operation
Entering and Leaving the Operator Station
27 9821/6100-4 27

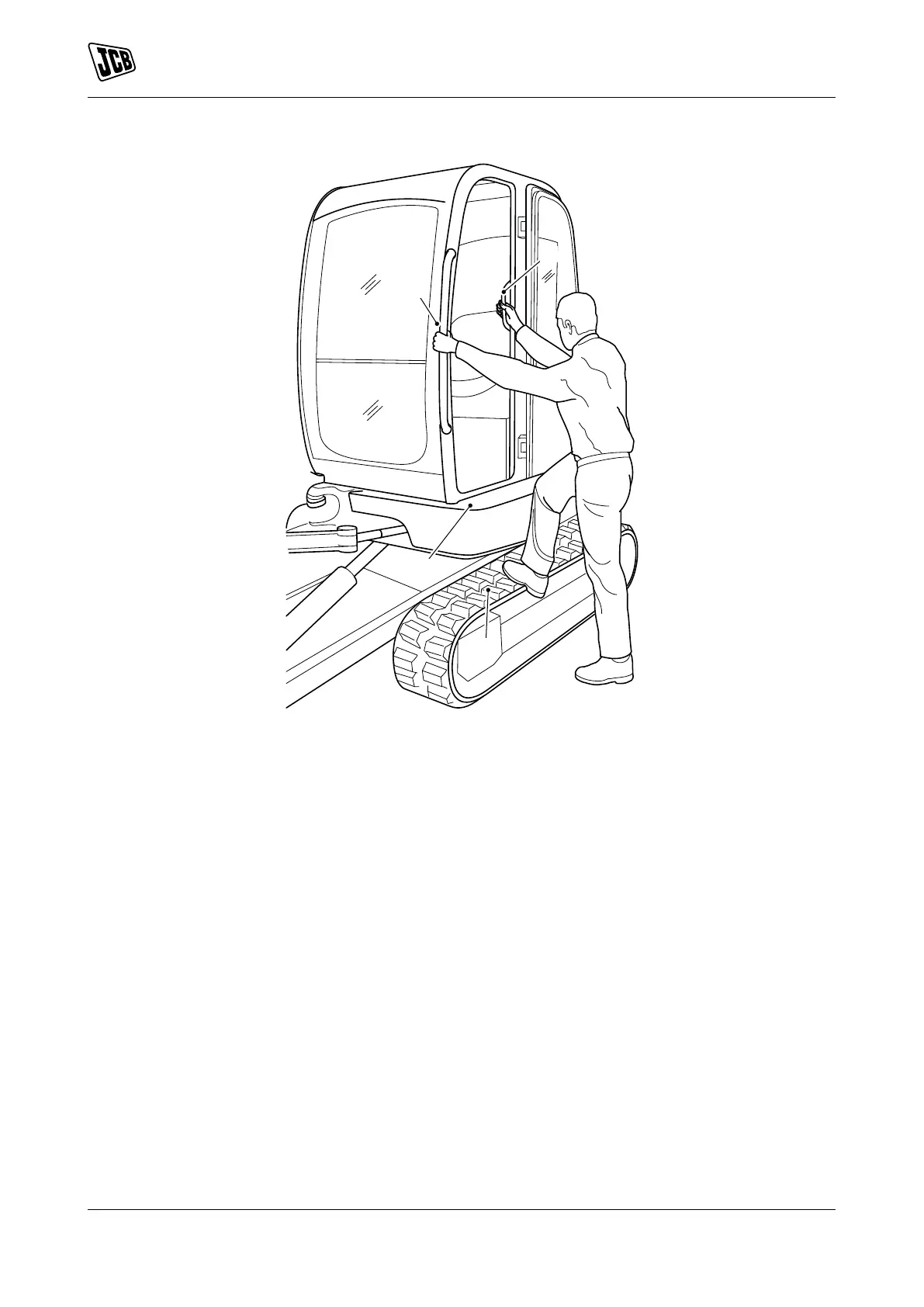

Figure 13.
A Handrails B Track
C Step
4. Hold the left handrail, step into the cab and swing yourself into the operators seat.
Leaving the Cab
1. Park the machine on solid, level ground with the upper structure parallel to the undercarriage.
2. Stop the engine.
3. Turn the ignition switch to position 1.
4. Operate the hydraulic controls several times to release any residual hydraulic pressure in the system.
5. Turn the ignition key to position 0.
6. Raise the left controls console.
7. Open the cab door and latch it in the open position.
8. Hold the left handrail and turn your back towards the step.
9. Hold both handrails and use the track to step down backwards from the step onto the ground.
Entering the Canopy
1. Check that the left controls console is raised. When the left controls console is in the raised position the
excavator, track, dozer, swing, and auxiliary controls cannot be operated.
