21
JCB-MS-254SB
Instruction & User Manual

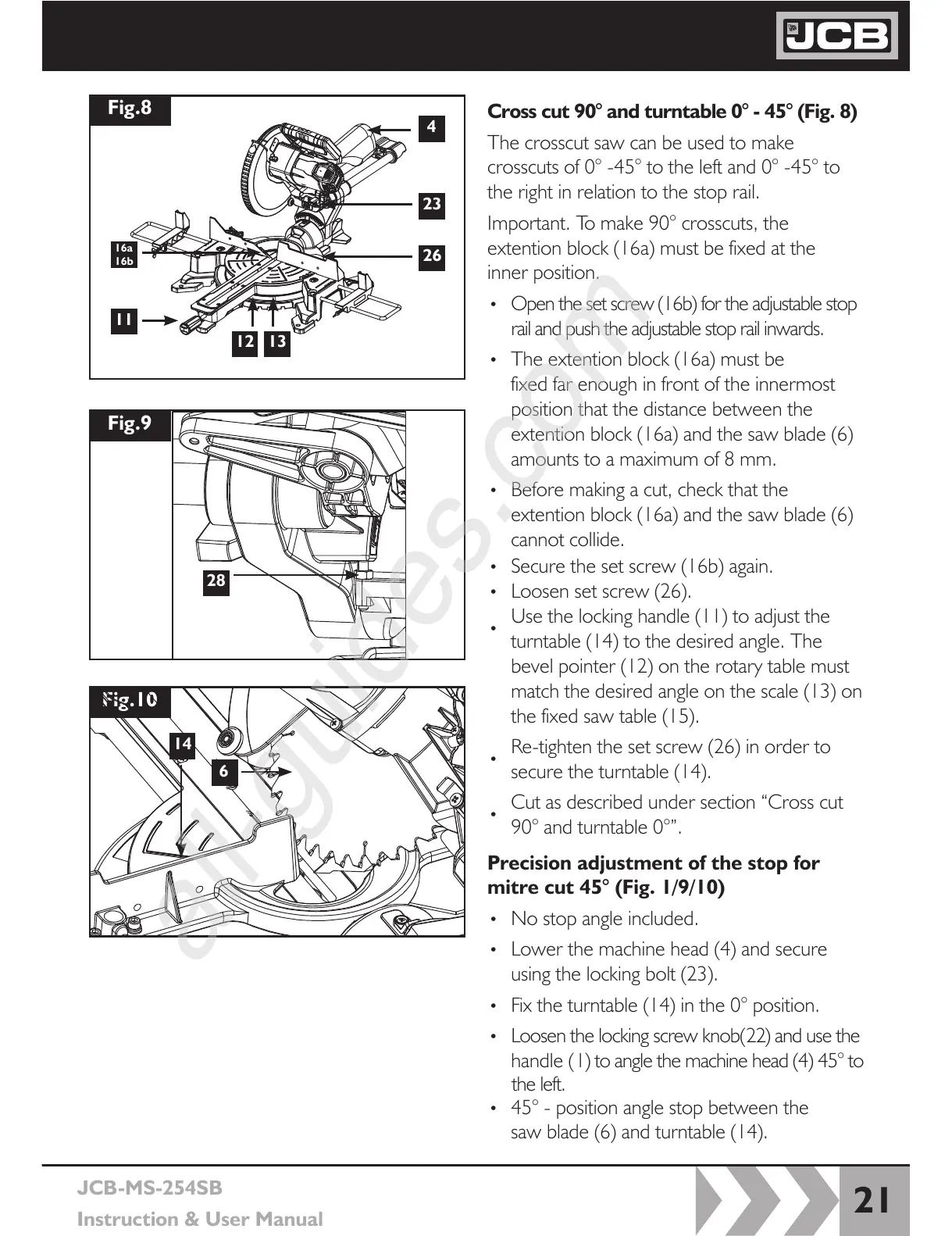

Cross cut 90° and turntable 0° - 45° (Fig. 8)
The crosscut saw can be used to make
crosscuts of 0° -45° to the left and 0° -45° to
the right in relation to the stop rail.
Important. To make 90° crosscuts, the
extention block (16a) must be fixed at the
inner position.
• Open the set screw (16b) for the adjustable stop
rail and push the adjustable stop rail inwards.
• The extention block (16a) must be
fixed far enough in front of the innermost
position that the distance between the
extention block (16a) and the saw blade (6)
amounts to a maximum of 8 mm.
• Before making a cut, check that the
extention block (16a) and the saw blade (6)
cannot collide.
• Secure the set screw (16b) again.
• Loosen set screw (26).
•
Use the locking handle (11) to adjust the
turntable (14) to the desired angle. The
bevel pointer (12) on the rotary table must
match the desired angle on the scale (13) on
the fixed saw table (15).
•
Re-tighten the set screw (26) in order to
secure the turntable (14).
•
Cut as described under section “Cross cut
90° and turntable 0°”.
Precision adjustment of the stop for
mitre cut 45° (Fig. 1/9/10)
• No stop angle included.
• Lower the machine head (4) and secure
using the locking bolt (23).
• Fix the turntable (14) in the 0° position.
• Loosen the locking screw knob(22) and use the
handle (1) to angle the machine head (4) 45° to
the left.
• 45° - position angle stop between the
saw blade (6) and turntable (14).
Fig.8
Fig.9
Fig.10
4
11
16a
16b
1312
26
23
28
6
14
