23
JCB-MS-254SB
Instruction & User Manual

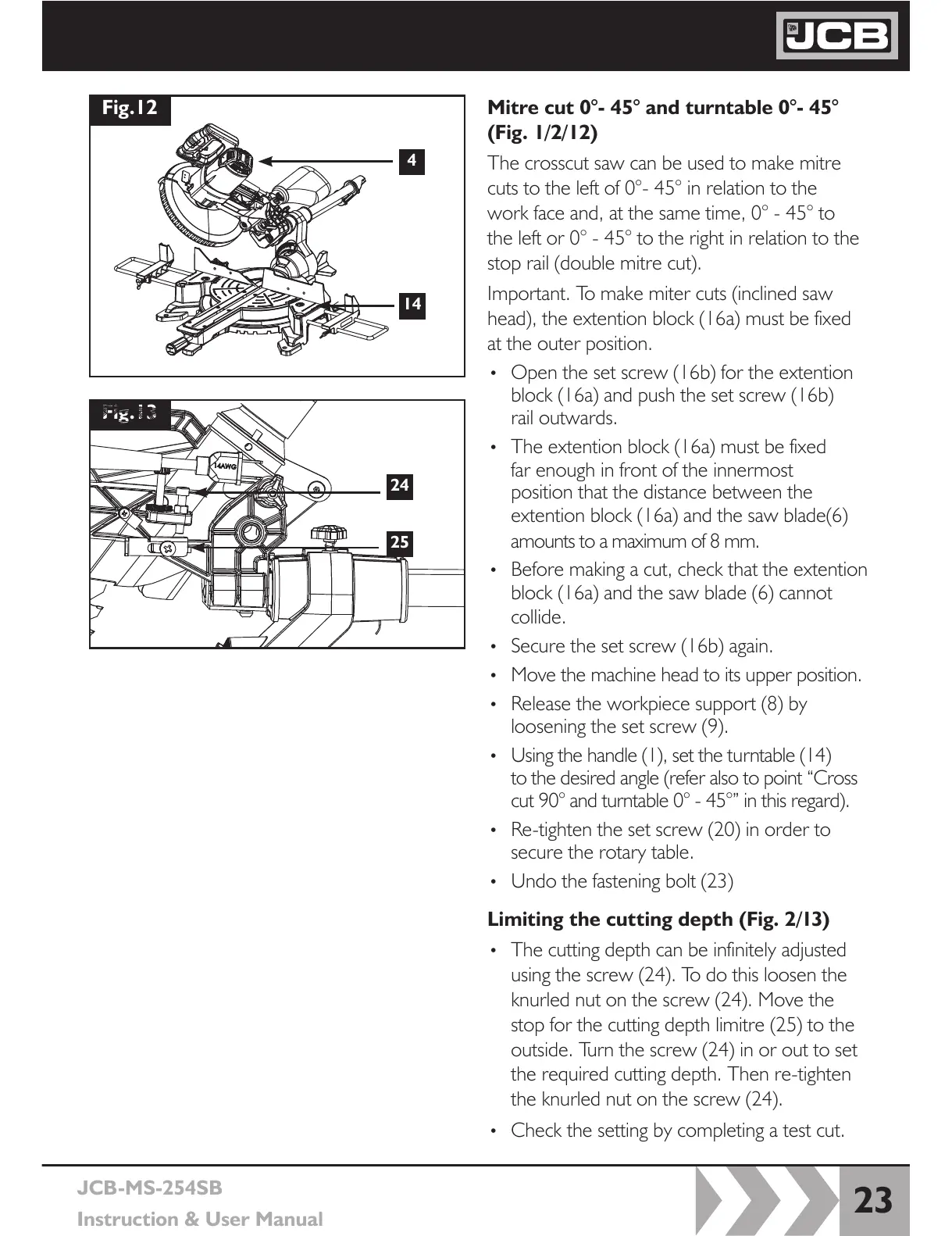

Mitre cut 0°- 45° and turntable 0°- 45°
(Fig. 1/2/12)
The crosscut saw can be used to make mitre
cuts to the left of 0°- 45° in relation to the
work face and, at the same time, 0° - 45° to
the left or 0° - 45° to the right in relation to the
stop rail (double mitre cut).
Important. To make miter cuts (inclined saw
head), the extention block (16a) must be fixed
at the outer position.
• Open the set screw (16b) for the extention
block (16a) and push the set screw (16b)
rail outwards.
• The extention block (16a) must be fixed
far enough in front of the innermost
position that the distance between the
extention block (16a) and the saw blade(6)
amounts to a maximum of 8 mm.
• Before making a cut, check that the extention
block (16a) and the saw blade (6) cannot
collide.
• Secure the set screw (16b) again.
• Move the machine head to its upper position.
• Release the workpiece support (8) by
loosening the set screw (9).
• Using the handle (1), set the turn table (14)
to the desired angle (refer also to point “Cross
cut 90° and turntable 0° - 45°” in this regard).
• Re-tighten the set screw (20) in order to
secure the rotary table.
• Undo the fastening bolt (23)
Limiting the cutting depth (Fig. 2/13)
• The cutting depth can be infinitely adjusted
using the screw (24). To do this loosen the
knurled nut on the screw (24). Move the
stop for the cutting depth limitre (25) to the
outside. Turn the screw (24) in or out to set
the required cutting depth. Then re-tighten
the knurled nut on the screw (24).
• Check the setting by completing a test cut.
Fig.12
Fig.13
4
14
25
24
