22
JCB-MS-254SB
Instruction & User Manual
• Adjust the adjusting screw (28) until the
angle between the saw blade (6) and
turntable (14) is precisely 45°.
• It is not necessary to fix this setting because
it is maintained by the spring pretension.
• Subsequently check the position of the
angle indicator. If necessary loosen the miter
pointer (19) using a Philips screwdriver, set
to position 45° on the bevel scale (18) and
re-tighten the retaining screw.

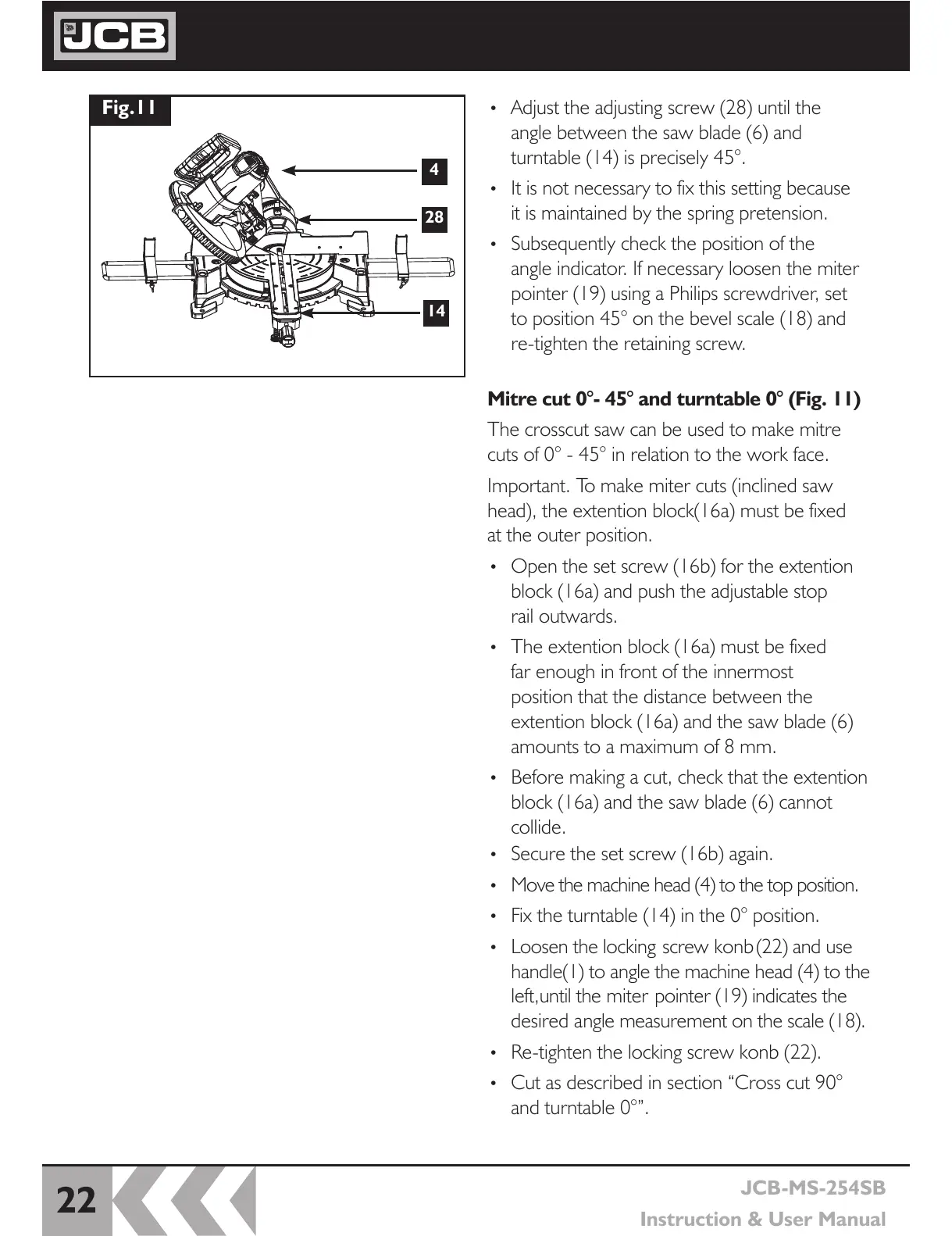

Mitre cut 0°- 45° and turntable 0° (Fig. 11)
The crosscut saw can be used to make mitre
cuts of 0° - 45° in relation to the work face.
Important. To make miter cuts (inclined saw
head), the extention block(16a) must be fixed
at the outer position.
• Open the set screw (16b) for the extention
block (16a) and push the adjustable stop
rail outwards.
• The extention block (16a) must be fixed
far enough in front of the innermost
position that the distance between the
extention block (16a) and the saw blade (6)
amounts to a maximum of 8 mm.
• Before making a cut, check that the extention
block (16a) and the saw blade (6) cannot
collide.
• Secure the set screw (16b) again.
• Move the machine head (4) to the top position.
• Fix the turntable (14) in the 0° position.
• Loosen the locking screw konb (22) and use
handle(1) to angle the machine head (4) to the
left,until the miter pointer (19) indicates the
desired angle measurement on the scale (18).
• Re-tighten the locking screw konb (22).
• Cut as described in section “Cross cut 90°
and turntable 0°”.
Fig.11
4
28
14
