Jensen JRV212T User Manual

JRV212T
5
IR REMOTE CONTROL
CONNECTOR
WHITE FEMALE
RCA CONNECTOR
WHITE FEMALE
RCA CONNECTOR
RED FEMALE
RCA CONNECTOR
RED FEMALE
RCA CONNECTOR
FEMALE MOTOROLA TYPE
ANTENNA CONNECTOR
SIRIUS CONNECTOR
IPOD CONNECTOR
CH3 CAMERA
CONNECTOR
CH2 CAMERA
CONNECTOR
CH1 CAMERA
CONNECTOR
YELLOW VIDEO INPUT
FEMALE CONNECTOR
4 PIN PLUG AMP
CONNECTOR
RIGHT REAR SPEAKER (+)
RIGHT FRONT SPEAKER (+)
LEFT FRONT SPEAKER (+)
LEFT REAR SPEAKER (+)
LEFT REAR SPEAKER (-)
LEFT FRONT SPEAKER (-)
RIGHT FRONT SPEAKER (-)
RIGHT REAR SPEAKER (-)
NO CONNECTION
NO CONNECTION
POWER ANTENNA AMP
+12 V ACC SWITCHED
GROUND
BACKLIGHT DIMMER
+12 V BATTERY
NO CONNECTION

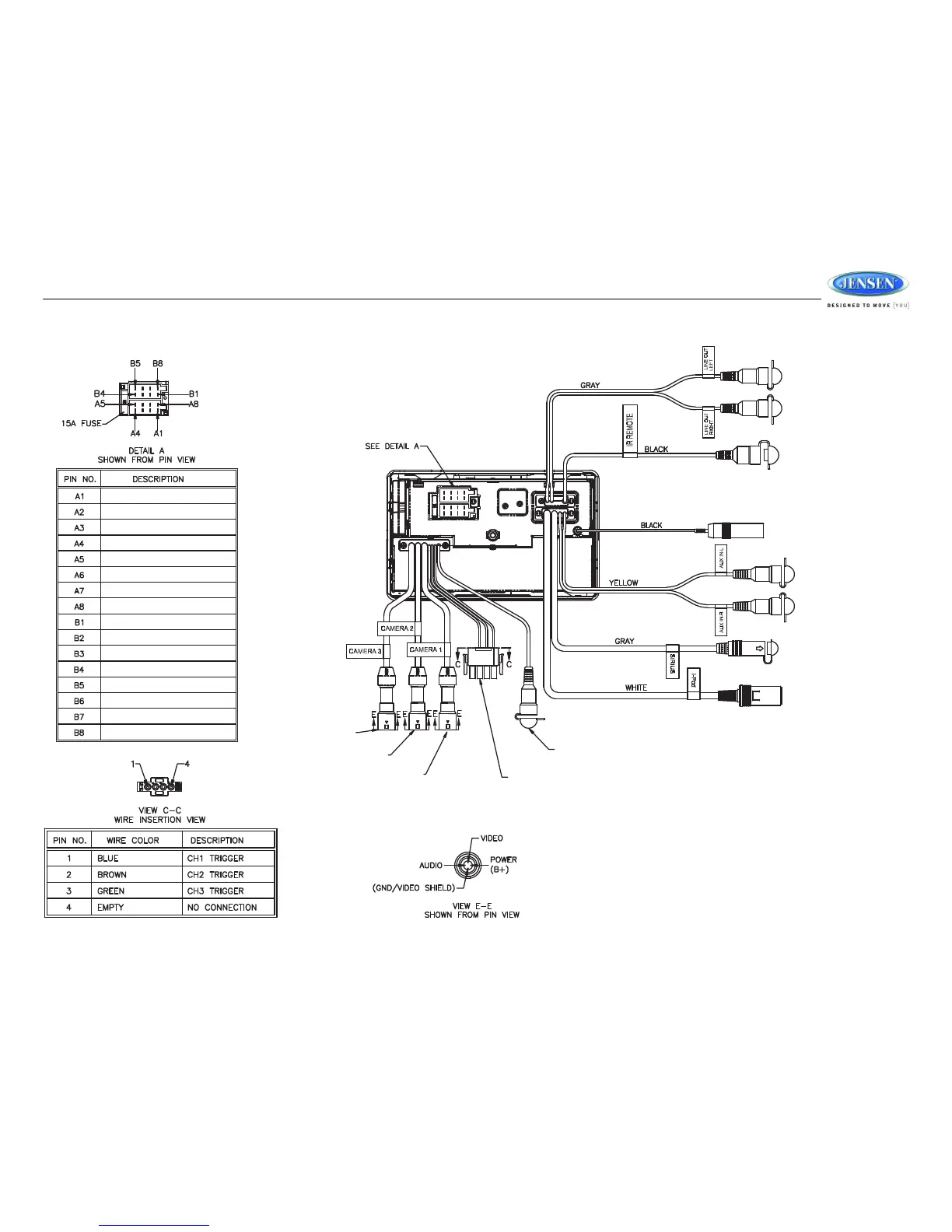

WIRING
