17
Coal Lay and Fire Front Fitting
Please note - These diagrams show the build up of a 16” fire. All other sizes should be treated in a
similar manner, merely adjusting the number of coals according to the width.

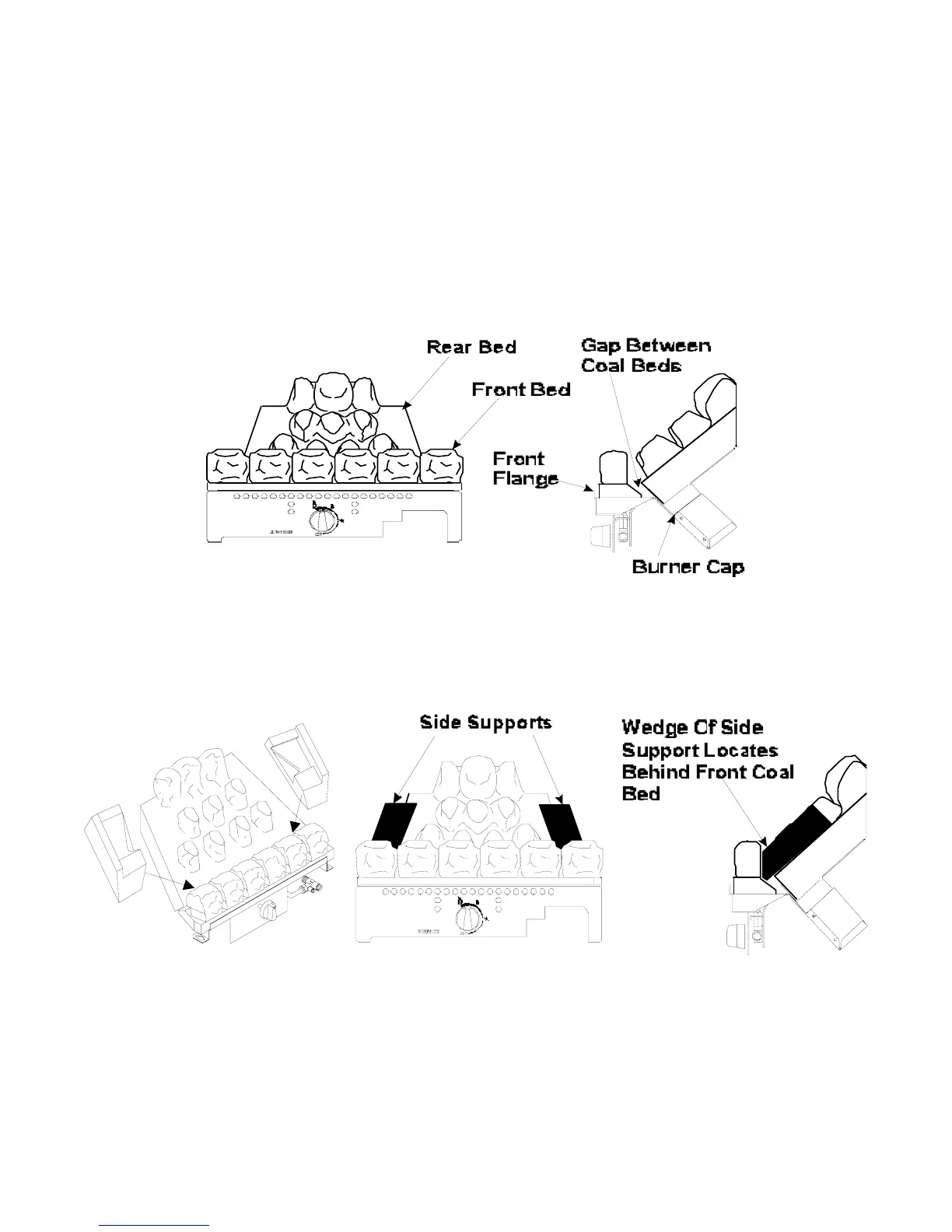

Rear Coal Bed
Place the rear coal bed onto the sloping face of the burner tray with the front edge resting against
the lip of the burner cap. Ensure it central left and right.
Front Coal Bed
Place the front coal bed in position on the burner tray in front of the rear coal bed. Ensure that it is
positioned behind the flanges on the edge of the burner tray and that it is central left and right. There
will be a gap between the rear of the front coal bed and the front of the rear coal bed.
Check that the pilot is not obscured and the front coal bed is flat down on the burner tray.
Place the left hand and right hand side coal supports onto the rear coal bed so that the wedged
slope is towards the front. They should locate behind the front coal bed with the flat sections facing
down and against the sides of the firebox.
Place the fire front in position without the ash pan cover. See Fig. 6.
The Regency Front, Open Front and Bauhaus are free standing and when fitted should stand on the
hearth up against the front of the burner tray. The studs on the Horizontal front locate in the fixing
brackets screwed to the burner. The studs on the Horizontal Front can also be adjusted in and out if
needed. On the Remote Control option the fire front will be spaced away from the front of the burner
tray slightly more to allow for the heat.
