44 - Maintenance
IMPORTANT: Correct fluid level must be main-
tained to ensure operation of the impact protection
built into this unit.

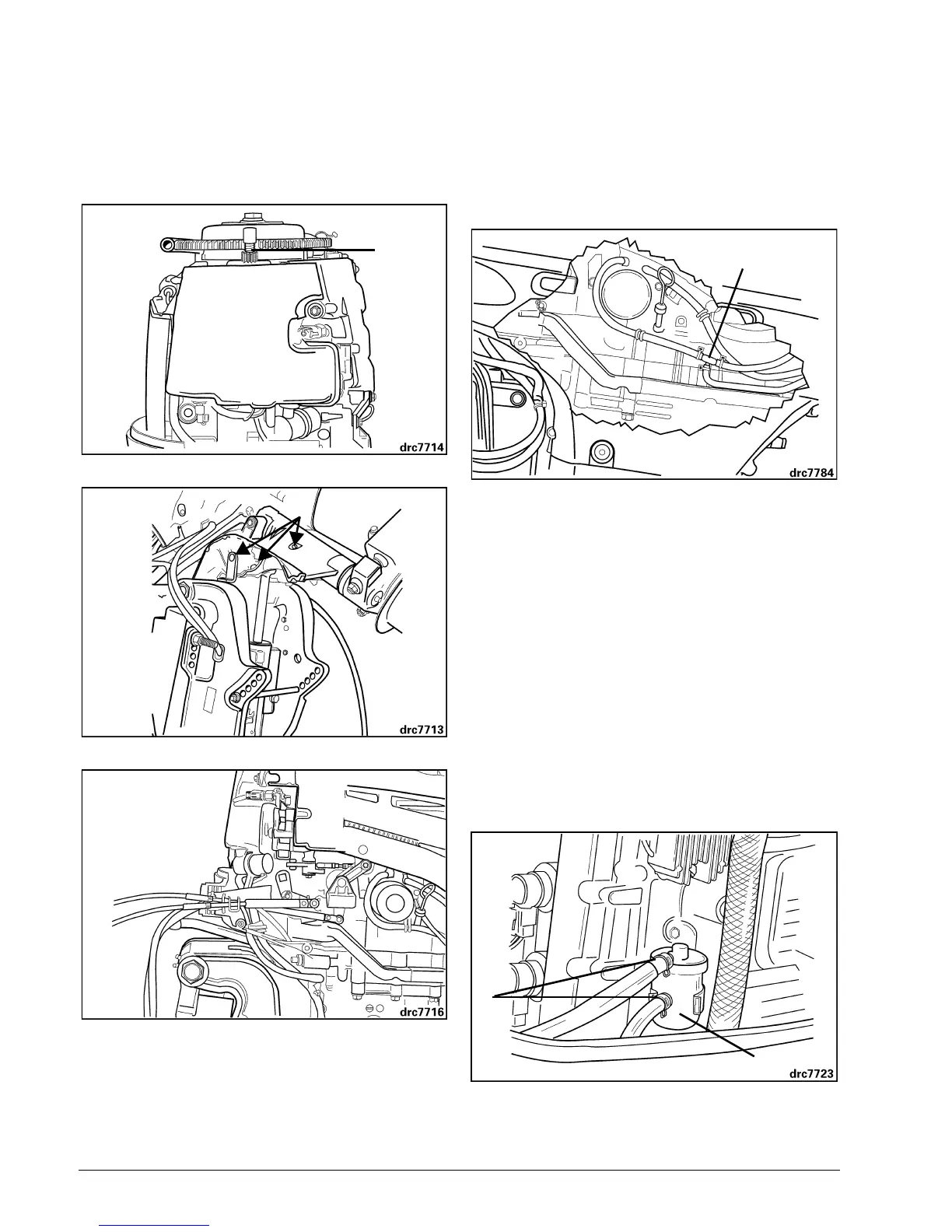

Lubrication Points
Refer to Engine Maintenance and Inspection
Schedule for lubrication frequency and recom-
mended lubricant.
1. Starter pinion shaft
1. Swivel bracket, tilt support
1. Throttle and shift linkage
WATER PRESSURE
An optional water pressure gauge is recommended
to monitor cooling system pressures. Noticing
changes in water pressure can help prevent engine
overheating. The water pressure gauge must be
connected at the correct point to ensure the most
accurate pressure readings. Follow the installation
instructions included with the water pressure
gauge:
1. Water pressure gauge (optional)
FUEL LINE FILTER
It is recommended a water-separating fuel filter be
installed to help prevent water that may be present
in the outboard’s fuel tank. Water in the fuel tank
can damage your outboard’s fuel injection system,
causing poor engine performance. Refer to Engine
Maintenance and Inspection Schedule for in-
spection and service frequency.
An authorized
Evinrude/Johnson
Dealer should
service the fuel filter.
IMPORTANT: A restricted fuel delivery system will
not allow the engine fuel pump to deliver sufficient
fuel under all conditions. This can result in loss of
performance and possibly engine damage.
1. Hose clamps
2. Filter
1
1
1
2
