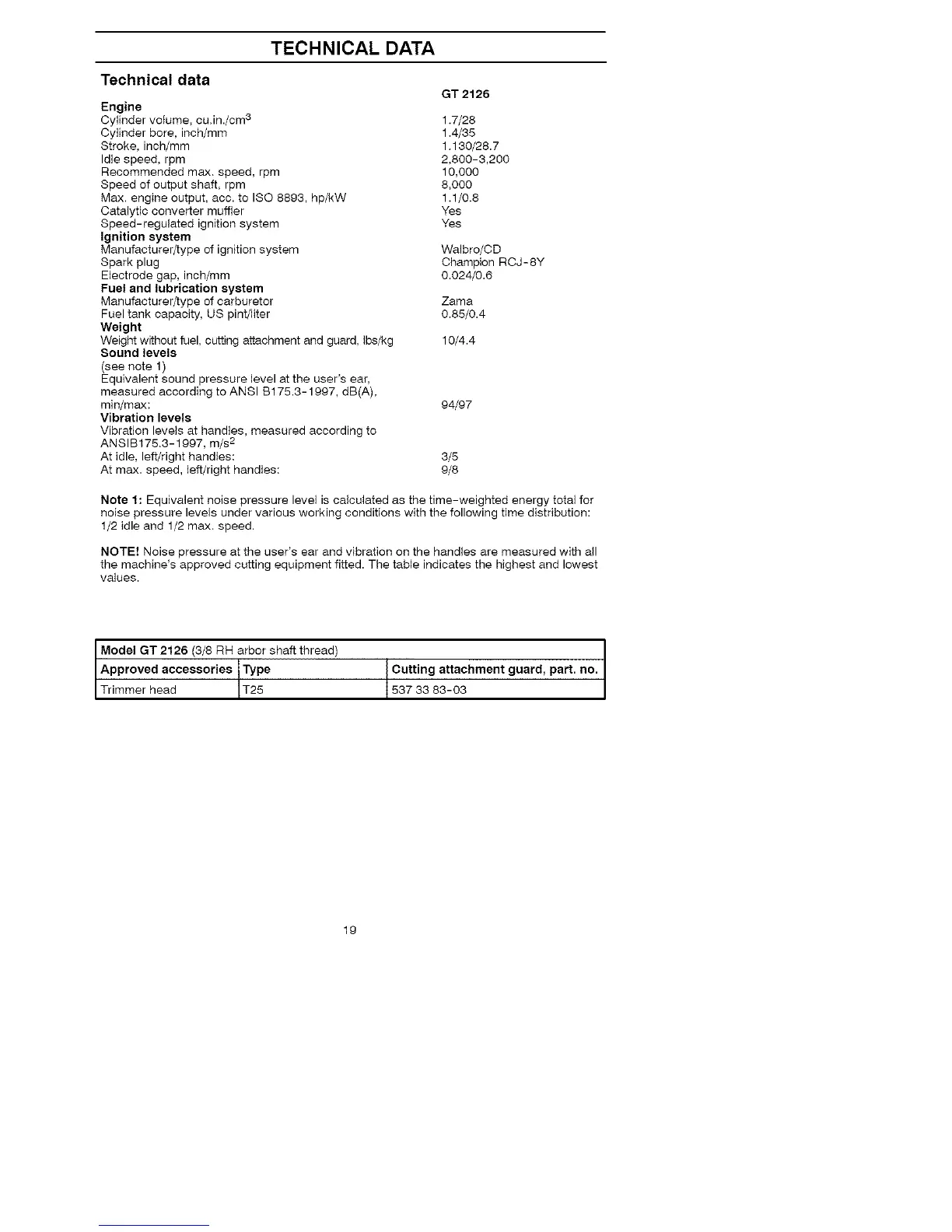

TECHNICAL DATA
Technical data
GT 2126
Engine
Cylh_der volume, cu.in./cm 3 1.7/28
Cylinder bore, inch/mm 1.4/35
Stroke, inch/ram 1.130/28.7
Idle speed, rpm 2,800-3,200
Recommended max. speed, rpm 10,000
Speed of output shaft, rpm 8,000
Max. engine output, acc. to ISO 8893, hp/kW 1.1/0.8
Catalytic converter muffler Yes
Speed-regulated ignition system Yes
Ignition system
Manufacturer/type of ignition system
Spark plug
Electrode gap, inch/mm
Fuel and lubrication system
Manufacturer/type of carburetor Zama
Fuel tank capacity, US pint/liter 0.85/0.4
Weight
Weight without fuel, cutting attachment and guard, Ibs/kg 10/4.4
Sound levels
(see note 1)
Equivalent sound pressure level at the user's ear,
measured according to ANSI B175.3-1997, dB(A),
min/max: 94/97
Vibration levels
Vibration levels at handles, measured according to
ANSIB175.3-1997, m/s 2
At idle, left/right handles: 3/5
At max. speed, left/right handles: 9/8
Walbro/CD
Champion RCJ-8Y
0.024/0.6
Note 1: Equivalent noise pressure level is calculated as the time-weighted energy total for
noise pressure levels under various working conditions with the following time distribution:
1/2 idle and 1/2 max. speed.
NOTE! Noise pressure at the user's ear and vibration on the handles are measured with all
the machine's approved cutting equipment fitted. The table indicates the highest and lowest
values.
Model GT 2126 (3/8 RH arbor shaft thread)
Approved accessories I Type
Trimmer head IT25
Cutting attachment guard, part. no.
537 33 83-03
