ing Up Land Mode
In Step #8, Establishing Flight Modes, flight modes
w
ere programmed to operate from the left front 3-
position switch. To select Land mode, the left 3-position
switch must be moved to the down position. In the main
(info) screen L A ND will appear in the upper portion of
the display when Land mode is selected. When making
programming changes
/
ad
j
ustments in Land mode, this
3-position
switch must remain in the lower position
during the process to allow the results of those
adjustments to be seen on the model.
Step #30 Land P
r
e-se
t
s
The PCM9X II offers a sophisticated program that
allows easy preset trim positions for the elevator, flaps,
flaperons (and even the aileron and rudder if you choose).
The system can remain active in flight allowing you to fine
trim presets in each flight mode or can be locked in so
they cannot be altered in flight. Flight mode presets are
automatically selected via the flight mode
switch and are adjusted with the digital elevator trim,
the digital flap trim and the digital auxiliary trim
(flaperon). While the presets are adjusted via the digital
trims,
their positions are recorded in the servo monitor.
To

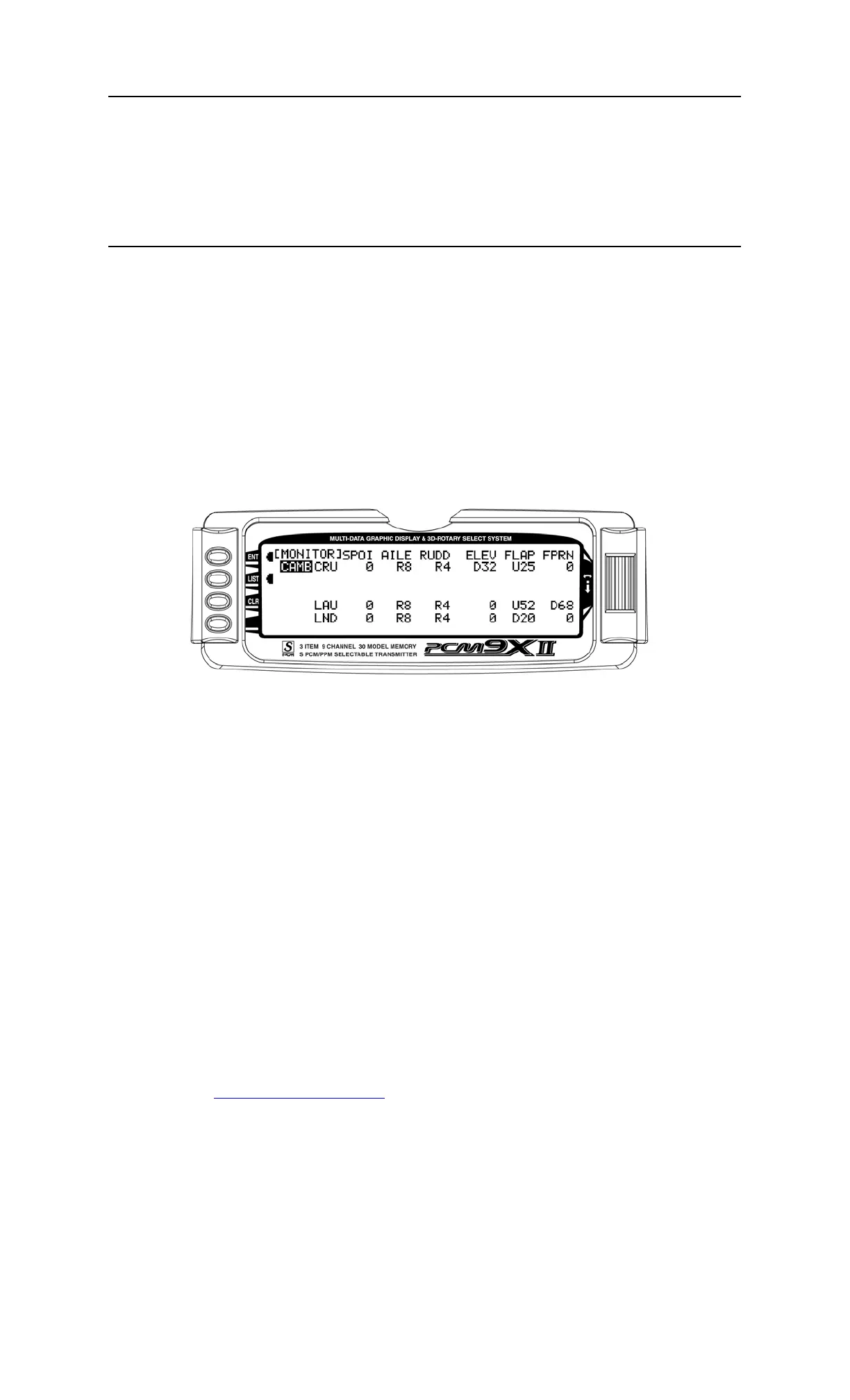

access the servo monitor, in FUNC. L IST rotate the
Selector until MONITOR is highlighted. Press the
Selector to access the Monitor menu then press the
Selector again to access the camber digital preset
screen. To adjust the presets, move the flight mode
switch to the land mode (down) position. Adjust the
preset positions via the flap trim, auxiliary trim and
elevator trim on the transmitter. The values will be
displayed in the screen and then will be memorized for
that flight mode. If you wish to have these preset values
be fixed (not active in flight) once the values are
established, return to the Trim Step screen in the system
mode and reduce the value of the desired channel to 0.
The preset values for all flight modes will be stored and
no longer accessible with the digital
trims.
Sail
p
lane P
r
o
g
r
ammin
g
Guide 22
