Step #13
T
ravel
A
d
j
ust

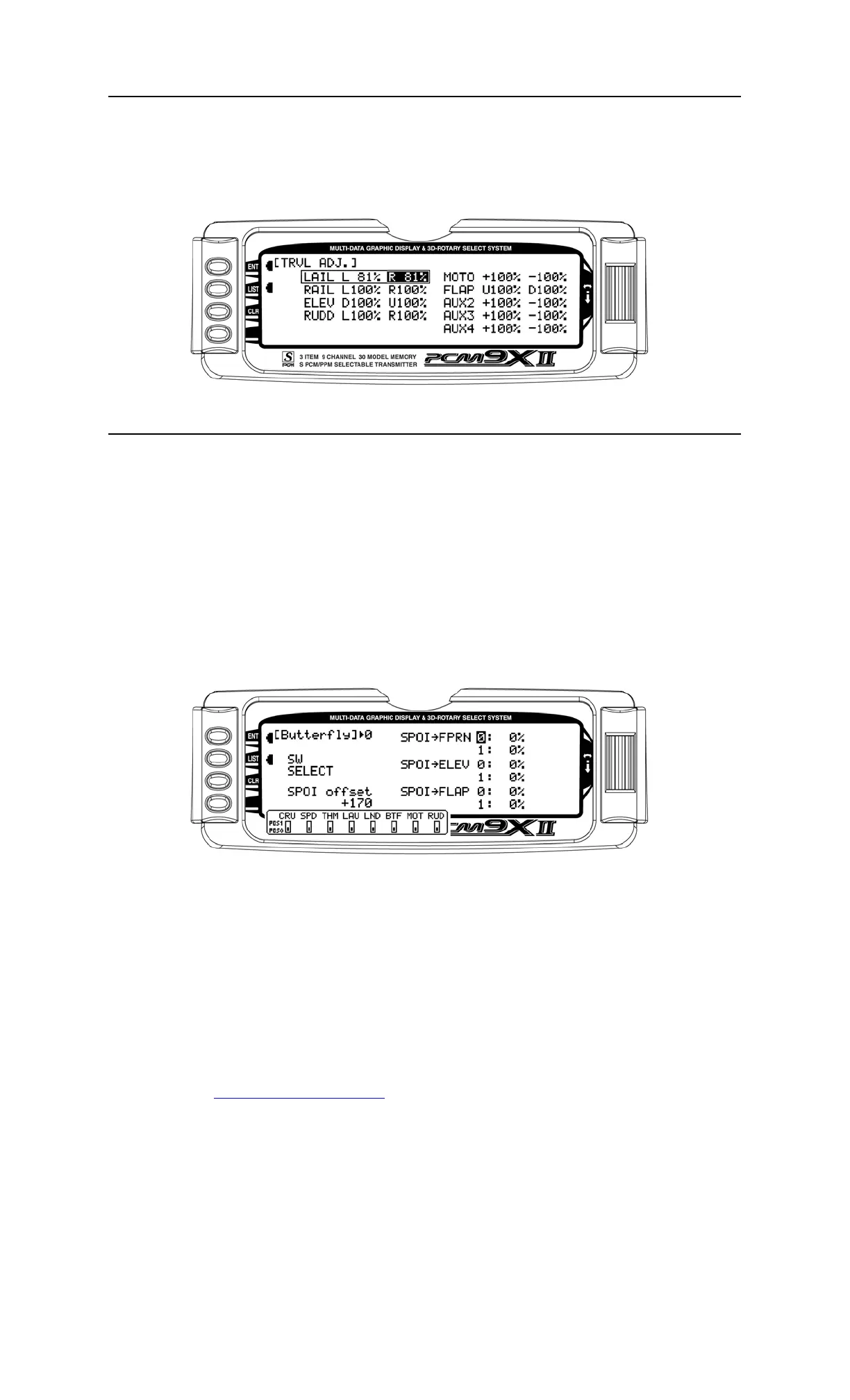

In FUNC. L IST rotate the Selector until TRV L A D J is
highlighted. Press the Selector to access the Travel
A
djust menu. Rotate the Selector to highlight the
desired channel then press the Selector to change the
sub trim value of the selected channel. Moving the
applicable control stick or switch changes the direction
in which the travel adjustment is made (right/ left,
up/down). Set the travel adjust for all functions except
flaps at this time. Press the LIST button to return to the
Function Mode screen.
Step #14 Bu
t
te
r
f
ly (Landing Flaps)
In FUNC. L IST rotate the Selector until B u tt e r f l y is
highlighted. Press the Selector to access the Butterfly
menu. Note the default setting for offset is at +170%.
With this setting, the flap‘s neutral position (trailing edge
level) occurs when the spoiler stick is in the full up
position. Rotate the Selector to highlight SW s e l e c t and
press the Selector to access the available switches.
Rotate the Selector and select the B TF switch and press
the Selector to move the switch to P os 0. Be sure all
switches in this screen are set at zero. This is necessary
to allow the Butterfly function to always be on. Rotate the
Selector to highlight SPOI ⁄ F L A P 0 then depress the
Selector to access the spoiler-to-flap value. Move the
spoiler stick to the full down position and
adjust the value by rotating the Selector until the
desired down flap position is achieved. Press the
Selector to store the flap value then rotate the Selector
to access the SPOI ⁄ FPRN 0 function. Depress the
Selector to access this value and with the spoiler stick in
the low position, adjust the flaperons (ailerons as flaps)
to the desired position. You may wish to adjust the
SPOI ⁄ E L EV at this time, however, there is a curve mix
in P-mix 1 that will allow several points on a curve to be
adjusted for flap-to-elevator mixing that we will be
covering in Step #15 below. Press the LIST button to
return to the Function Mode screen.
9 Sail
p
lane P
r
o
g
r
ammin
g
Guide
