JR PCM9X II Programming

www.modelflight.com.au – World’s best source of JR products
Step #1 Se
r
vo
A
ssignment
Channel Assignment
I m po r t a n t : In glider mode, the channel assignment
(servo lead positions in the receiver) of the PCM9X II is
different than previous JR radios. This new channel
assignment has two important advantages:
• It allows a 6-channel receiver to be used to control the
6 functions commonly found on full function
Sailplanes.
• It locates commonly mixed channels, like right and left
ailerons, right and left flaps, rudder and elevator for
(V-tail), next to each other in the data stream

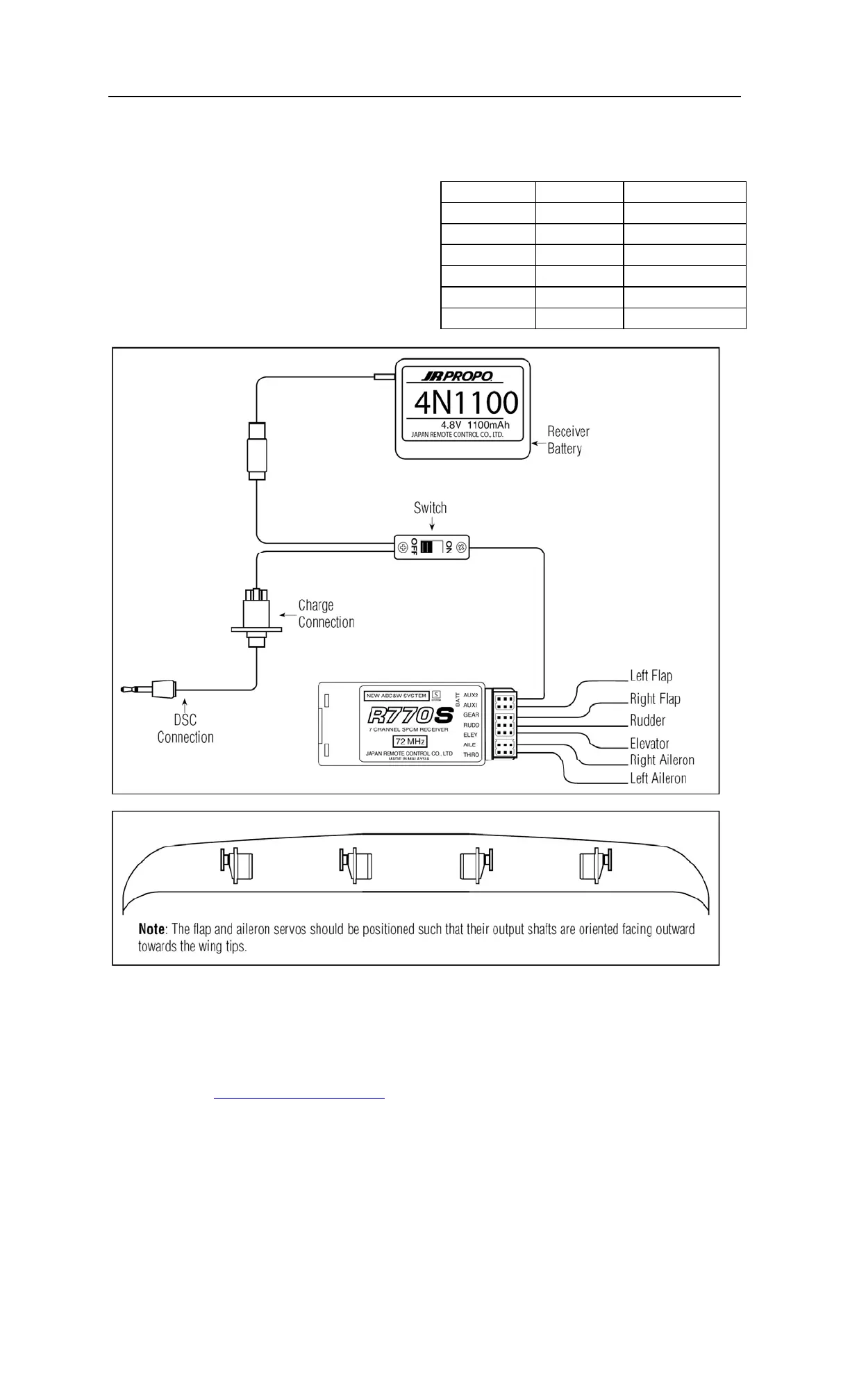

minimizing synchronizing delay issues. Install the
servos in the correct location in the receiver per the
chart and illustration below.
Se r vo C h a nn e l # Re c e i v e r P os i t i on
Left Aileron 1 Throttle
Right Aileron 2 Aileron
Elevator 3 Elevator
Rudder 4 Rudder
Right Flap 5 Gear
Left Flap 6 Flap/ Aux. 1
3 Sail
p
lane P
r
o
g
r
ammin
g
Guide
