Sailplane Section 14
D/R & EXP – Dual Rate and Exponential
Three dual and exponential rates are available and are
selectable via flight modes or selected switches. Dual
and Expo rates are independently adjustable in each
direction by moving the appropriate stick in the desired
direction. For an in-depth description of D/R and
Exponential, please refer to the Dual Rates and
Exponential Curves article in the General Section of this
manual.

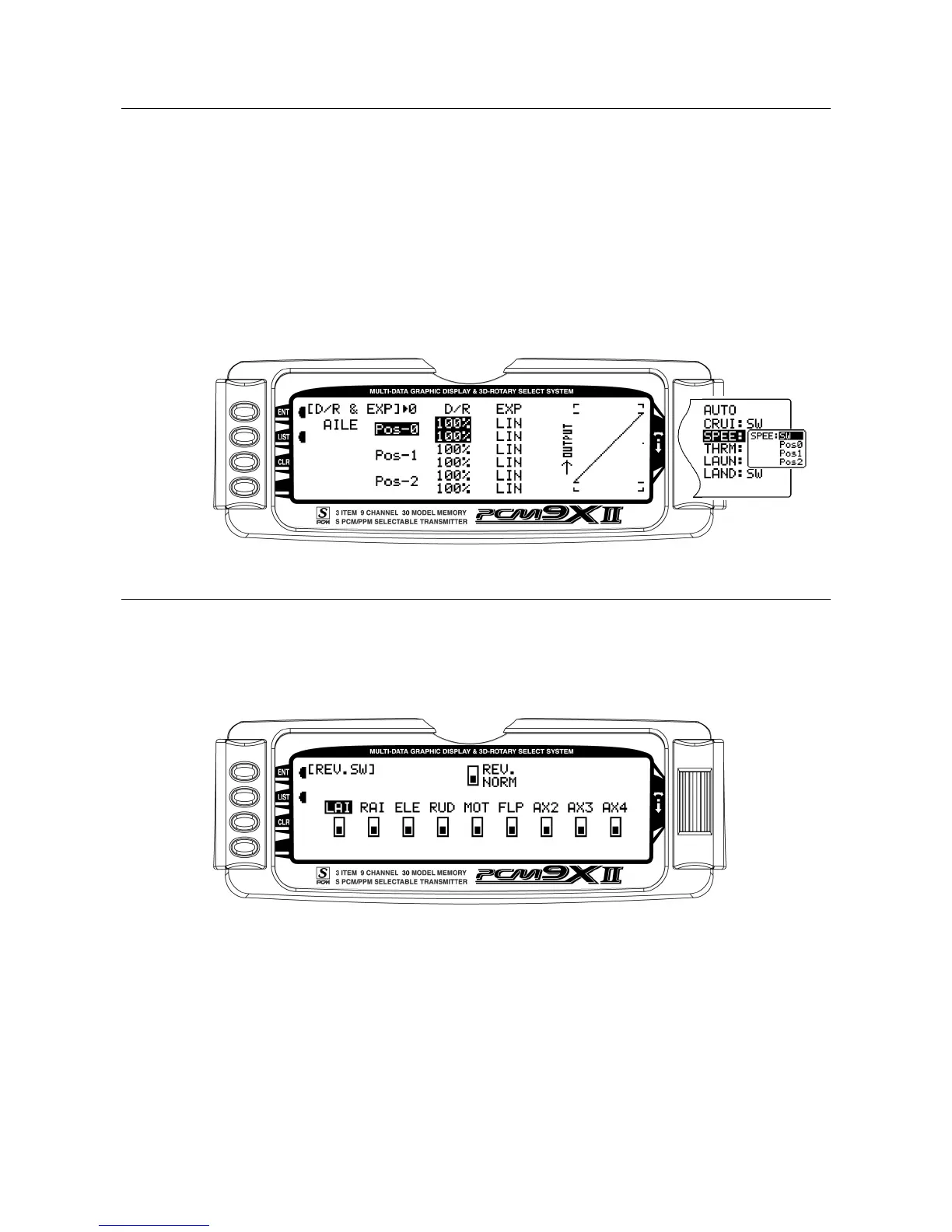

1. Highlight and select D/R & EXP in te
FUNC.LIST to obtain the D/R & EXP display. If
Flight Modes were activated earlier in the
Devic.SEL function and D/R was set to FM in
the same function, there will be 3 sets of
values displayed for each channel – Aileron,
Elevator and Rudder.
2. Use the Selector to change between Aileron,
Elevator and Rudder. Then use it to set dual
rate and exponential values.
3. You may also assign a dual rate setting to a
flight mode using the automatic switching
function, which is accessed by scrolling the
cursor to the right.
REV.SW – Servo Reversing
The servo reverse screen allow the direction of each
servo to be selected.
1. Highlight and select REV.SW in the FUNC.LIST to
obtain the servo reversing display.
2. Use the Selector to highlight and select those
channels that need to be reversed. Pressing the
Selector toggles the channel between Normal and
Reverse.
Note: Channel labels may vary due to channel
assignments, eg. RUD = RFL and MOT = LFL
