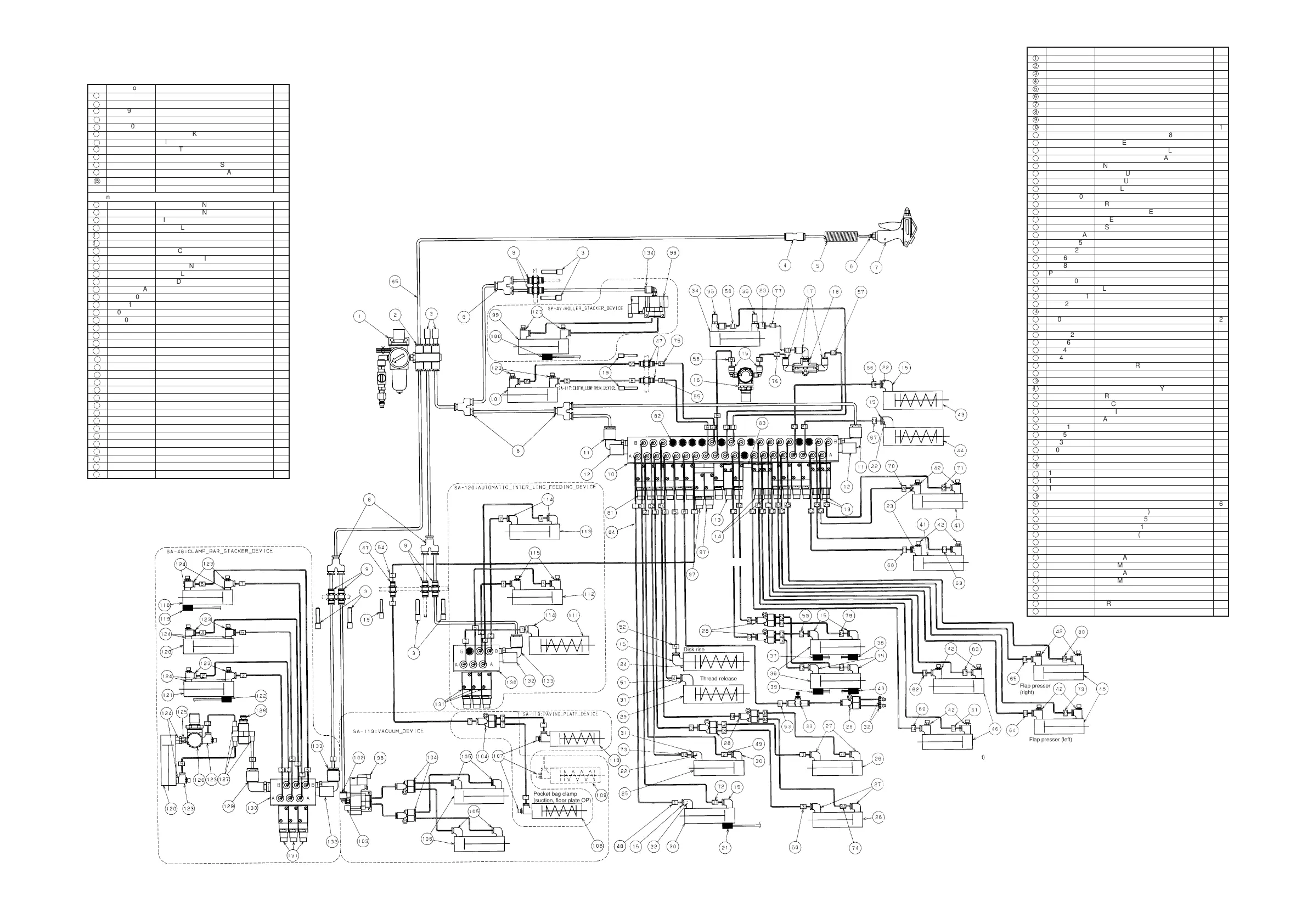

11. Air circuit diagram
– 202 –
No. Part No. Part Name Q’ty
1 G56042540A0 FILTER REGULATER ASM 1
2 PJ309065201 TRIPLE_BRANCH_UNIVERSAL_ELBOW 1
3 PX950001000 PLUG 8
4 PJ303060001 STARAIGHT_UNION 1
5 G5458116000 CURLED_TUBE 1
6 PJ301065201 HALF UNION 6XPT1/4 1
7 40044823 AIR_GUN 1
8 PJ308060003 Y_UNION 5
9 PJ230006200 UNION 6
0 40035097 MANIFOLD_VALVE_ASSY 1
! PJ304065101 ELBOW UNION 6XPT1/8 2
@ PX055104000 SILENCER 4
# PV150106000 5-PORT SOLENOID VALVE 3
$ PV150105000 5-PORT SOLENOID VALVE 2
% PJ304040504 UNION 11
^ PF0205010C0 AIR REGULATOR 1
& PJ304045102 ELBOW UNION C 3
* PV205101000 SHUTTLE VALVE 1
( PX500014000 PLUG 4 3
) PA1602012A0 AIR CYKUBDER 1
q 40044626 AIRCYLINDER SENSOR CN79A 1
w PC022403F00 INSERT RING 0.6 4
e PC022403E00 INSERT RING 0.5 3
r PA1000512A0 AIR CYLINDER 1
t PA1604005B0 AIR CYLINDER 1
y PA1001521A0 AIR CYLINDER 2
u PJ046052503 HOSE ELBOW 4
i PJ308040002 QUICK JOINT 5
o PA1002506A0 CYLINDER 1
p PJ304040501 ELBOW UNION 4XM5 1
a PJ304040506 ELBOW UNION 4XM5 (0.8) 2
s PJ032039001 URETHANE BARBED JOINT 2
d PC012406000 SPEED CONTROLLER 1
f PA2005016A0 AIR CYLINDER 1
g PC010523000 SPEED CONTROLLER 2
h PA1610004B0 AIR CYLINDER 2
j 40044627 AIR CYLINDER SENSOR CN79B 1
k 40044628 AIR CYLINDER SENSOR CN80B 1
l 40044629 AIR CYLINDER SENSOR CN81B 1
; 40044630 AIR CYLINDER SENSOR CN82B 1
z PA2001701A0 AIR CLINDER 2
x PC010508000 SPEED CONTROLLER 12
c 40044841 FOLDING_PLATE_CYLINDER_L 1
v 40035101 FOLDING_PLATE_CYLINDER_R 1
b PA1202501A0 AIR CYLINDER 2
n PA1603503A0 AIR CYLINDER 2
m PJ230004200 PARTITION UNION 3
, 18035006 CABLE MARK NO. 1 2
. 18035105 WIRE MARK (2) 2
/ 18035204 WIRE MARK (3) 6
¡ 18035303 WIRE MARK (4) 2
™ 18035402 WIRE MARK (5) 2
£ 18035501 WIRE MARK (6) 2
¢ 18035600 WIRE MARK (7) 4
18035709 WIRE MARK (8) 2
§ 18035808 WIRE MARK (9) 2
¶ 18035907 WIRE MARK (10) 2
• 18036004 WIRE MARK (11) 2
ª 18036103 WIRE MARK (12) 6
º 18036301 WIRE MARK (14) 2
⁄ 18036400 WIRE MARK (15) 2
¤ 18036509 WIRE MARK (16) 2
‹ 18036608 WIRE MARK (17) 2
› 18036707 WIRE MARK (18) 2
fi 18036806 WIRE MARK (19) 2
fl 18036905 WIRE MARK (20) 2
‡ 18037002 WIRE MARK (21) 2
18037101 WIRE MARK (22) 2
· 18037200 WIRE MARK (23) 2
‚ 18037309 WIRE MARK (24) 2
Π18037408 WIRE MARK (25) 2
„ 18038000 WIRE MARK (31) 2
‰ 18038109 WIRE MARK (32) 2
No. Part No. Part Name Q’ty
 18038307 WIRE MARK (34) 6
18038802 WIRE MARK (39) 2
Á 18038901 WIRE MARK (40) 2
18039008 WIRE MARK (41) 2
18039107 WIRE MARK (42) 6
Ø 18039305 WIRE MARK (44) 2
18039404 WIRE MARK (45) 2
Å PV150104000 5-PORT SOKENOID VALVE 12
Í 40044631 PLUG 4 9
Î PV920004000 BLANKING PLATE ASSY 3
Ï BT0400251EB URETHANE HUSE, BLACK
BT0600400EC TUBE HOSE, BLUE
Option
˜ PV150104000 5-PORT SOLENOID VALVE 2
¯ PV1502060B0 5-PORT SOLENOID VALVE 2
˘ PA2001006A0 AIR CYLINDER 1
` 40044632 AIR CYLINDER SENSOR CN284 1
1 PA1609501A0 AIR CYLINDER 1
2 PJ304060502 ELBOW UNION 6XM5 1
3 PX050501000 SILENCER 2
4 PJ308040002 QUICK COUPLING 3
5 PJ304040506 ELBOW UNION 4
6 PA160100500 AIR CYLINDER 2
7 PC010507000 SPEED CONTROLLER 2
8 PA1500505A0 AIR CYLINDER 1
9 PA1501007A0 AIR CYLINDER 1
0 PA160152900 AIR CYLINDER 1
! PA0600505A0 AIR CYLINDER 1
@ PA1001017A0 AIR CYLINDER 1
# PA1600802A0 AIR CYLINDER 1
$ PJ304040504 ELBOW UNION 3
% PC010508000 SPEED CONTROLLER 2
* PA2505004A0 AIR CYLINDER 1
40044631 AIR CYLINDER SENSOR CN283 1
PA2511001A0 CYLINDER (S=110) 2
PA2016001A0 AIR CYLINDER 1
40044631 AIR CYLINDER SENSOR CN283 1
PC015108000 SPEED CONTROLLER 12
PJ015105001 BUSHING 8
PJ030050001 UNIVERSAL NIPPLE 1
PF0205010A0 AIR REGULATOR 1
PJ046052503 HOSE ELBOW 3
PV010502000 AIR VALVE 1
PJ304045102 ELBOW UNION C 1
PV035161000 MANIFOLD VALVE 2
PV150104000 5-PORT SOLENOID VALVE 6
PX055104000 SILENCER 4
PJ304065101 ELBOW UNION 6XPT 1/8 2
PJ304040505 ELBOW 1
75
77
78
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
80
55
68
1st clamp (OP)
2st clamp (OP)
Material wiper (OP)
Clamp base (OP)
Roller stacker (OP)
Binder
Darts extension (OP)
Folding plate (left)
Folding plate (right)
Clamp foot elevator
(right)
Clamp foot elevator (left)
For darts extension
For suction unit
and bottom plate
Interlining
cut (OP)
Interlining
feed (OP)
Interlining roller release (OP)
Interlining presser
(bottom plate OP)
Interlining presser
(suction OP)
Suction unit (OP)
Needle thread trimmer
Center knife
Bobbin thread
trimmer
Bobbin
thread
trimmer
Corner knife
(Counter)
Corner knife
(Moving)
Bobbin air blow
Garment body clamp (right)
Garment body clamp (left)
Flap presser (left)
Flap presser
(right)
Disk rise
Thread release
Pocket bag clamp
(suction, floor plate OP)
85
