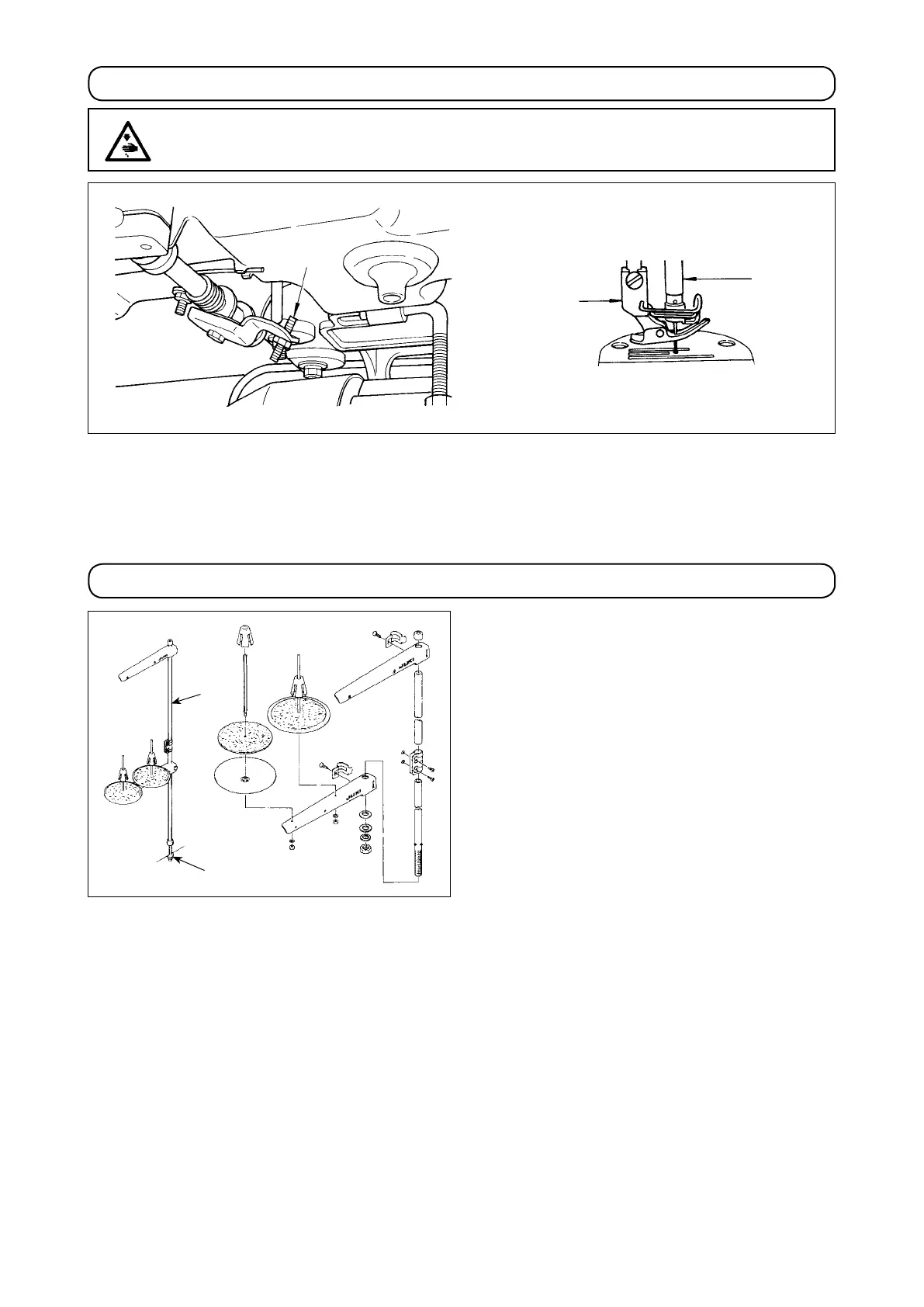

1) The standard height of the presser foot lifted using the knee lifter is 10 mm.
2) You can adjust the presser foot lift up to 13 mm using knee lifter adjust screw
1
.
3) When you have adjusted the presser foot lift to over 10 mm, be sure that the bottom end of needle bar
2
in its lowest position does not hit presser foot
3
.
4. ADJUSTING THE HEIGHT OF THE KNEE LIFTER
5. INSTALLING THE THREAD STAND
1) Assemble the thread stand unit as illustrated in
the gure shown on the left, and insert it in the
hole in the machine table.
2) Tighten locknut
1
enough to x the thread stand.
3) For ceiling wiring, pass the power cord through
spool rest rod
2
.
WARNING :
To avoid possible personal injury due to abrupt start of the machine, turn off the power to the
machine and check to be sure that the motor has totally stopped rotating in prior.
2
1
1
2
3
