Needle to be purchased
When purchasing spare needles,
specify HAx1 (130/705H) for
household sewing machine or
HAx1SP (needle for knits).
The larger the number,
the thicker the needle.
Level plate
Parallel
Checking the needle
* Check the needle for its
straightness occasionally.
Any bent needle would
cause stitch skipping,
thread breakage or damage
to materials.
Needle size

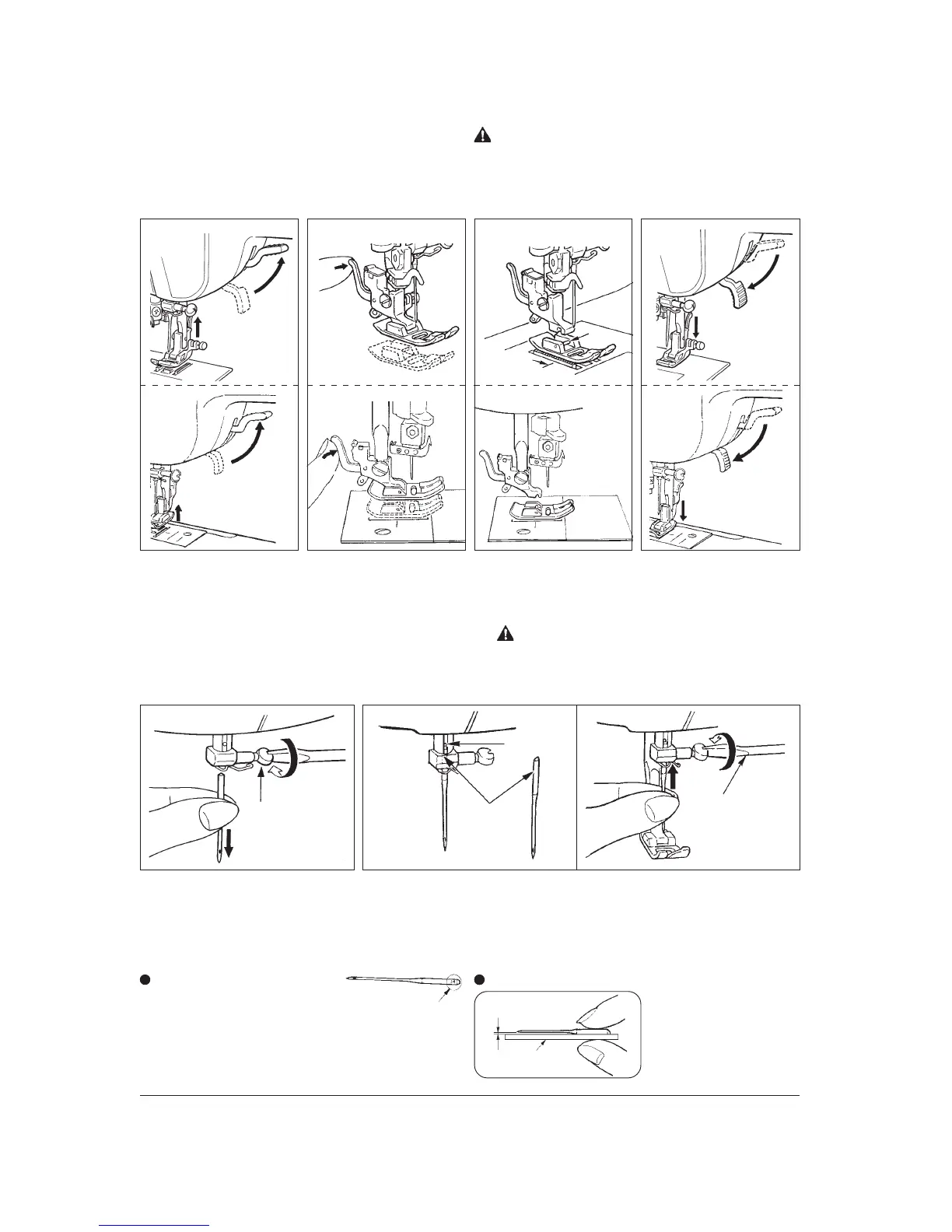

Changing The Presser Feet
2. Push the presser foot
release lever.
1. Raise the presser foot.
3. Align the presser foot
pin with the marker line on
needle plate.
Marker line
Pin
How To Remove And Insert The Needle
(1) Turn the handwheel toward you to until
the needle bar reaches its highest
position.
(2) Loosen the needle clamp screw.
Securely tighten the needle clamp screw,
using the screwdriver furnished with the
machine.
The flat
part should
face away
from you.
Stopper pin
Hold the needle with its flat part facing
away from you, and insert it fully until it
touches the stopper pin.
Push
4. Lower the presser foot.
11
Screwdriver
Needle clamp
screw
HZL-30Z
HZL-60
HZL-30Z
HZL-60
HZL-30Z
HZL-60
HZL-30Z
HZL-60
1. Removing the needle.
2. Attaching the needle.
(The needle cannot be inserted unless it is correctly positioned.)
Make sure to disconnect plug from wall
outlet before inserting needle.
CAUTION:
Make sure to disconnect the plug from the wall
outlet before changing the presser foot.
CAUTION:
To Next Page
