- 4
2) Fixing the X-axis Rail (Fixing the Head Bracket)
q Move the head bracket (whole head unit) on the X-axis to the left side of the unit.
w Move the head bracket (whole head unit) completely to the left side to push it
against the rubber stopper. Then, fix the X-axis stopper at two M3 taps located
on the bottom of the X-axis frame with the shammy cap SL6030842TN from the
bottom.
e Attach the set-up caution tag onto the X-axis stopper.

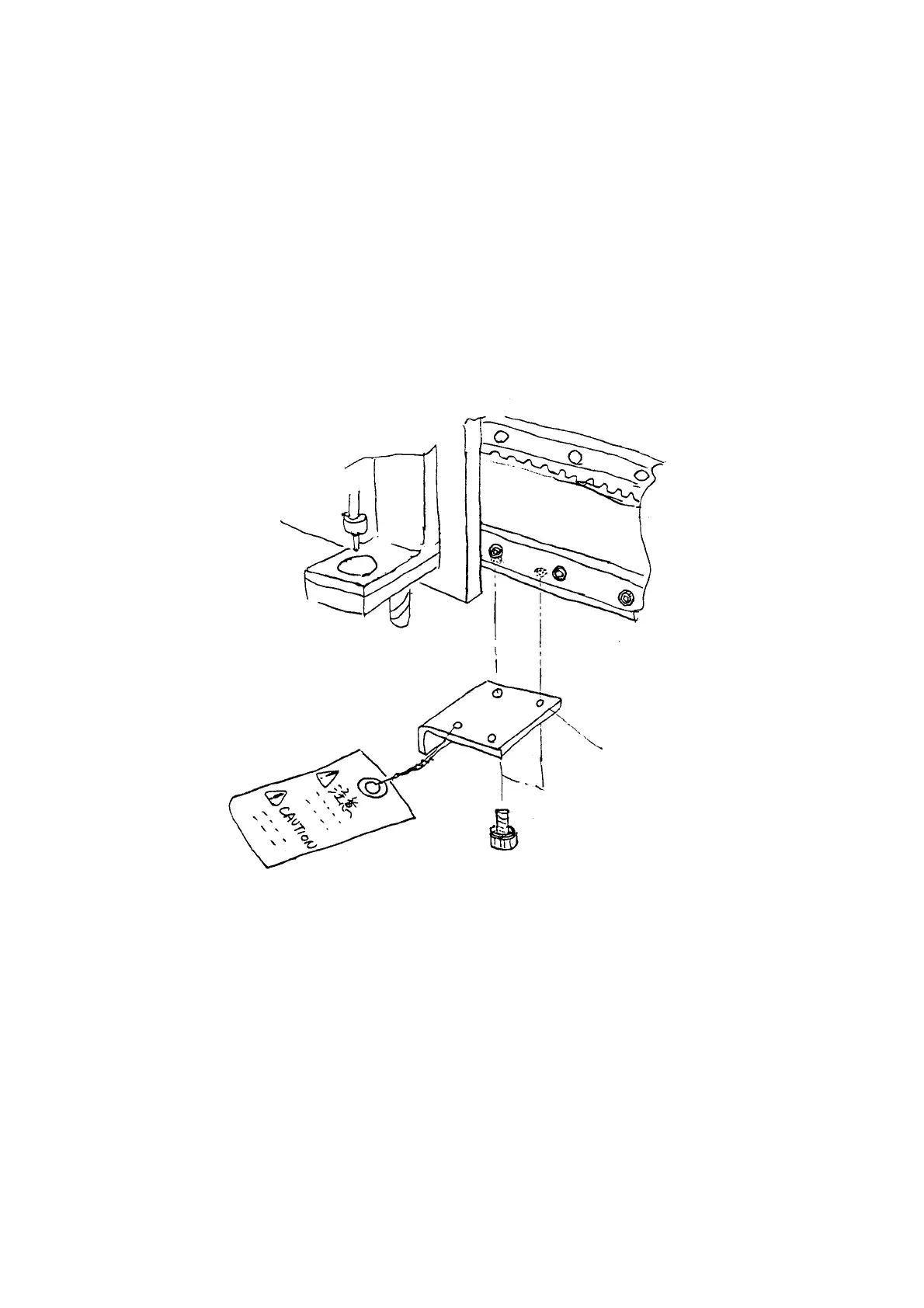

Figure 2.2
2 x ( M3 x l8) + (M3 Spring washer)
(SL6030842TN = Shammy cap)
X-axis stopper
(E5001715000)
To Next Page
