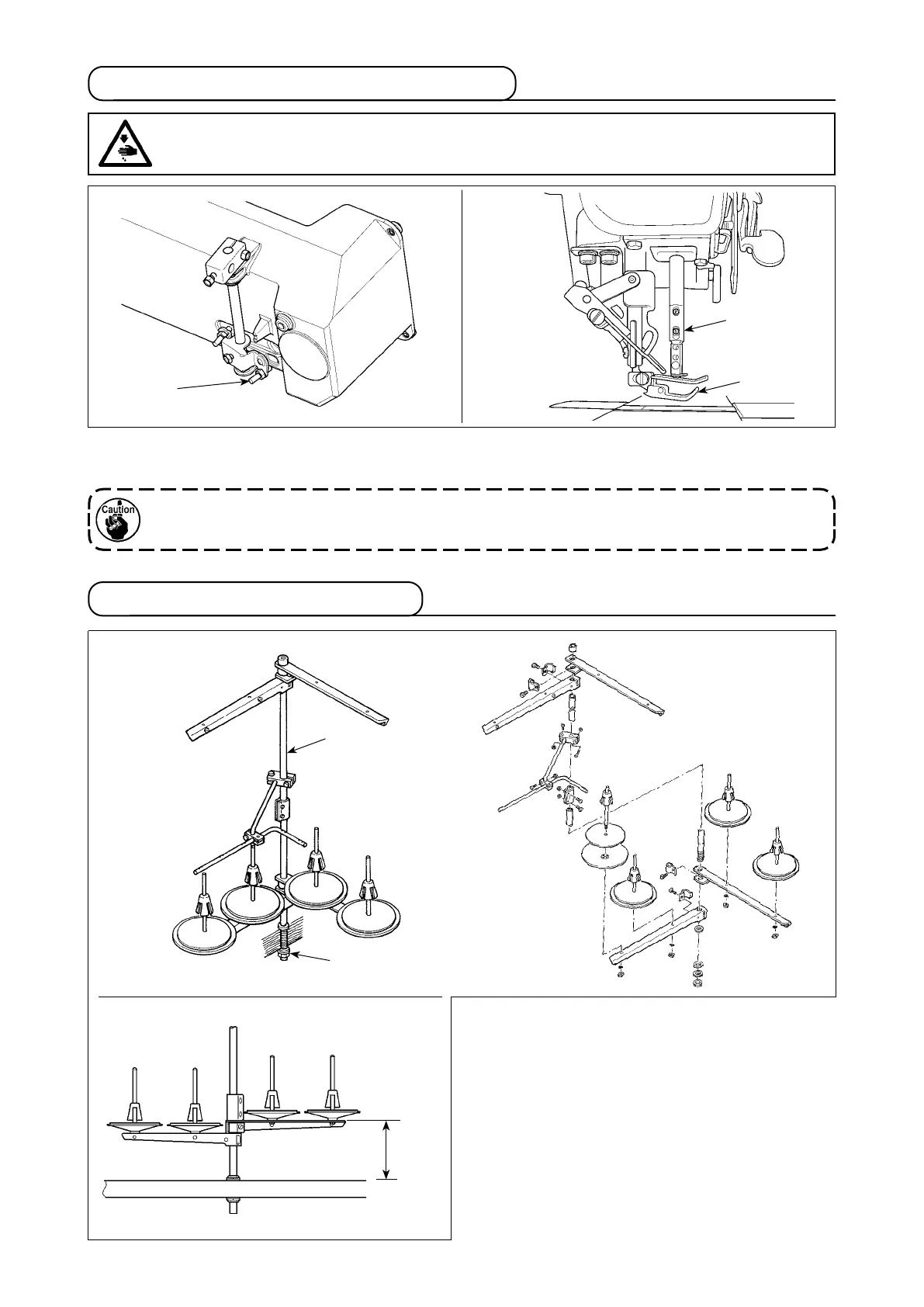

3-3. Adjusting the height of the knee lifter
1) The standard height of the presser foot lifted using the knee lifter is 12 mm.
2) You can adjust the presser foot lift up to 13 mm using knee lifter adjust screw
❶
.
3-4. Installation of thread stand
Assemble the thread stand, set it up on the machine
table using the installation hole in the table and tight-
en nut
❶
gently.
When you use power supplied by the overhead pow-
er line, pass the power supply cord through hollow
spool rest rod
❷
.
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power o and ascertaining that the motor is at rest.
❷
❸
❶
300 mm from the top
surface of table
❷
❶
Do not operate the sewing machine in the state that the presser foot
❸
is lifted by 12 mm or
more since the needle bar
❷
comes in contact with the presser foot
❸
.
