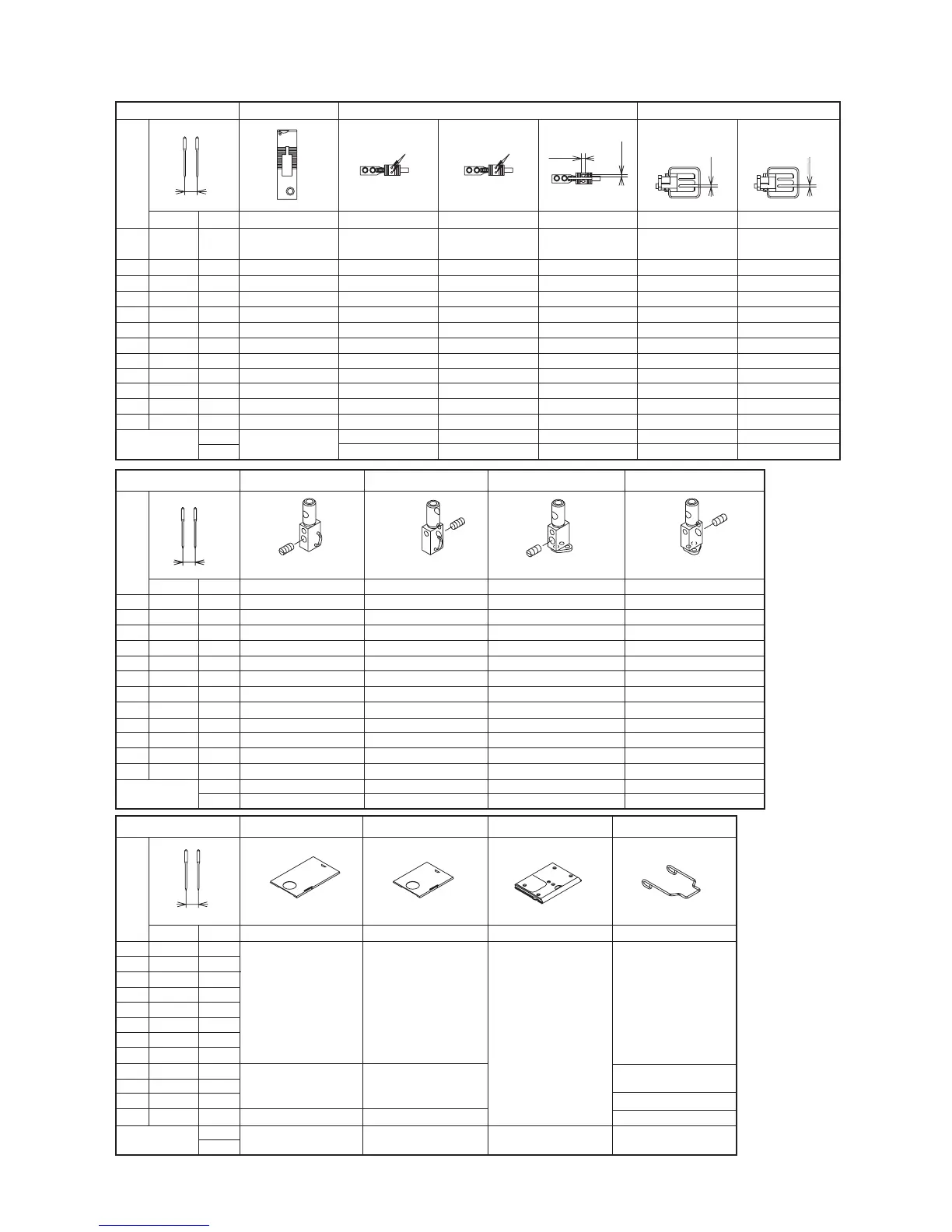

(4) LH-4168-7
Needle gauge size Throat plate Feed dog Presser foot asm.
inch mm Part No. Part No. Part No. Part No. Part No. Part No.
B 1/8 3.2 40035881 40061270 40035890 40053705 40035896
C 5/32 4.0 40025485 40061271 40025817 — 40035897 40071909
D 3/16 4.8 40025490 40061272 40025818 40025831 22640353 22816557
E 7/32 5.6 40025491 40061273 40025819 40025832 22640452 22816656
F 1/4 6.4 40025492 40061274 40026715 40025833 22640551 22816755
G 9/32 7.1 40025493 40061275 40025820 40025834 22640759 22816854
H 5/16 7.9 40025494 40061276 40025821 40025835 22640858 22816953
K 3/8 9.5 40025495 40061277 40025822 40025836 22640957 22817050
L 1/2 12.7 40025498 40061278 40025824 40025838 22641252 22817159
M 5/8 15.9 40025499 40061279 40025825 40025839 22641351 40033945
N 3/4 19.1 40025500 40061280 40025826 40025840 22641450 40033947
Q125.4 40025503 40061282 40025828 40025842 22641757 40033951
S vv v
G vv
ø1.7
Stitch spec. Spec. common
40035896
(Clearance 2.0mm)
Needle gauge size Needle clamp asm (Left) Needle clamp asm (Right) Needle clamp asm (Left) Needle clamp asm (Right)
inch mm Part No. Part No. Part No. Part No.
B 1/8 3.2 40035877 40035878 B1402526BA0A B1402526BA0A
C 5/32 4.0 40026063 40026084 B1402526CA0A B1402526CA0A
D 3/16 4.8 40026065 40026086 B1402526DALA B1402526DARA
E 7/32 5.6 40026067 40026088 10228559 10228567
F 1/4 6.4 40026069 40026090 B1402526FALA B1402526FARA
G 9/32 7.1 40026070 40026091 B1402526GALA B1402526GARA
H 5/16 7.9 40026072 40026093 B1402526HALA B1402526HARA
K 3/8 9.5 40026074 40026095 B1402526KALA B1402526KARA
L 1/2 12.7 40026076 40026097 B1402526LALA B1402526LARA
M 5/8 15.9 40026078 40026099 10228856 10228864
N 3/4 19.1 40026080 40026101 10228955 10228963
Q125.4 40026082 40026103 10229151 10229169
S vv
G vv
Stitch spec.
Needle gauge size Sliding plate asm. (Left) Sliding plate asm. (Right) Sliding plate asm. (Front) Wiper
inch mm Part No. Part No. Part No. Part No.
B 1/8 3.2
C 5/32 4.0
D 3/16 4.8
E 7/32 5.6
F 1/4 6.4
G 9/32 7.1 40031358
H 5/16 7.9
K 3/8 9.5
L 1/2 12.7
M 5/8 15.9 40025248 40025236
N 3/4 19.1 10209807
Q125.4 40025249 40025239 10209906
S
G
Stitch spec. Spec. common Spec. common Spec. common Spec. common
40025247 40025235 10209203
2.2mm
3.2mm
ø1.9
2.0mm
2.4mm
(Option)
(Wire Type)(Wire Type) (Hole Type)(Hole Type)
(Tip-divided)
(Tip-divided)
10209500
Code
Code
Code
