JUKI LH-4128 - Drawing of the Table

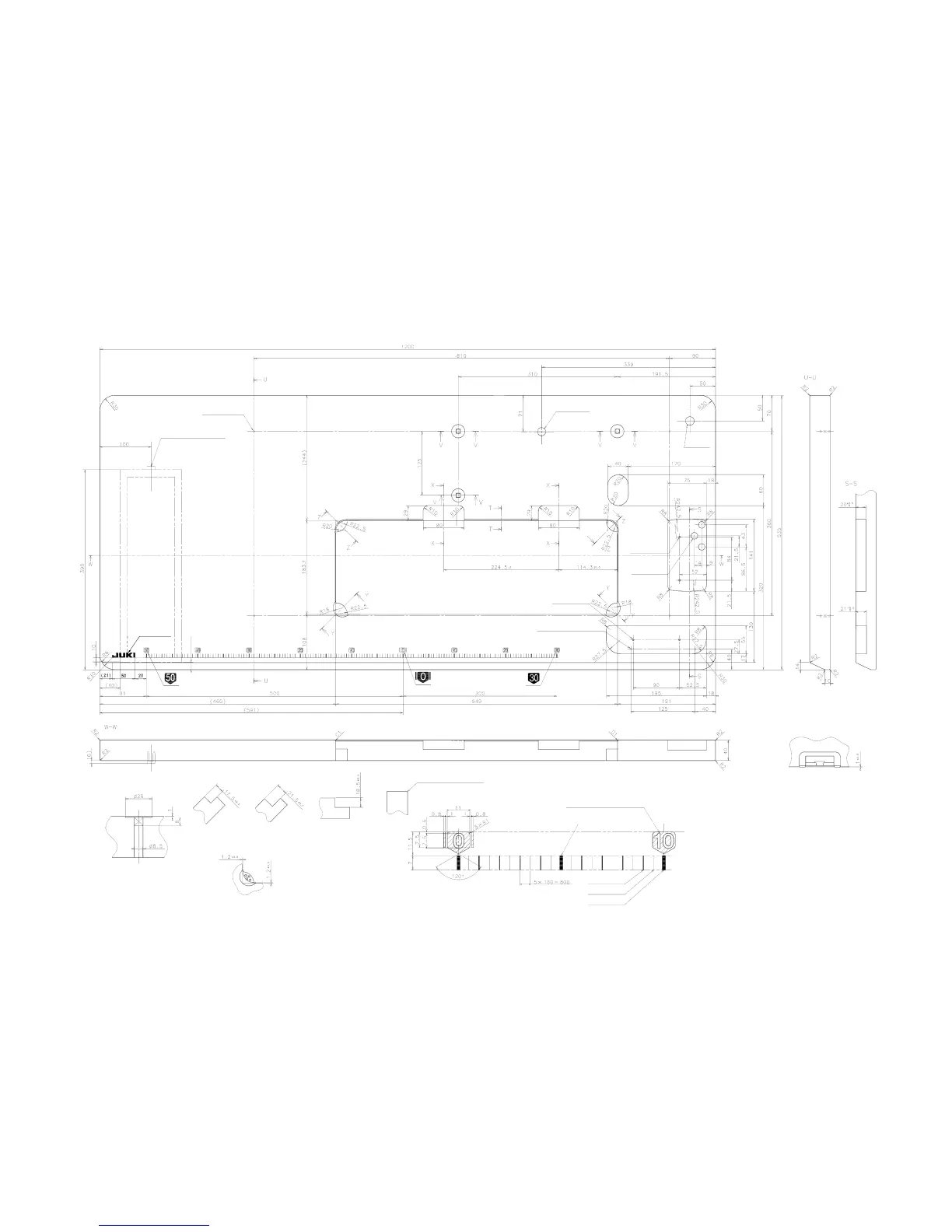

15. Drawing of the table
Part No. : 40026321
– 83–
Drawer stopper installing
position (On the botton surface)
4-ø3.5 on the
bottom surface,
depth 20
ø16 depth 25
ø17 through
hole
2 x ø3.5 depth 10
3 x ø13 through hole
2-ø3.4 on the bottom
surface, depth 10
2 x ø3.5 depth 10
V–V (1:1) (3 pcs.)
Z–Z (2 pcs.) Y–Y (2 pcs.)
X–X (2 pcs.)
T–T
Detail drawing of measure (2:1)
X–X
C1.5 to C2.5 (For hinge side only)
Type: Helvetica Reg Condensed
Thickness 1.5
Thickness 0.8
Thickness 0.5
Thickness 1.5
Y–Y
JUKI rogo type
(15)
