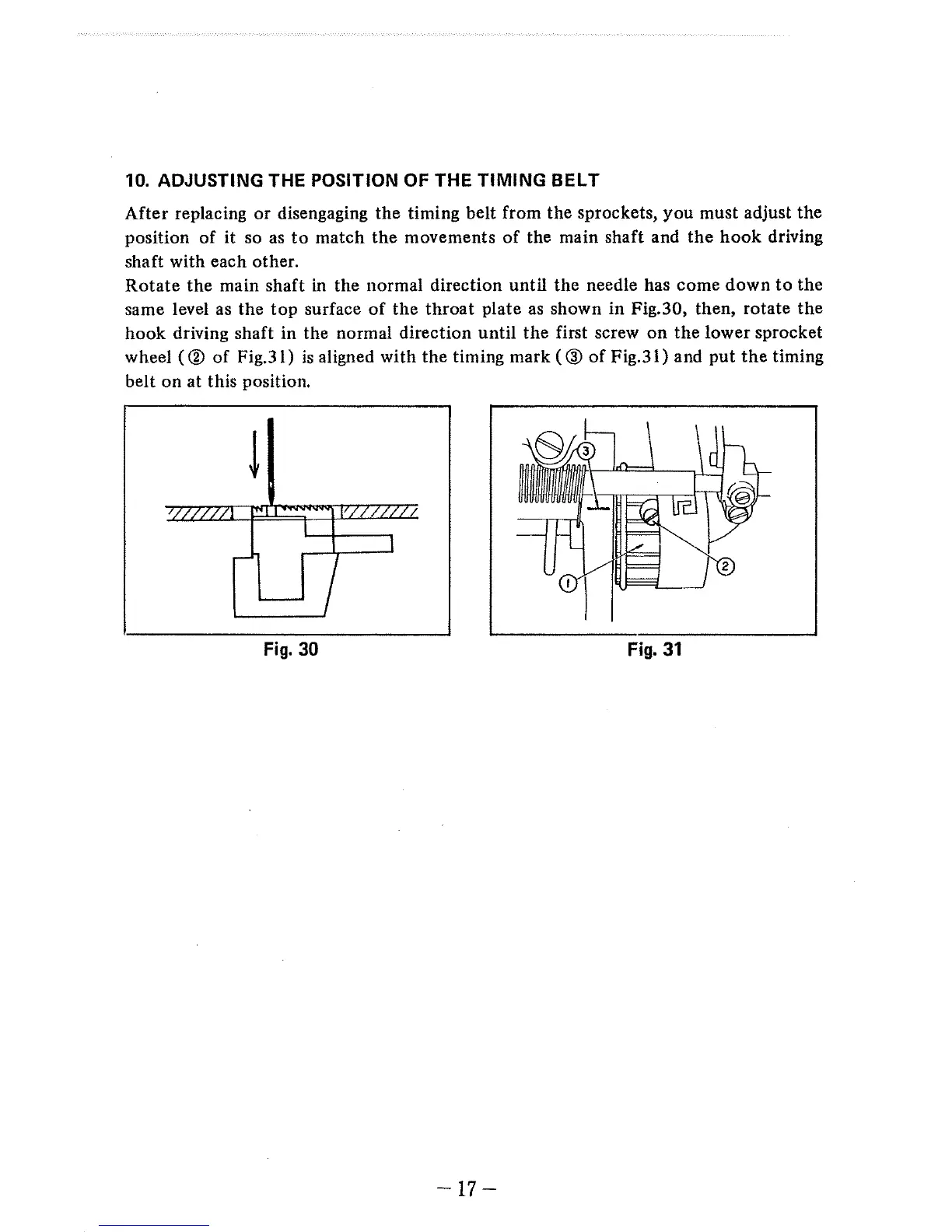

10.
ADJUSTING THE POSITION OF THE TIMING BELT
After
replacing
or
disengaging
the
timing belt from
the
sprockets,
you
must adjust
the
position
of
it so as
to
match
the
movements
of
the main shaft and
the
hook
driving
shaft with each other.
Rotate
the
main shaft in
the
normal direction
until
the
needle has
come
down
to
the
same level as
the
top
surface
of
the
throat
plate as shown
in
Fig.30, then,
rotate
the
hook
driving shaft
in
the
normal direction
until
the
first screw
on
the
lower
sprocket
wheel (
®
of
Fig.31)
is
aligned
with
the
timing mark ( ®
of
Fig.3l)
and
put
the
timing
belt
on
at this position.
Fig.
30
Fig.
31
-17-
