60
–
Standard adjustment
28.

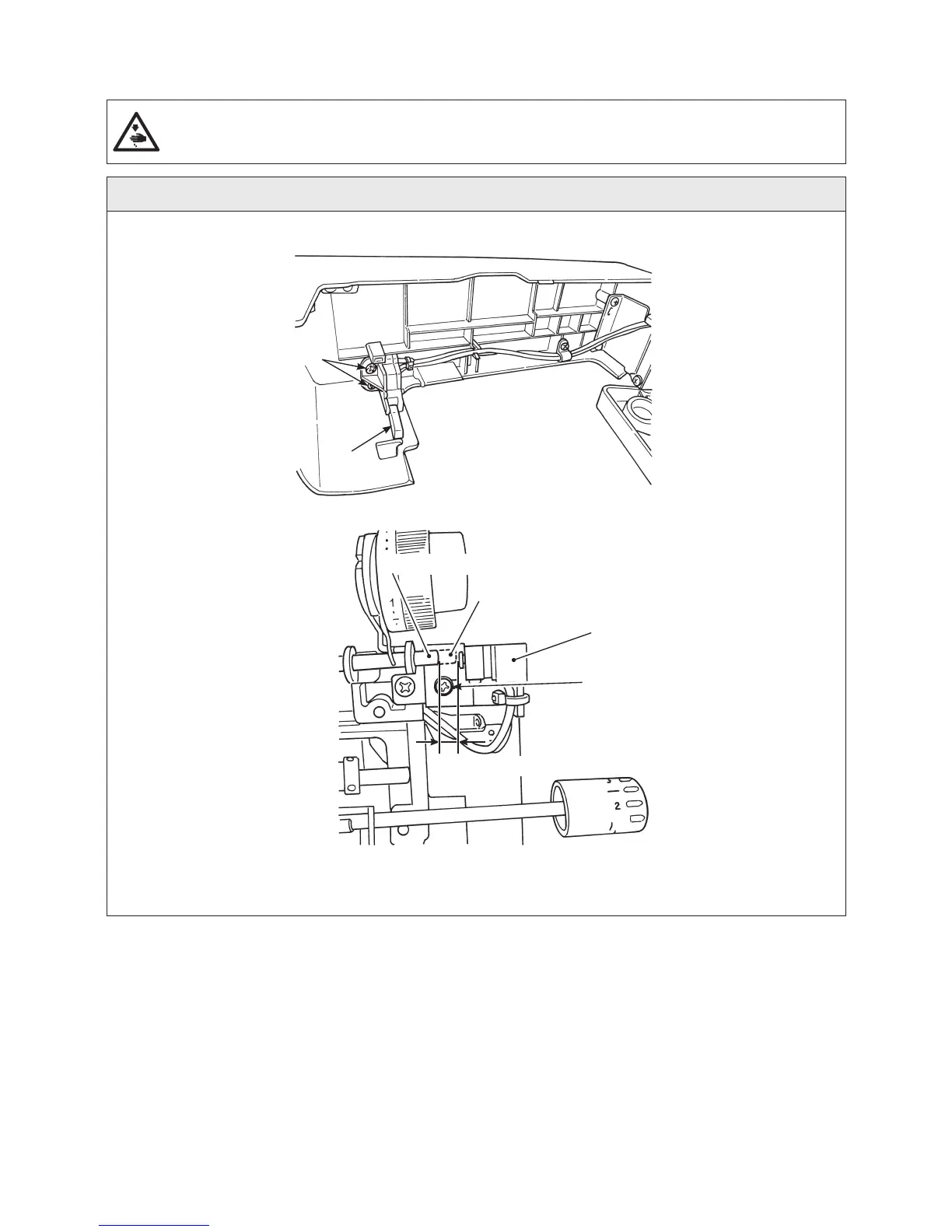

Adjusting the safety switch
W
ARNING :
T
o protect
against possible
personal injury
due to
abrupt start
of the
machine, be
sure to
start the
following work after turning the power off and ascertaining that the motor is at rest.
1
(A)
(C) when the presser foot is lifted
(C) when the presser foot is lowered
2
(B)
Approximately 1 mm clearance
63
65
Table of Contents
Table of Contents
3
Specifications
5
Appearance
6
Name of each Component
6
Inside of the Cover
7
Removing Order of Covers
8
Standard Adjustment / Disassembly and Assembly
8
Installation of the Throat Plate
12
Height of the Needle Bar
14
Position of the Feed Dog
16
Adjusting the Stroke of the Sub Feed Dog
18
Height of the Feed Dog
20
Feed Dog Timing
22
Position of the Balance Weights and the Cams
24
Projecting Amount of the Upper Looper
26
Radius of the Lower Looper
28
Adjustment of the Loop Lift
30
Lower Looper
31
Timing between Upper and Lower Looper
32
Installation of the Needle Guards
34
Adjusting the Looper Thread Take-Up
36
Height and Lateral Position of the Presser Foot
38
Adjusting the Floating of the Disk of the Thread Tension Controller
40
Adjusting the Tension of the Thread Tension Controller
42
Position of the Needle Thread Take-Up Thread Guide
44
Tension of the Belt
46
Adjusting the Needle Bar Connection Guide of the Needle Threader
48
Adjusting the Needle Threader Hook
50
Adjusting the Looper Threader Timing
52
Adjusting the Pump Unit
54
Position of the Lower Knife
56
Engagement of the Upper Knife with the Lower Knife
58
Adjusting the Timing of the Upper Knife
60
Adjusting the Thread Sliding Segment
62
Adjusting the Safety Switch
64
Position of the Cloth Plate
66
Circuit Diagram
68
Maintenance
70
Lubrication
70
Grease Application
70
Looper Threader
70
Troubles and CORRECTIVE Measures
71
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the JUKI MO-1000 Series and is the answer not in the manual?
Ask a question
JUKI MO-1000 Series Specifications
General
Brand
JUKI
Model
MO-1000 Series
Category
Sewing Machine
Language
English
