18

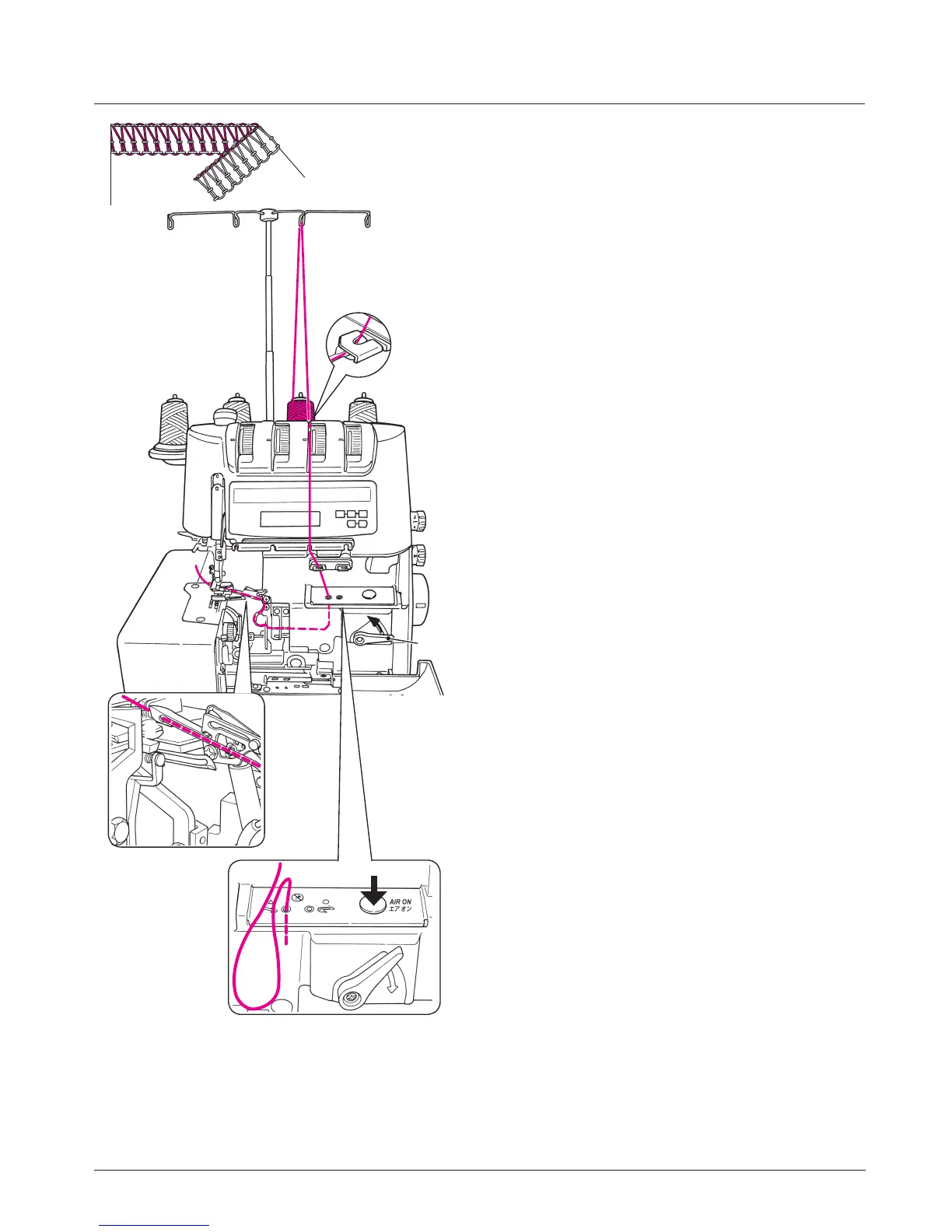

Upper looper thread, purple markings
Place the spool on the spool holder pin as illustrated.
(1) Raise the threading changeover lever in the di-
rection of the arrow.
Turn the handwheel toward you until it clicks.
(2) Thread the thread guide which is located just
above the spool from back to front.
(3) Thread the thread guide No. 1.
(4) Pull the thread by both hands and thread the
thread guide.
(5) Thread the thread guide.
(6) Pull out the thread by 20 to 30 cm to let it sag
inside the looper cover.
(7) Pass the top end of thread through threading
hole by 1 to 2 cm.
(8) Press the air-control pushbutton.
(9) Check to be sure that the thread comes out from
the top end of the upper looper.
(10) Pull the thread by approximately 10 cm to route
it under the presser foot and pull it out from its
rear.
Threading 4/3 Thread OL
1
1
2
4
5
6
7
8
9
20-30cm
3
10
To Next Page
