Jumbuck Astro 4 User Manual

NOTE:
- Always wear gloves during assembly of this BBQ.
- Assemble the BBQ on a flat level surface

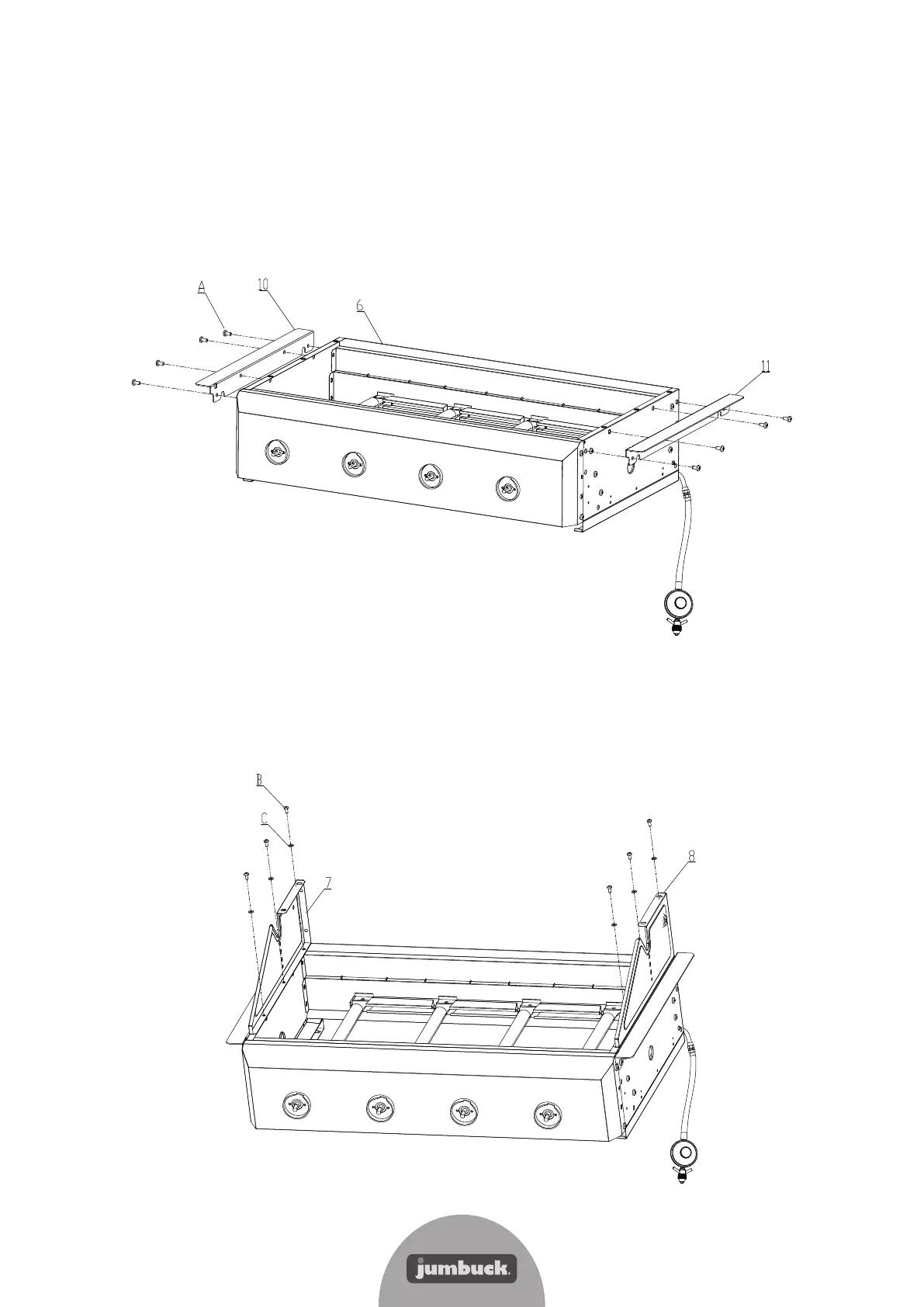

STEP 1
Assemble the ' Support plate-left' (10) 1pc & ' Support plate-right' (11) 1pc to the 'Firebox'(6)
using Screw (A) 8pcs as shown.
STEP 2
Assemble the 'Fire box side panel - left' (7) and 'Firebox side panel - right' (8) to the 'Firebox'
(6) using Screw (B) 6pcs and Flat washer (C) 6pcs as shown.
