39

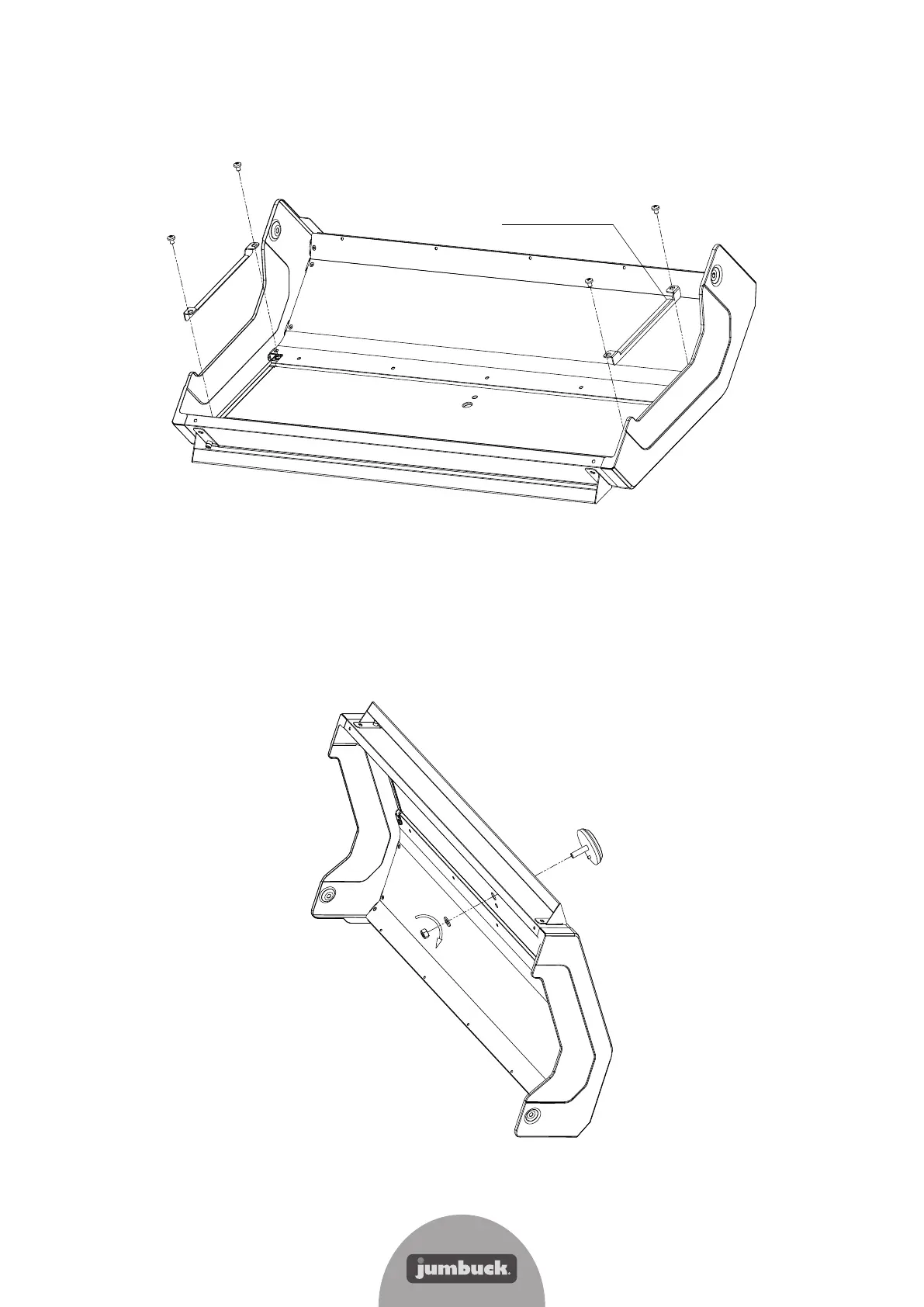

Glass fixed panel
STEP 10
Assemble the temperature gauge on the hood as shown.
Note: Please do not overtighten the temperature gauge nut.
STEP 9
Using a screwdriver replace the two side'Glass fixing brackets'as shown using the M6
Screws (4pcs)
