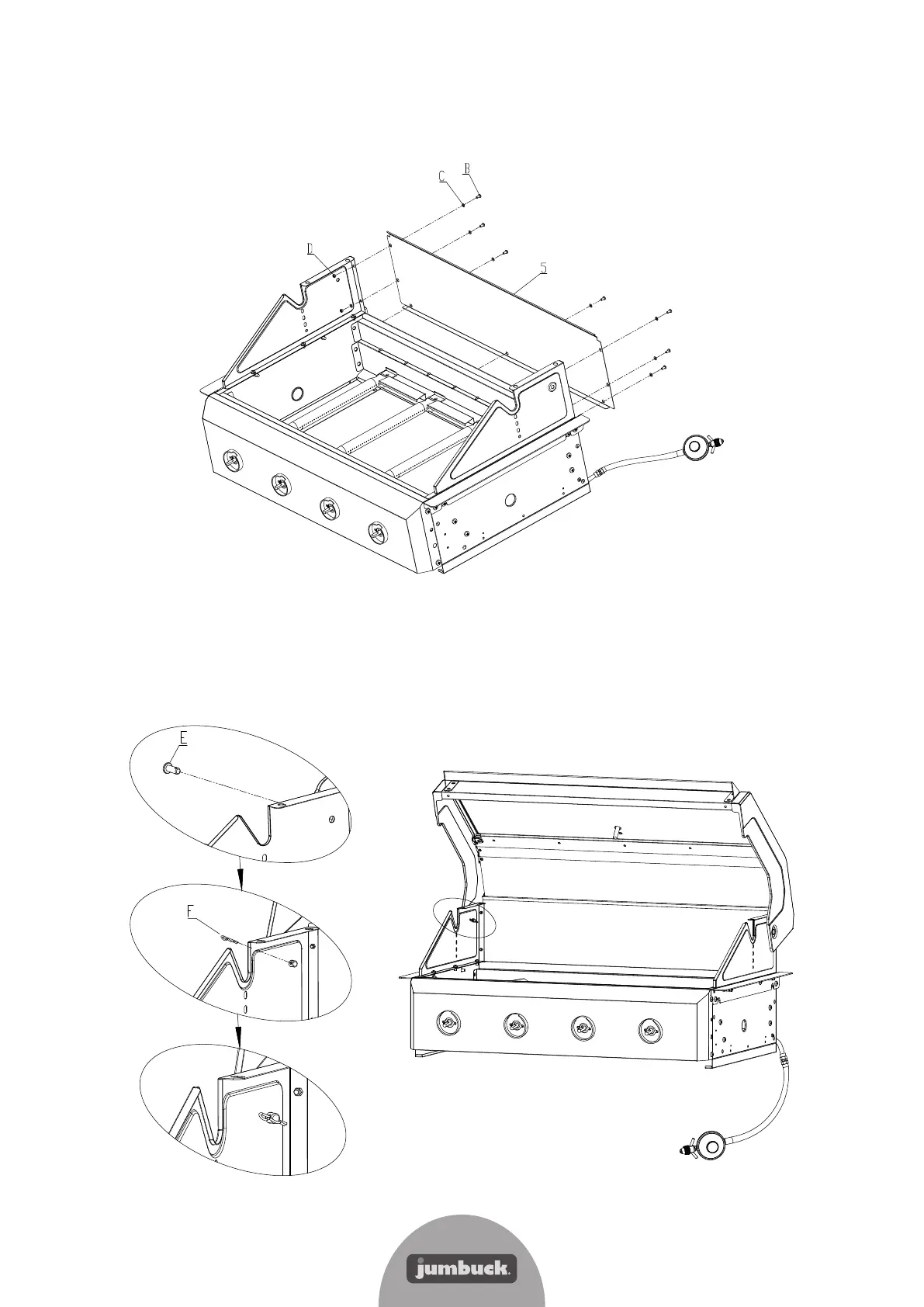

STEP 4
Assemble the 'hood' (1) to the 'firebox' (6) using'Hinge pin'(E) 2pcs and'R pin'(F) 2pcs as
shown.
11
STEP 3
Assemble the 'Fire box rear panel' (5) to the 'Firebox'(6) using Screw (B) 7pcs, Flat washer
© 7pcs and nut (D) 4pcs as shown.
