Chapter 2—Functional Descriptions
2-18 Model 330. 340SC, and 370SC Service Manual
Raster Timing Generator Board (RTG) p/n 100568
The Raster Timing Generator board is located in the electronics card cage and plugs into
the backplane. It is the second board from the rear of the card cage and consists of a main
board and the PLL daughter board (see Figure 2-11). The PLL board must be installed for
the projector to operate.

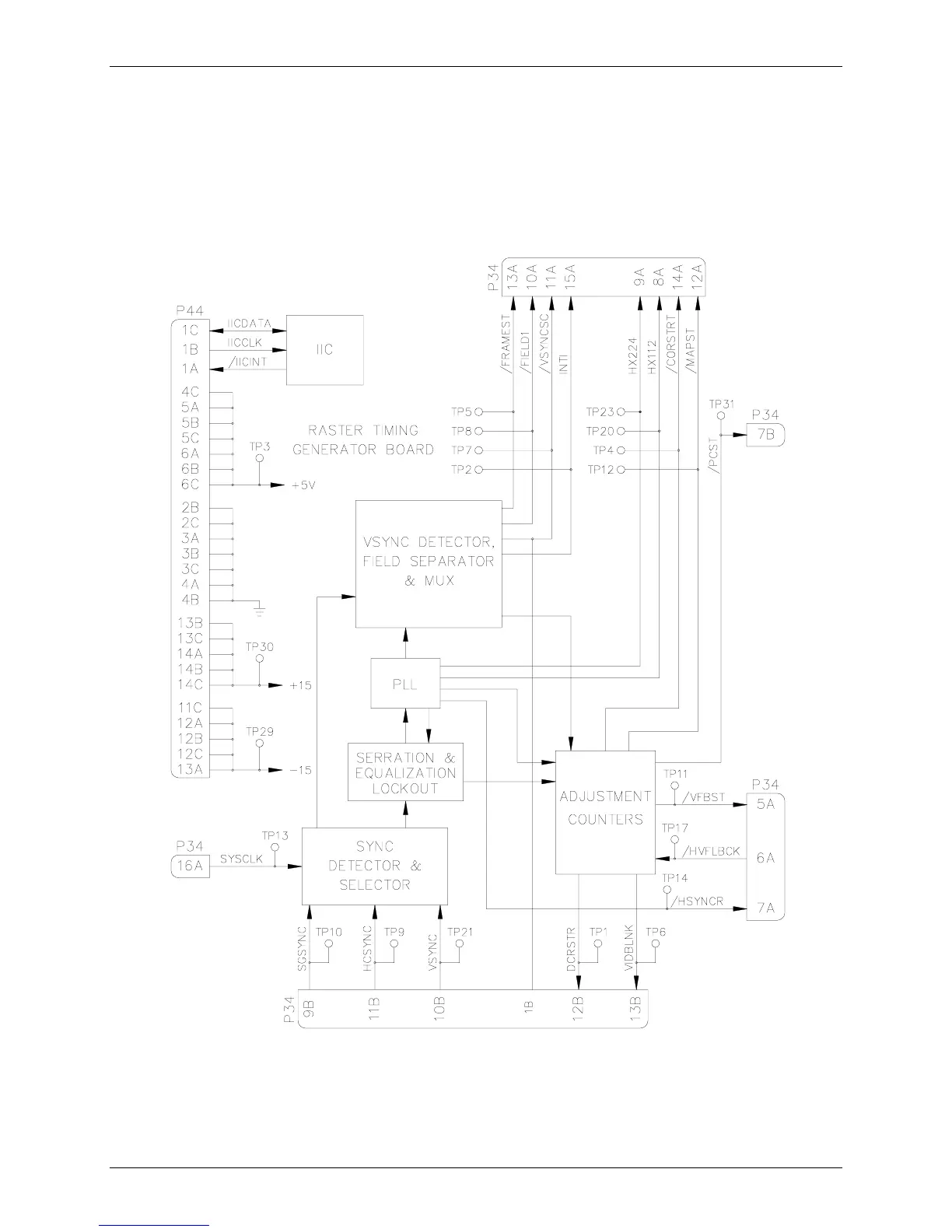

Figure 2-11
Raster Timing Generator Block Diagram
