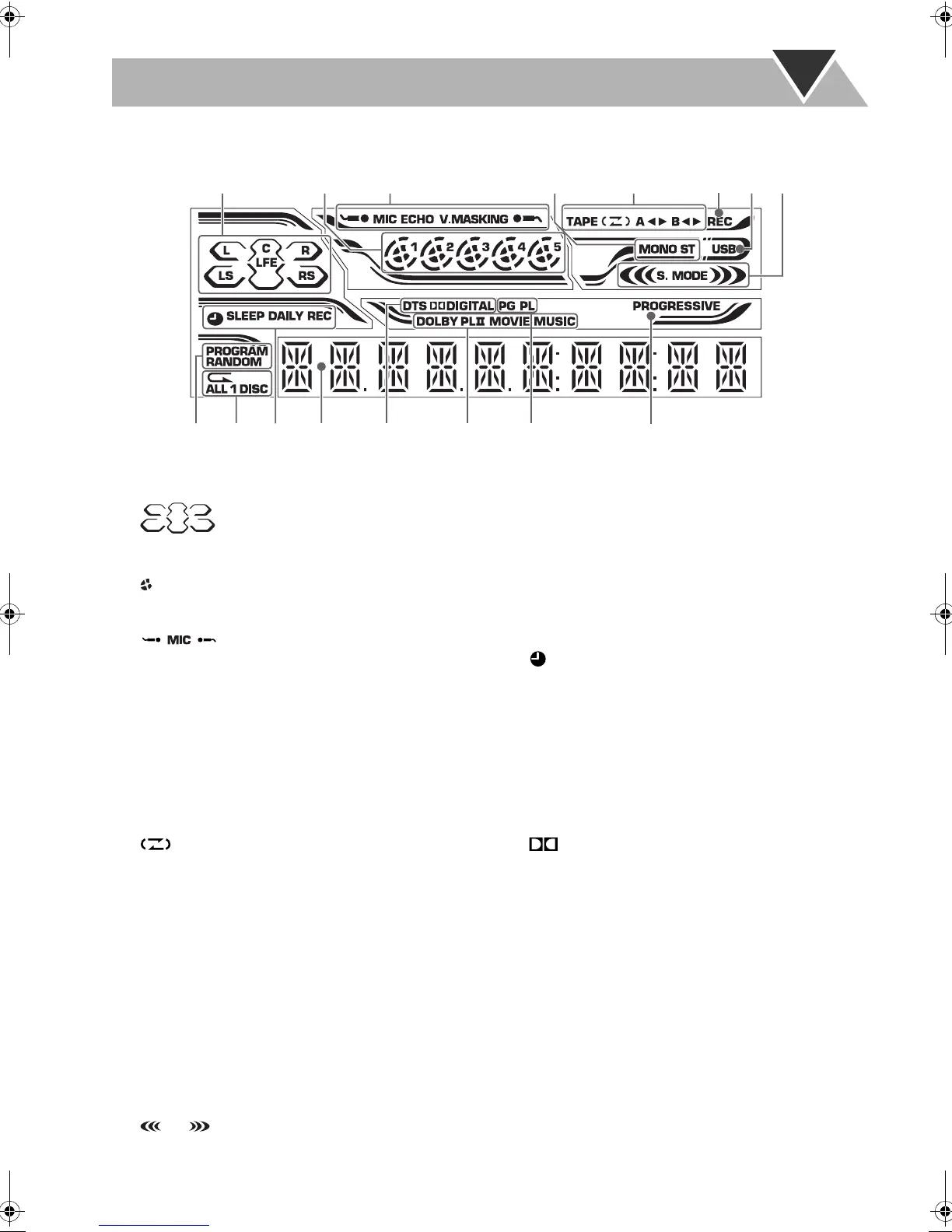

Display Indication
The indications on the display tell you a lot of things while you are operating the System.
Before operating the System, be familiar with when and how the indicator illuminates on the display.
1 Audio signal indicators
• L/R/C/LS/RS/LFE: lights to indicate the incoming audio
channel signals.
• : lights to indicate the speakers from which
sound is emitted.
2 Disc indicators
• 1 – 5: lights to indicate the current disc tray.
• : lights when a disc is detected on the disc tray; rotates
during playback or pause.
3 Karaoke operation indicators
• : lights when Mic Mixing is activated;
flashes when Karaoke Scoring is in use.
• ECHO: lights when Echo is activated.
• V.MASKING: lights when Vocal Masking is activated.
4 FM reception indicators
• ST (stereo): lights while an FM stereo station with
sufficient signal strength is tuned in.
• MONO: lights while receiving an FM stereo station in
monaural.
5 Tape operation indicators
• TAPE: lights when a tape is loaded in either deck A or B.
• (Reverse Mode): indicates the current Reverse
Mode.
• A: lights when a tape is in deck A.
• B: lights when a tape is in deck B.
•
2
3
(tape direction):
– Lights to indicate the current tape running direction.
– Flashes slowly during playback and recording.
– Flashes quickly while rewinding a tape.
6 REC indicator
• Lights while recording.
7 USB indicator
• Lights when “USB” is selected as the source.
8 Sound Mode/Surround mode indicators
• S. MODE: lights when one of the Sound Mode is
activated.
• : lights when one of the Surround Mode is
activated.
9 Play mode indicators
• PROGRAM: lights when Program Play is activated.
• RANDOM: lights when Random Play is activated.
p Repeat mode indicators
•
P
: lights when Repeat Play is activated.
• ALL: lights when All File Repeat is activated.
• ALL DISC: lights when All Disc Repeat is activated.
• 1 DISC: lights when One Disc Repeat is activated.
• 1: lights when One Track/Chapter/File/Step Repeat is
activated.
q Timer indicators
• : lights when Daily Timer or Recording Timer is on
standby, working, or being set.
• SLEEP: lights when Sleep Timer is activated.
• DAILY: lights when Daily Timer is on standby; flashes
while working or being set.
• REC: lights when Recording Timer is on standby; flashes
while working or being set.
w Main display
e Source signal indicators
• DTS: lights when DTS signals are detected.
• DIGITAL: lights when Dolby Digital signals are
detected.
r Dolby Pro Logic II mode indicators
• Lights when Dolby Pro Logic
II
(Movie or Music) is
activated.
t PG/PL indicator
• PG: lights when Original Program is selected for
DVD-VR playback.
• PL: lights when Play List is selected for DVD-VR
playback.
y PROGRESSIVE indicator
• Lights when the progressive scanning mode is selected.
87
132
45
treqw
y
9p
6
//
