Getting started

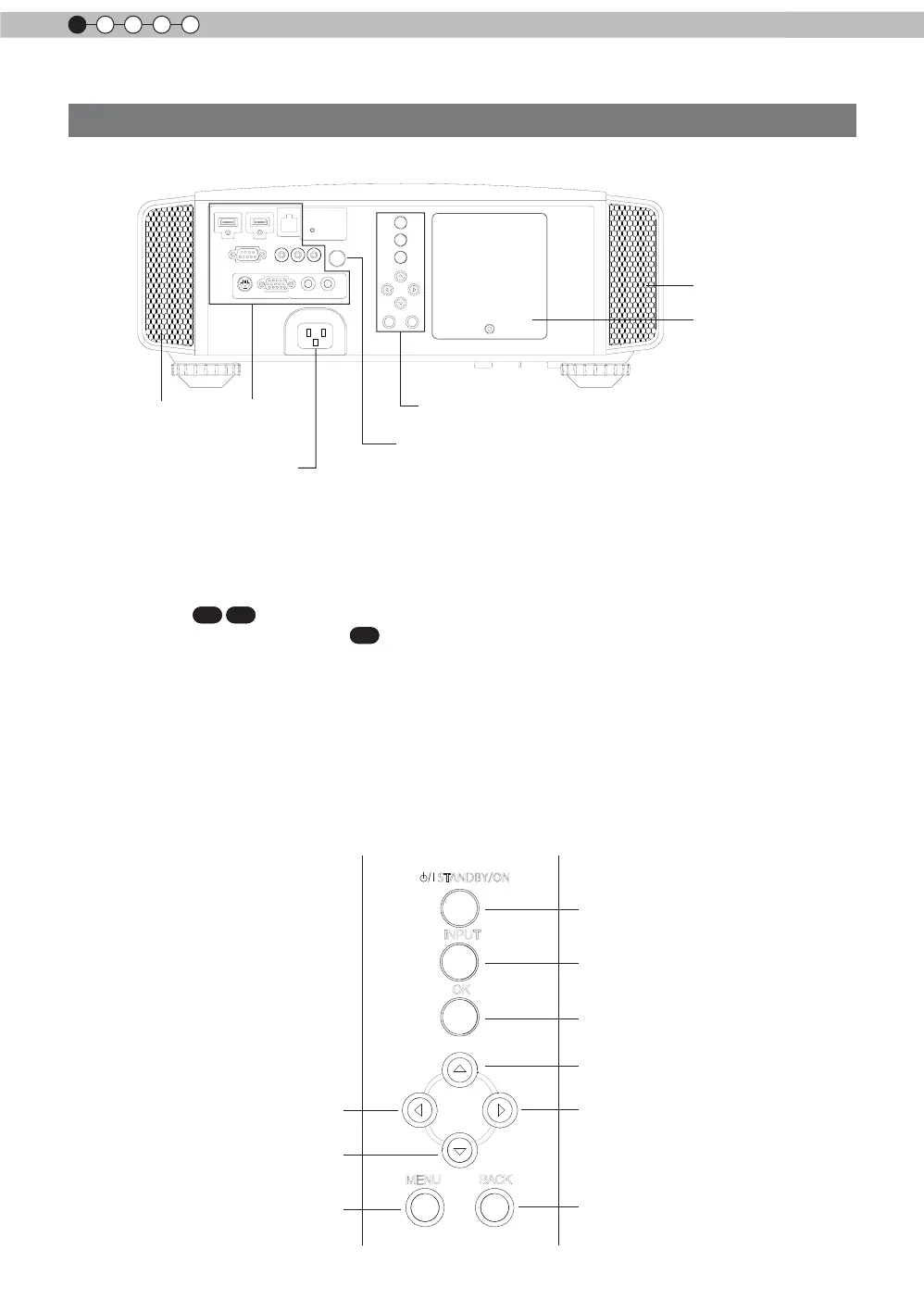

Main body - Rear
Controls and features (continued)
⑧ Input terminal
There is also a terminal other than the input
terminal for video images, such as those used
for controlling or optional equipment. This
illustration is
65 55
. Please see
“
About input
terminals
”
for detailed information
X
7
45
about
terminals. (Reference page: 19)
⑨ Lamp Cover
When replacing the light source lamp, remove
this cover. (Reference page: 78)
⑩ Operation panel
See the following illustration
“
Control panel
”
for
more details.
⑪ Light receiving section of the
remote control (rear)
Please aim the remote control at this section
when using.
(*) There is also a light receiving section at
the rear.
⑫ Power input terminal
This is the power input terminal. It is
connected via the supplied power cord.
(Reference page: 34)
To turn on/off the power
T
o switch input
T
o select or conrm
Up button
Right button
Left button
Down button
To
display the menu
T
o return to the previous menu
STANDBY/ON
MENU
BACK
INPUT
OK
⑤ Inlets
⑨ Lamp Cover
⑩ Operation panel
⑫ Power input
terminal
⑧ Input
terminal
⑤
Inlets
⑪ Light receiving section
of the remote control (rear)
■
Operation panel
