JVC DX-T99A User Manual

1-10 (No.MB531)
SECTION 3
DISASSEMBLY
3.1 Main body section
3.1.1 Removing the metal cover
(See Fig.1, 2)
(1) From the both sides of the main body, remove the six
screws A attaching the metal cover. (See Fig.1)
(2) From the back side of the main body, remove the eight
screws B attaching the metal cover. (See Fig.2)
(3) Remove the metal cover from the main body while lifting
the rear section of the metal cover in the direction of the ar-
row. (See Fig.1)

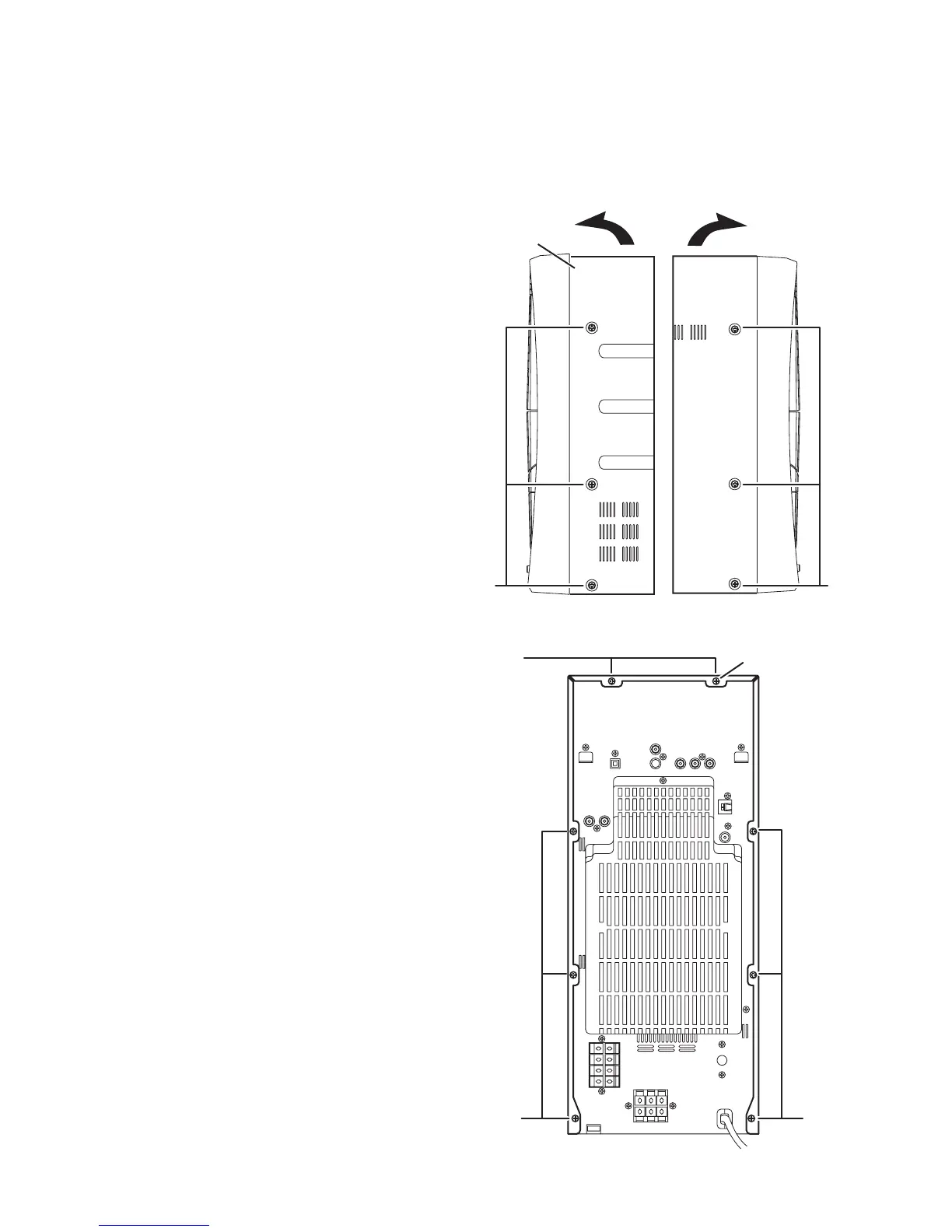

Fig.1
Fig.2
Metal cover
A
A
Metal cove
r
B
BB
