3.3.4 Removing the motor board

(See Figs.9 and 10)

(1) From the top side of the DVD changer mechanism assem-

bly, remove the two belts from the motor pulleys. (See

Fig.9.)

Note:

Take care not to attach grease on the belt.

(2) Remove the two screws D attaching the motors to the load-

er assembly. (See Fig.9.)

(3) From the bottom side of the DVD changer mechanism as-

sembly, remove the two screws E. (See Fig.10.)

(4) Disconnect the connector CN2

on the motor board from the

tray switch board and remove the motor board. (See

Fig.10.)

(5) Disconnect the card wire from the connector CN1

on the

forward side of the motor board. (See Fig.10.)

Note:

When connecting the card wire, let the card wire through the

slots h of the motor board. (See Fig.10.)

Reference:

You need not to remove the tray assemblies, and in such case,

move it.

3.3.5 Removing the motor

(See Fig. 10)

• Remove the motor board.

(1) From the reverse side of the motor board, unsolder the four

soldered sections i on the motor board.

(2) From the forward side of the motor board, remove the mo-

tors.

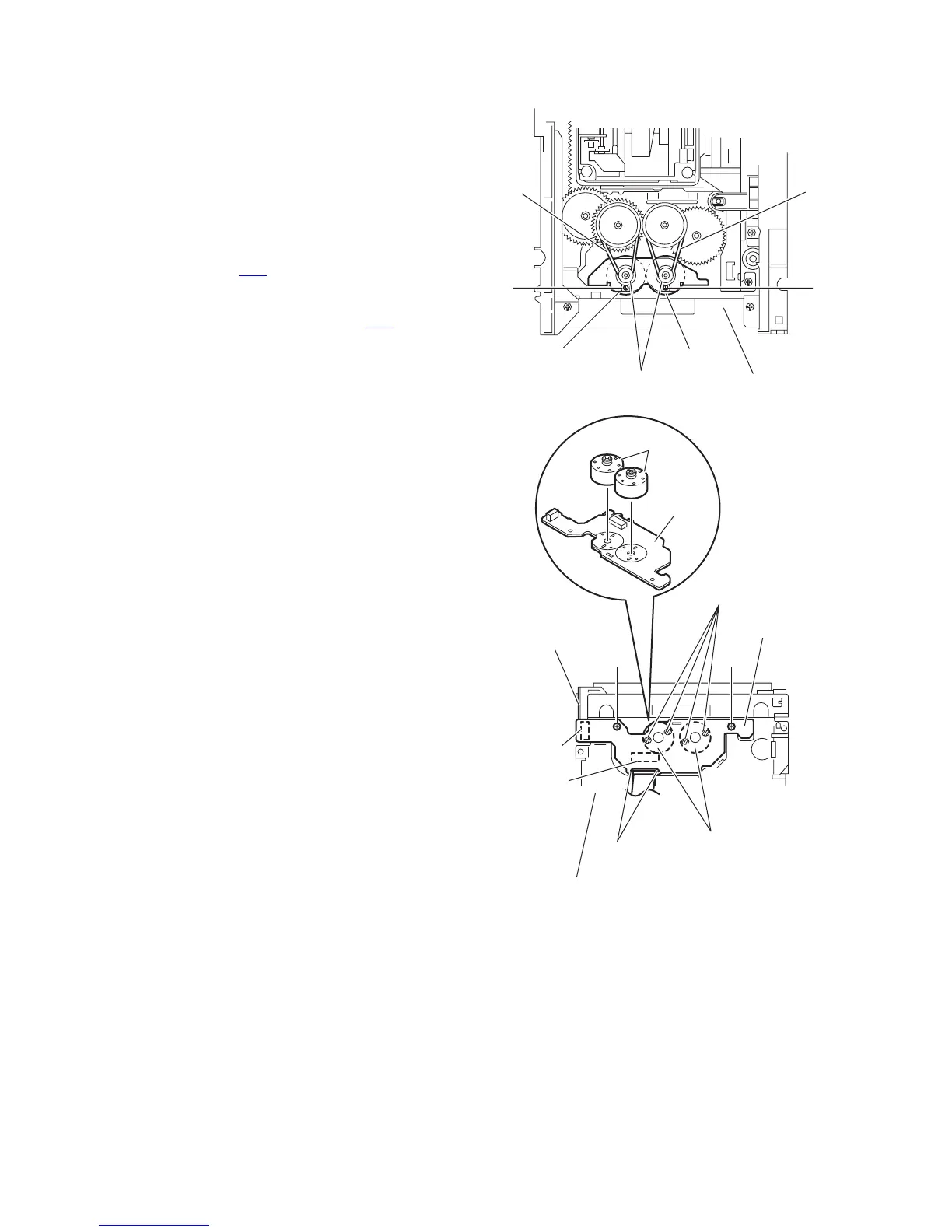

Fig.9

Fig.10

Motor Motor

Motor pulleys

Loader assembly

Belt

CN2

Motors

CN1

Motor board

DVD changer mechanism assembly

Tray switch

board

Motors

Motor board
