3.1.5 Removing the DVD changer mechanism assembly
(See Fig.10, 11)
• Remove the metal cover and DVD changer mechanism as-
sembly.
(1) From the back side of the metal body, remove the three
screws G attaching the video board to the rear panel. (See
Fig.10)
(2) From the top side of the main body, disconnect the card
wires from the connectors (CN920
, CN931) on the video
board. (See Fig.11)
(3) Take out the video board in the direction of the arrow while
removing it from the sections c of the mecha chassis. (See
Fig.11)

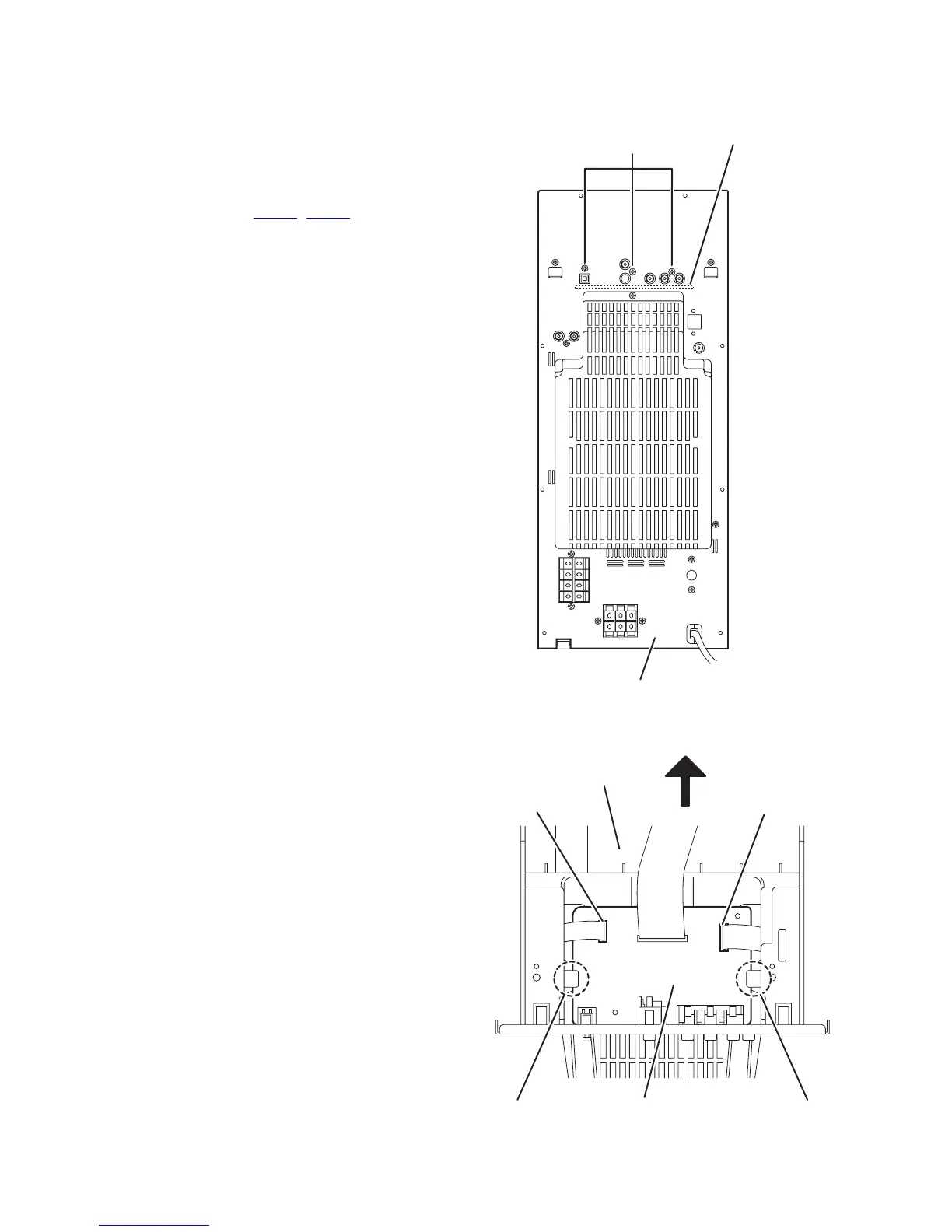

Fig.10
Fig.11
Video board
Rear panel
G
Mecha chassis
CN920
CN931
cc
Video board
