1-46 (No.MB531)
3.3.9 Removing the spindle motor board
(See Figs.16 and 17)
Remove the tray assemblies, DVD servo board and DVD
traverse mechanism assembly.
(1) From the top side of the DVD traverse mechanism assem-
bly, remove the wires from the soldered sections r on the
spindle motor board. (See Fig.16.)
(2) From the bottom side of the DVD traverse mechanism as-
sembly, remove the three screws J attaching the spindle
motor board. (See Fig.17.)
Reference:
When attaching the spindle motor board, let the card wire
through the hole s on the C.TM chassis. (See Fig.17.)

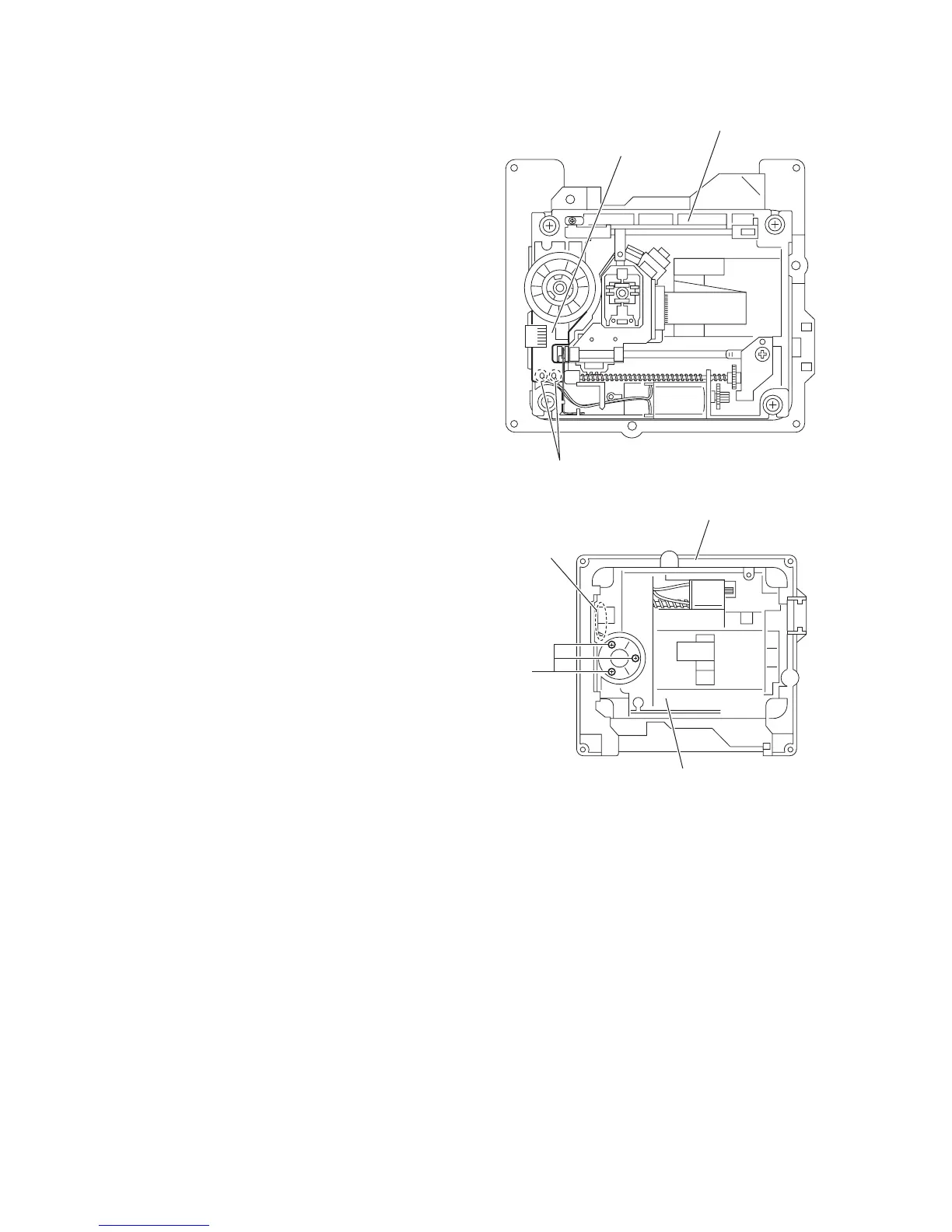

Fig.16
Fig.17
r
Spindle motor board
DVD traverse mechanism assembly
J
C.TM chassis
DVD traverse mechanism assembly
s
