JVC GR-DVL512U User Manual

5-10

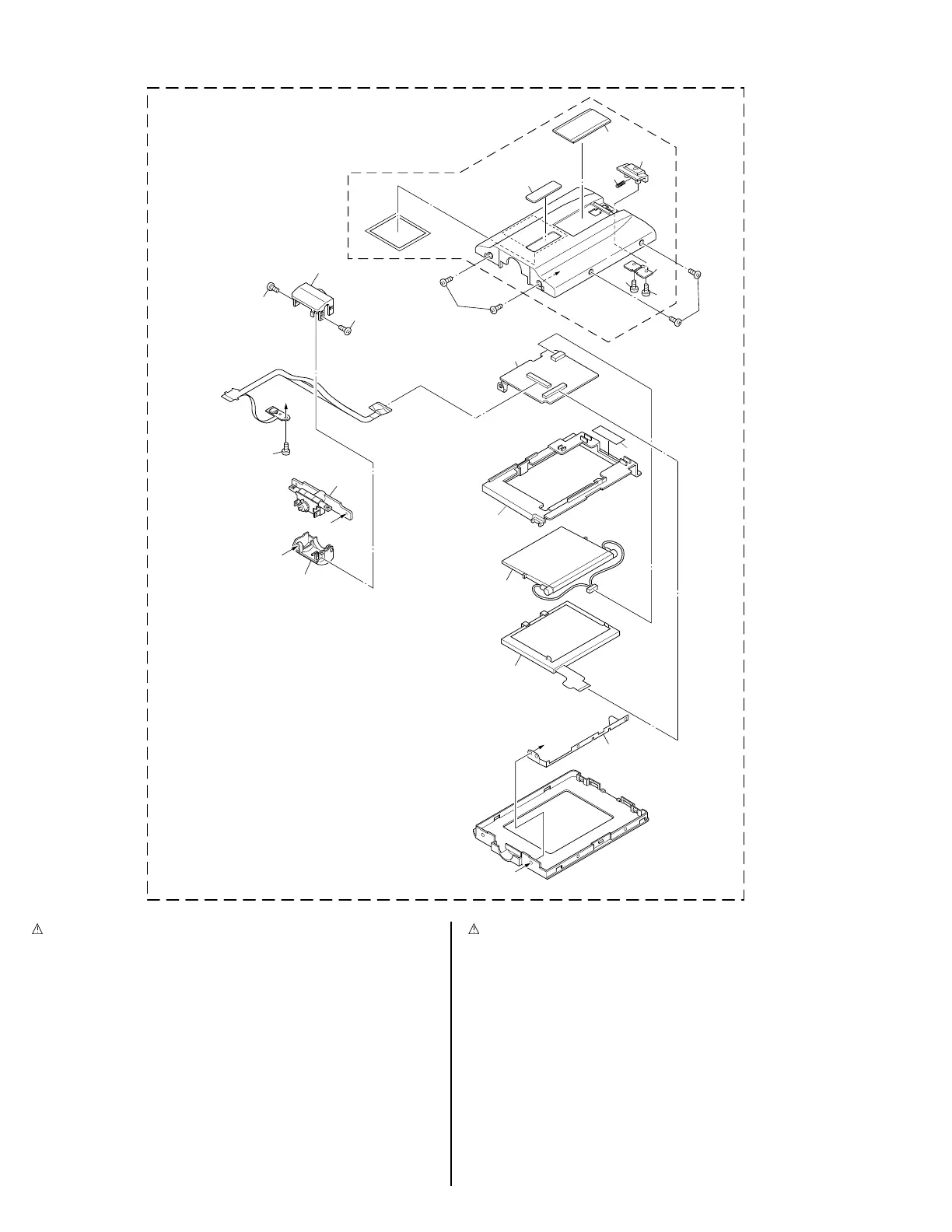

5.5 MONITOR ASSEMBLY <M5> [GR-DVL510U]
******************************
MONITOR ASSEMBLY <M5>
! 500 LYH20246-010A MONITOR ASSY
! 501 LY20702-003B MONITOR COVER(2.5)ASSY
501A LY31620-001A KNOB(LOCK 1)
501B LY42180-001A KNOB(LOCK 2)
501C LY30002-044A COMPRES. SPRING
501D LY30018-084A SPECIAL SCREW,X2
501E LY42368-001A SHEET(MON)
501F LY40559-001A SHIELD SHEET
501G LY42883-001A MARK
501H LY32087-002B WINDOW
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
502 LY10264-001A MONITOR CASE(2.5)
503 LY20674-001A HOLDER(2.45)
504 LY31622-001A BRACKET(EARTH)
505 QYSPSPT1730R SCREW,X2
506 QYSLSP2040D SCREW,X2
507 LY31743-001A MONITOR FPC ASSY
508 QLL0093-001 BACK LIGHT
509 QLD0154-001 LCD MODULE
510 LY30029-063A SPACER(A)
511 LY32079-001A HINGE ASSY
512 LY32088-001A HINGE COVER(1)
513 LY32089-001A HINGE COVER(2)
514 LY30018-058A SPECIAL SCREW,X2
515 LY30018-023A SPECIAL SCREW
502
508
LCD BL
<03>
506
501F
512
514
514
507
c
515
511
513
c
501
500
501G
501H
501A
501C
501B
501D
501D
a
a
b
505
504
509
b
503
510
