MONITOR
YB10326-01-01
REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION
CAPACITOR
C1 A C 1C
C10 A C 3D
C11 A C 3D
C7101 B C 2D
C7102 B C 2D
C7103 B C 2D
C7601 B C 1C
C7602 A C 1C
C7603 B C 1C
C7604 B C 1D
C7605 B C 1D
C7606 B C 1D
C7607 A C 1D
C7608 A C 1D
C7609 B C 1D
C7610 A C 1D
C7611 A C 1D
C7612 A C 1D
C7613 B C 1C
C7614 B C 1D
C7615 A C 1D
C7616 B C 1C
C7617 B C 1C
C7618 B C 1C
C7619 B C 1C
C7620 B C 1C
C7621 B C 1C
C7622 B C 1C
C7623 A C 2D
C7624 A C 2D
C7625 A C 2D
C7626 A C 2D
C7627 A C 2C
C7628 B C 3B
C7629 B C 3B
C7630 A C 3B
C7631 A C 3B
C7632 A C 3B
C7633 A C 3B
C7634 A C 3B
C7635 A C 3B
C7636 A C 2B
C7637 A C 3B
C7638 B C 1D
C7639 B C 1D
C7640 A C 1B
C7641 A C 1A
C7642 B C 1E
C7643 B C 2C
C7644 B C 2C
C7645 B C 3B
CONNECTOR
CN761 A C 4D
CN763 A C 1E
CN764 A C 3B
CN765 A C 1C
CN766 B C 4C
DIODE
D1 A C 1A
D10 A C 3D
D7601 A C 3B
IC
IC7101 B C 2D
IC7601 B C 1D
IC7602 A C 2C
IC7603 A C 1B
IC7604 B C 1D
IC7605 B C 2C
COIL
L10 A C 4D
L7601 A C 2D
L7602 B C 1C
L7603 B C 1C
L7604 A C 3B
L7605 A C 3B
L7606 A C 3B
L7607 A C 3B
TRANSISTOR
Q10 A C 3D
Q7101 B C 2D
Q7601 B C 3B
Q7602 B C 3B
Q7603 B C 3B
Q7604 B C 3B
Q7605 B C 3B
Q7606 B C 3B
Q7607 B C 1D
Q7608 B C 1D
Q7609 A C 2B
Q7610 A C 2B
RESISTOR
R1 A C 3E
R2 A C 3E
R3 B C 1C
R4 B C 1D
R5 B C 1D
R6 B C 1D
R10 A C 3D
R11 A C 4D
R12 A C 4D
R13 A C 3D
R14 A C 4D
R15 A C 3D
R16 A C 3D
R17 A C 3D
R18 A C 4D
R19 A C 3D
R20 A C 3D
R21 A C 3D
R22 A C 3D
R23 A C 4D
R24 A C 3D
R25 A C 3D
R26 A C 3D
R27 A C 3D
R28 A C 3D
COMPONENT PARTS LOCATION GUIDE MONITOR

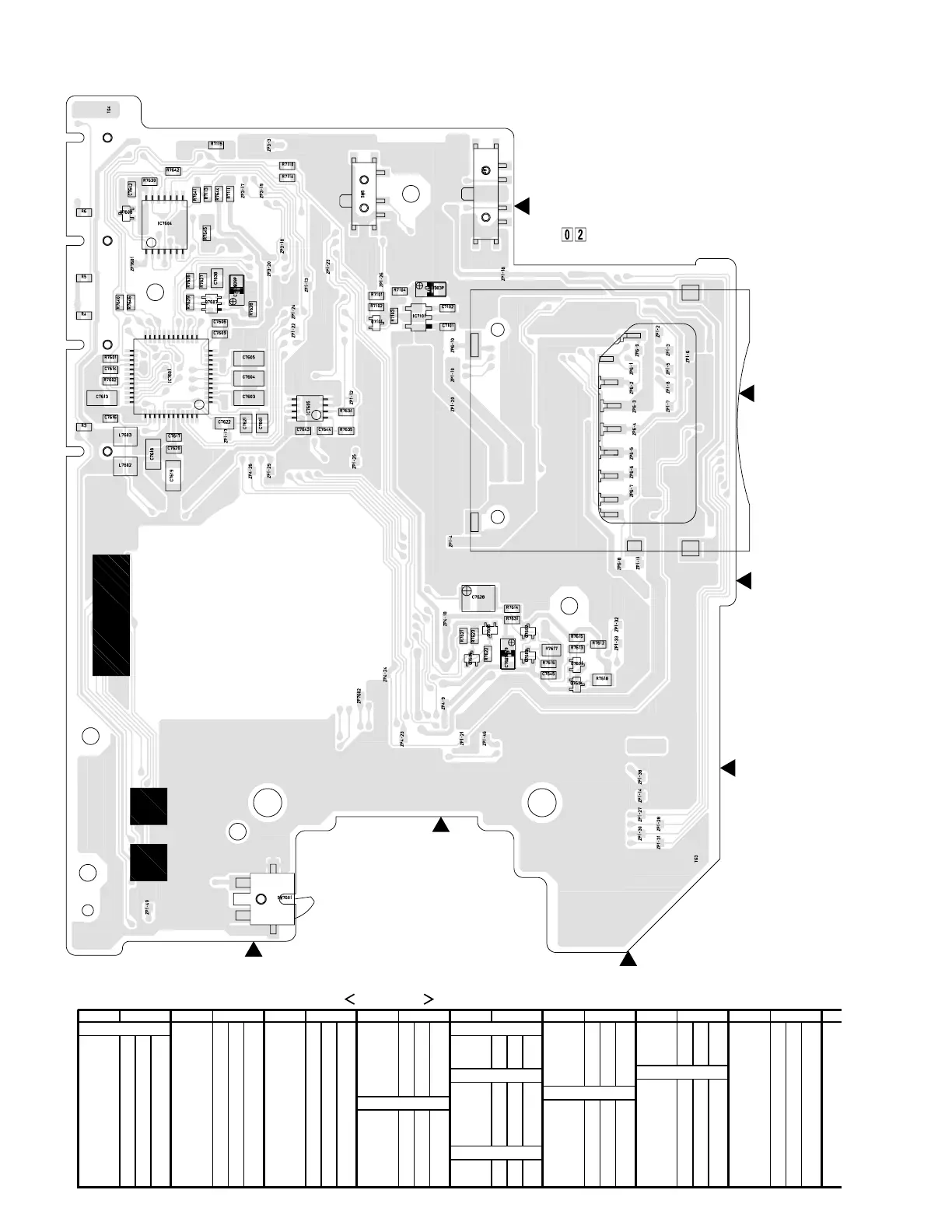

4.1 MONITOR CIRCUIT BOARD
REF
R71
R71
R71
R71
R71
R71
R71
R71
R71
R71
R76
R76
R76
R76
R76
FOIL SIDE
(
B
)
E
D
C
B
A
4
3
2
1
4-1
