EN45

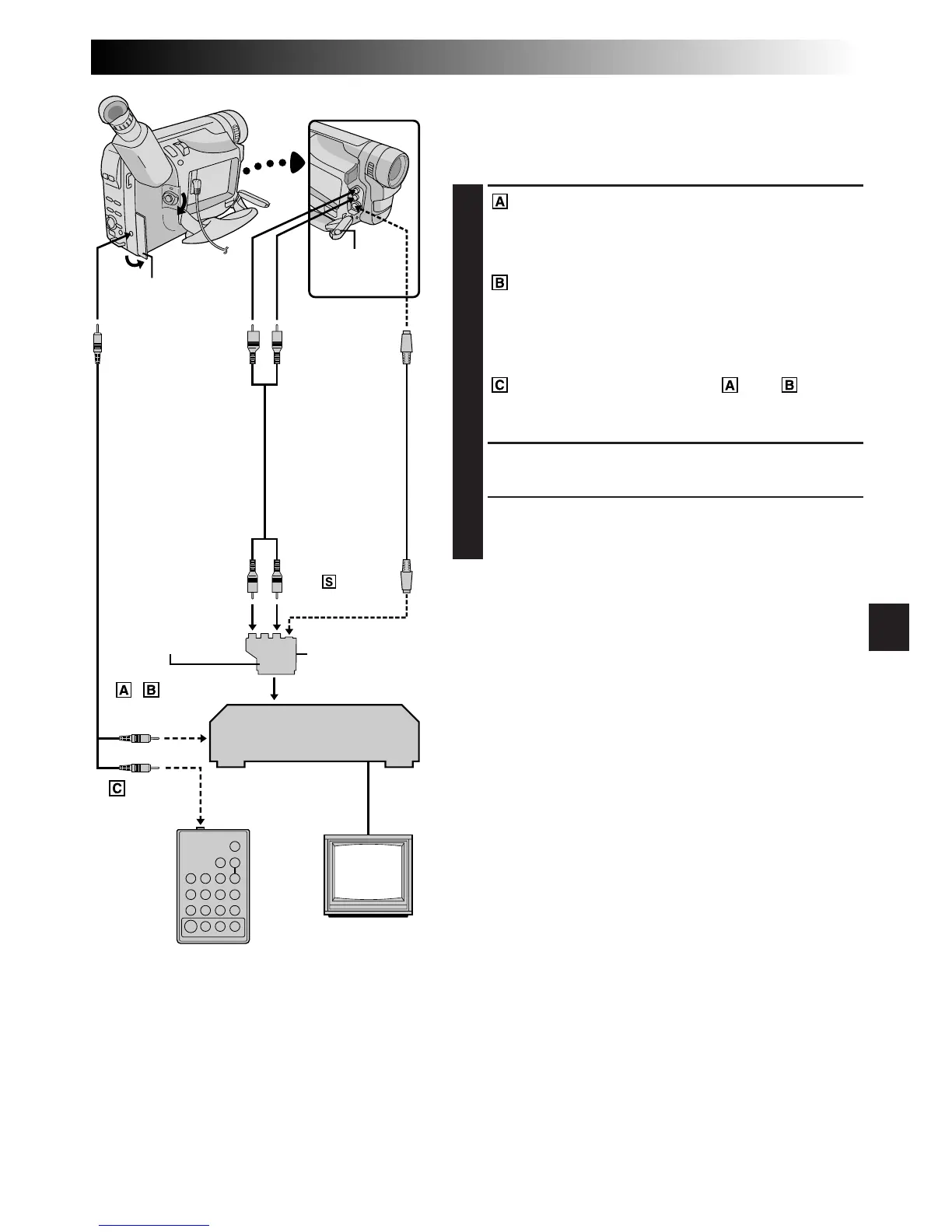

MAKE CONNECTIONS
NOTE:
Set “VIDEO OUT” of the camcorder according to the
system of the VCR you will be using. (
Z
pg. 14)
1
JVC VCR EQUIPPED WITH REMOTE
PAUSE TERMINAL
Connect the editing cable to the Remote PAUSE
terminal.
JVC VCR NOT EQUIPPED WITH REMOTE
PAUSE TERMINAL BUT EQUIPPED WITH
R.A. EDIT CONNECTOR
Connect the editing cable to the R.A.EDIT
connector.
VCR OTHER THAN TYPE OR
Connect the editing cable to the RM-V700U’s
PAUSE-IN connector.
2
Insert a recorded tape into the camcorder and set the
Power Switch to “PLAY”.
3
Turn the VCR power on, insert a recordable tape and
engage the AUX mode (refer to the VCR’s
instructions).
NOTES:
●
If your VCR has an S-Video input connector or a SCART
connector compatible with Y/C signals, connect the
camcorder and the VCR using the provided
S-Video cable. This can improve the dubbed picture
quality (GR-SXM46/SXM26/SX41/SX21 only).
●
If you use the cable adapter**, set the “Y/C”/“CVBS”
video out select switch as required.
Y/C : When connecting to a VCR which accepts Y/C
signals and uses an S-Video cable (GR-SXM46/
SXM26/SX41/SX21 only).
CVBS : When connecting to a VCR which does not
accept Y/C signals and uses an audio/video
cable.
** Provided with GR-SXM46/SXM26/SX41/SX21 only.
Also commercially available.
●
If you are using a SECAM VCR, set “VIDEO OUT” to
“SECAM” (GR-SXM46/SXM26/SX41/SX21 only,
Z
pg. 26).
S-Video cable*
(provided)
To J
terminal
(JLIP)
Open the cover.
To Video
output and
Audio
output
connectors
To S-Video
output
connector*
Open the
cover.
To Remote
PAUSE
RM-V700U
(optional)
VCR
TV
To PAUSE-IN
Editing cable***
(ø3.5 mini-plug
cable)
If your VCR has
the SCART
connector, use the
cable adapter**.
“Y/C”/“CVBS”
video out select
switch
To AUDIO (L/
MONO), VIDEO
and
-IN
connectors
* GR-SXM46/SXM26/SX41/SX21 only.
** Provided with GR-SXM46/SXM26/SX41/SX21
only. Also commercially available.
*** Provided with GR-SXM46/SX41 only.
Audio/Video
(A/V) cable
(provided)
CONTINUED ON NEXT PAGE.
