38 EN
PLAYBACK

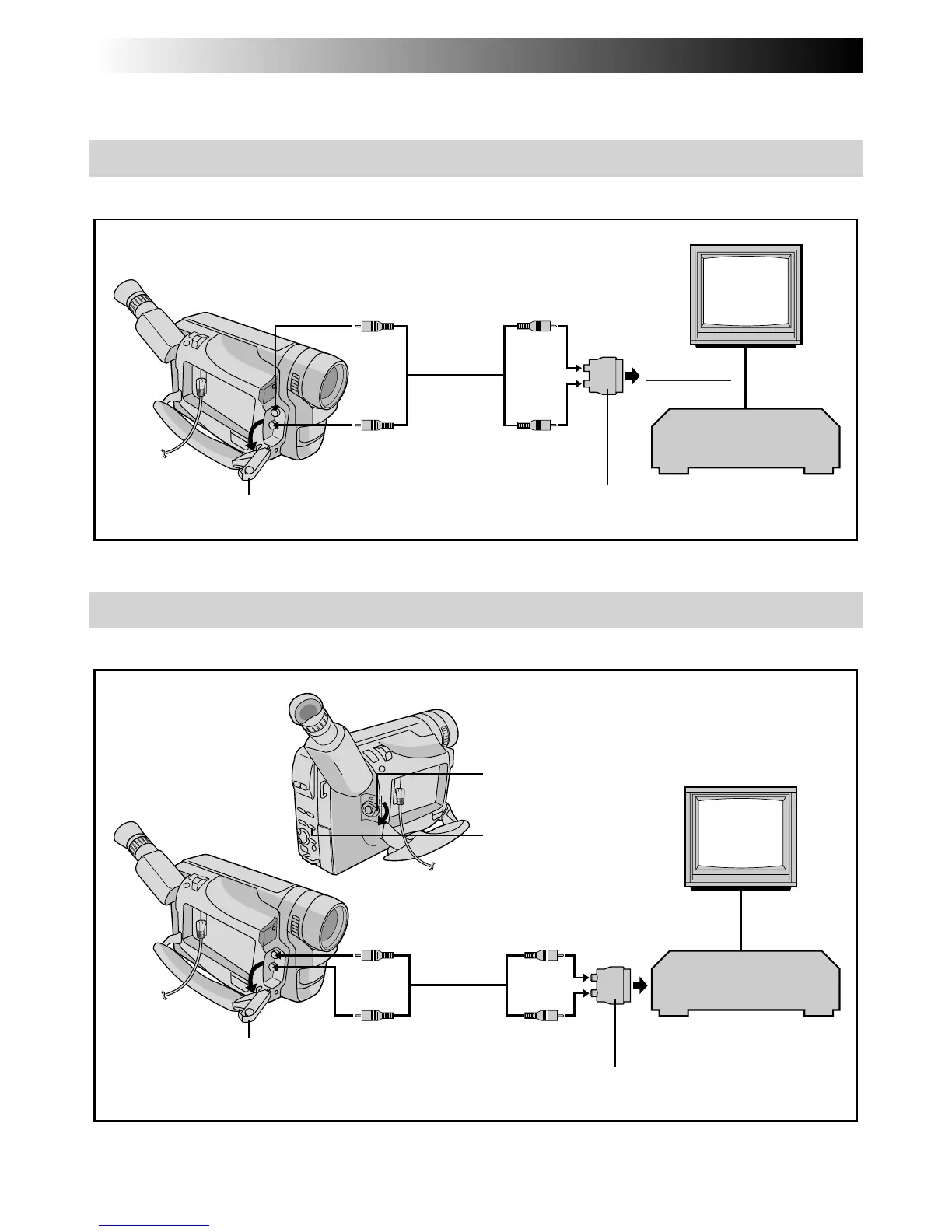

Basic Connections And Tape Dubbing
These are some basic types of connections. When making connections, refer also to your VCR and TV
instruction manuals.
Use the provided Audio/Video cable.
Basic Connections
A/V cable
(provided)
If your TV/VCR has the SCART connector,
use the provided cable adapter.
To Video
Output
To Audio
Output
TV
VCR
Connector cover*
To TV or VCR
To AUDIO and
VIDEO IN
connectors
Use the provided Audio/Video cable.
Connection For Tape Dubbing
* When connecting the cables, open this cover.
Power Switch
Play/Pause (
4
/6) Button
Connector cover*
To Video
Output
A/V cable
(provided)
VCR (Recording deck)
TV
To Audio
Output
To AUDIO and
VIDEO IN
connectors
If your TV/VCR has the SCART connector,
use the provided cable adapter.
