2-6
2.2.4 Idler arm, idler gear 1/2
2.2.4.1 Removal
(1) Release the catches (a) and (b) to detach the idler arm.
(2) Detach the idler gear 1/2.

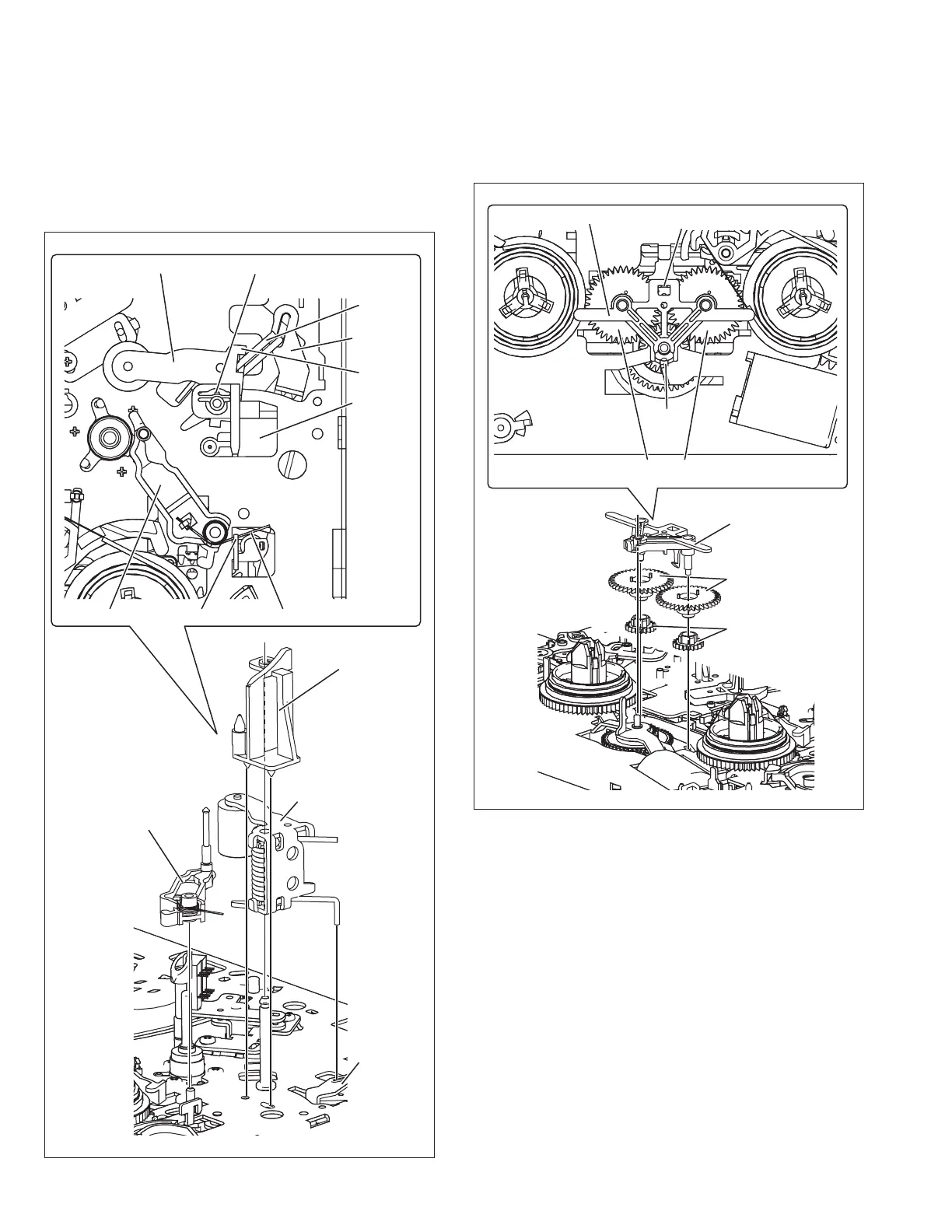

2.2.3 Guide arm, pinch roller arm
2.2.3.1 Removal
(1) Remove the spring (a) from the hook (a) and detach the
guide arm assembly.
(2) Release the catch (a) to remove the lid guide.
(3) Remove the spring (b) from the hook (b) and detach the
pinch roller arm assembly.
Fig. 2-2-3a
2.2.5 Main brake (T), brake lever, tension arm,
reel disk (S/T), Rec safety lever
2.2.5.1 Removal
(1) Remove the spring (a). (Detach section (b) of the spring (a).)
(2) Release the catch (a) to detach the main brake (T).
(3) Release the catch (b) to detach the reel disk (T) and the
spacer.
(4)
Lift up and turn section (b) of the brake lever counterclockwise
to remove the brake lever.
(5) Remove the spring (b) from the hook (a).
(6) Release the catch (c) to detach the tension arm.
(7) Release the catch (d) to detach the reel disk (S) and the
spacer.
(8) Remove the spring (c) from the hook (b).
(9) Turn the tension arm base in the direction shown by arrow
(a) to release catch (e). Place the projections of the tension
arm base to the holes (a) to detach the tension arm base.
(10) While releasing the catch (f), turn the Rec safety lever
counterclockwise to remove it.
Fig. 2-2-4a
Hook (a)Guide arm assembly Spring (a)
LID GUIDE
PRESS
LEVER
LID GUIDE
Pinch roller arm
assembly
PRESS
LEVER
Guide arm assembly
Spring (b)
Hook (b)
Catch (a)
Pinch roller arm assembly
Catch
(a)
IDLER GEAR 1/2
IDLER GEAR 2
IDLER ARM
IDLER ARM
Catch (b)
IDLER GEAR 1
