JVC HX-GX7 Service Manual

3-5

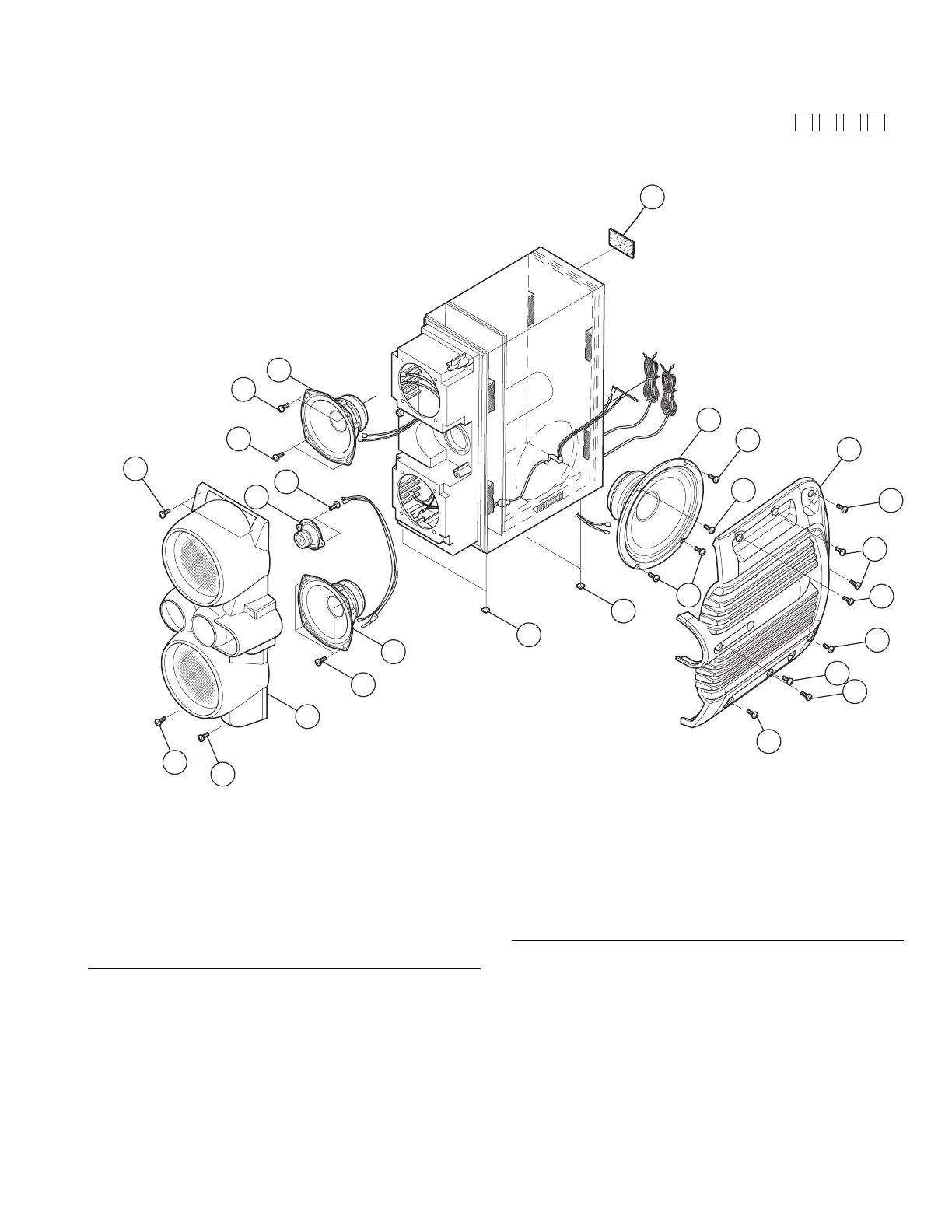

Speaker assembly and parts list
Speaker
Block No. [M][2][M][M]
Block No.
M
M
M
2
3
1
12
12
12
7
8
5
6
13
13
10
10
10
10
9
10
10
11
11
11
4
2
14
8
8
 Symbol No. Part No. Part Name Description Local
1 J200-XGD7L0S-40 FRONT PANEL ASY
1 J200-XGD7R0S-40 FRONT PANEL ASY
2 J221-XGD7L0S-10 SIDE PANEL ASSY
2 J221-XGD7R0S-10 SIDE PANEL ASSY
3 300-J0XGX71200 TOP WOOFER (x2)
4 300-J0XGX71600 SUBWOOFER (x2)
5 300-J1XGX71200 BOTTOM WOOFER (x2)
6 302-J0XGX70500 TWEETER (x2)
7 411-B140100P1 SCREW (x4)
8 411-P140120P1 SCREW (x16)
9 411-B74516AB1 SCREW (x2)
10 411-B74530AB1 SCREW (x14)
11 411-B84020AB1 SCREW (x8)
12 411-N54020AB1 SCREW (x8)
13 441-802103-00 LEG CUSHION (x8)
14 600-LXGX7J-00 SPEC LABEL
14 600-RXGX7J-00 SPEC LABEL
 Symbol No. Part No. Part Name Description Local
