JVC KS-FX12 Service Manual

2-1
KS-F150
KS-FX12
Fig. 3
d
Front chassis
a
ee
a

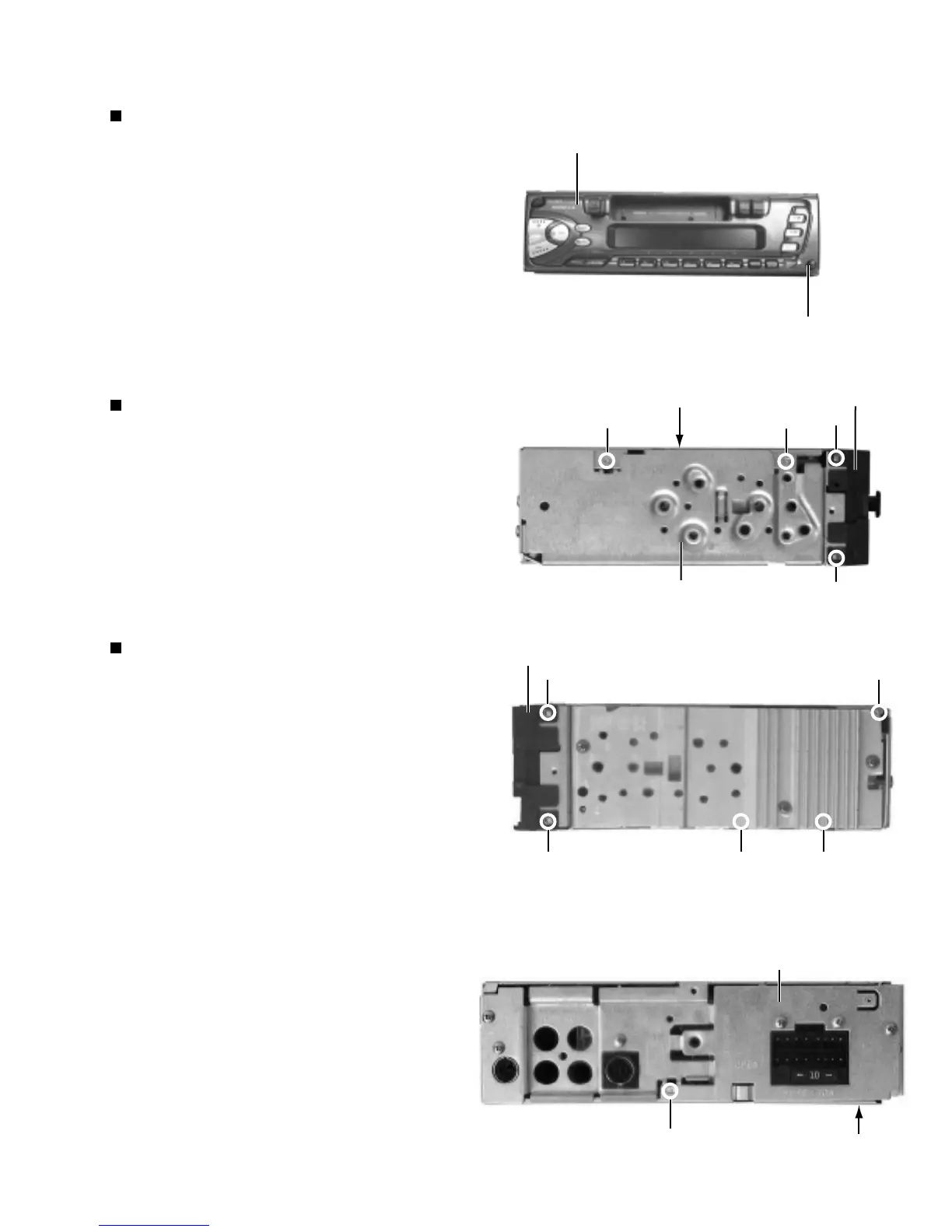

Disassembly Method
Detaching the Front Panel Unit
( See Fig.1 )
Push the Release button in the direction of arrow to
detach the front panel unit.
Removing the Front Chassis
( See Fig. 2 and 3 )
Disengage the four tabs ( a ) in the right and left sides of
unit and pull the front chassis forward to remove it.
Removing the Bottom Cover
( See Fig. 2 to 4 )
1. Removing the front chassis.
2. Turn the unit up side down.
3. Insert the six engagements ( b, c, d, e, f ) to the
screwdriver .
4. Turn the screwdriver and remove the bottom
cover.
Fig. 1
Push the release button
Front panel unit
a
a
Fig. 2
Top chassis
Front chassis
Bottom cover
b
c
Fig. 4
f
Bottom cover
Rear panel
