JVC KW-V51BT User Manual

PRK SW
REVERSE
(POWER ANTENNA)
(REMOTE OUTPUT)
(STEERING WHEEL REMOTE)
(ILLUMI)
(ACC)
(BATT)
(GND)
ENGLISH 55
CONNECTION/INSTALLATION
CONNECTION/INSTALLATION

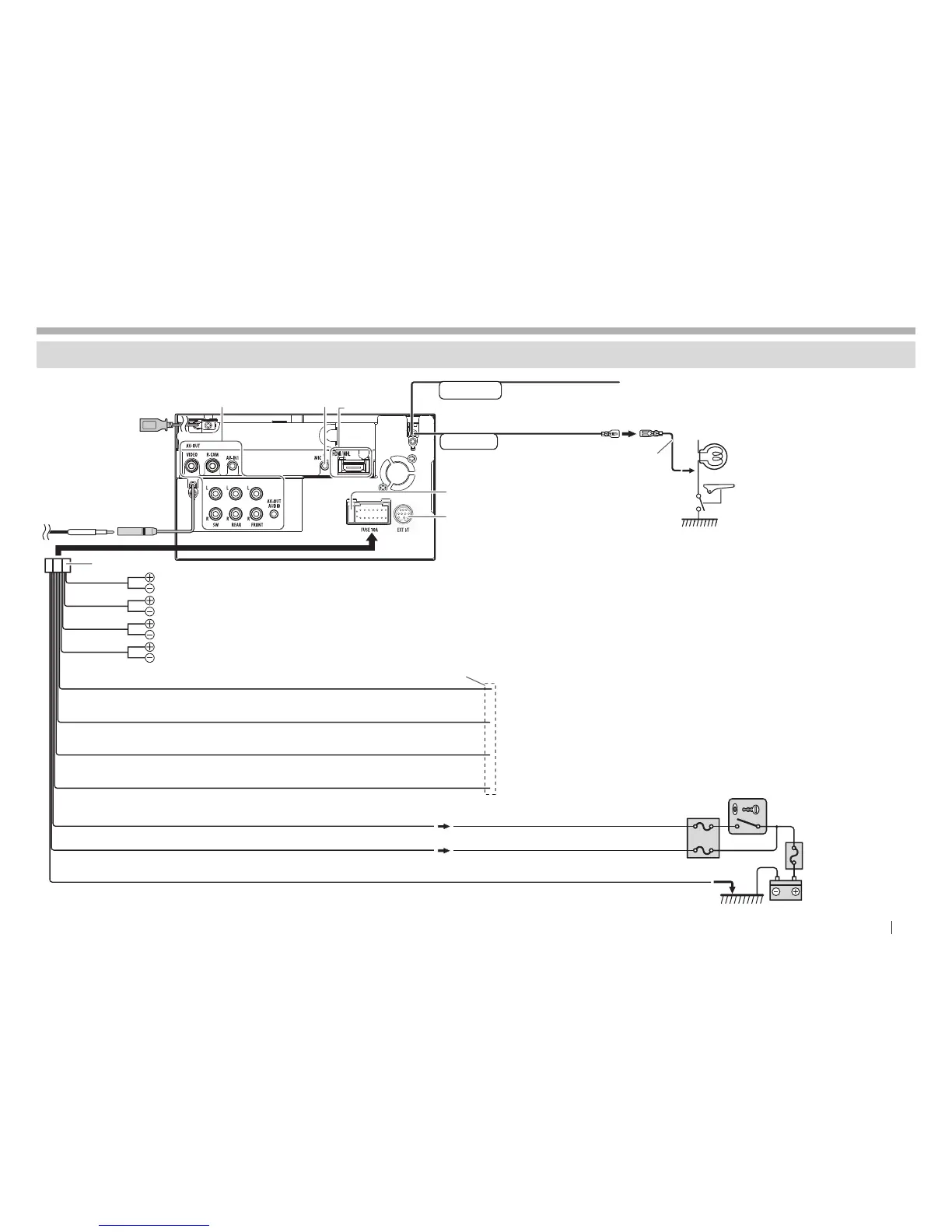

Connection
 Connecting wires to terminals
Pages56 – 57 Page58
USB terminal (0.8 m):
Pages56 – 57
10 A fuse
Ignition key switch
Fuse box
Battery
Connect to the vehicle’s reverse lamp harness when
using the optional rear view camera.
Connect to the vehicle’s parking
brake detection switch harness.
• For best safety, be sure to
connect the parking sensor.
To automatic antenna if any (250 mA max.)
To the remote lead of other equipment (200 mA max.)
To the OE remote adapter matching your car
To car light control switch
To car chassis
Purple with white stripe
(Reverse sensor wire)
Light green
(Parking sensor wire)
Connect SiriusXM Connect Vehicle Tuner
(commercially available).*
1
(Page 57)
3
1
White ª / White with black stripe · : To front speaker (left)
Gray ª / Gray with black stripe · : To front speaker (right)
Green ª / Green with black stripe · : To rear speaker (left)
Purple ª / Purple with black stripe · : To rear speaker (right)
Blue (Power antenna wire)
Blue with white stripe (Remote output wire)
Light blue with yellow stripe (Steering remote control wire)
Orange with white stripe (Dimmer control wire)
Red (Ignition wire)
Yellow (Battery wire)
Black (Ground wire)
*
2
*
1
Only for KW-V51BT Region 1/KW-V31BT Region 1.
*
2
If no connections are made, do not let the cable come out from
the tab.
Connect the antenna
cord to the antenna
terminal.
Pages56 – 57
KW-VMidJ.indb55 2014/12/0520:12
