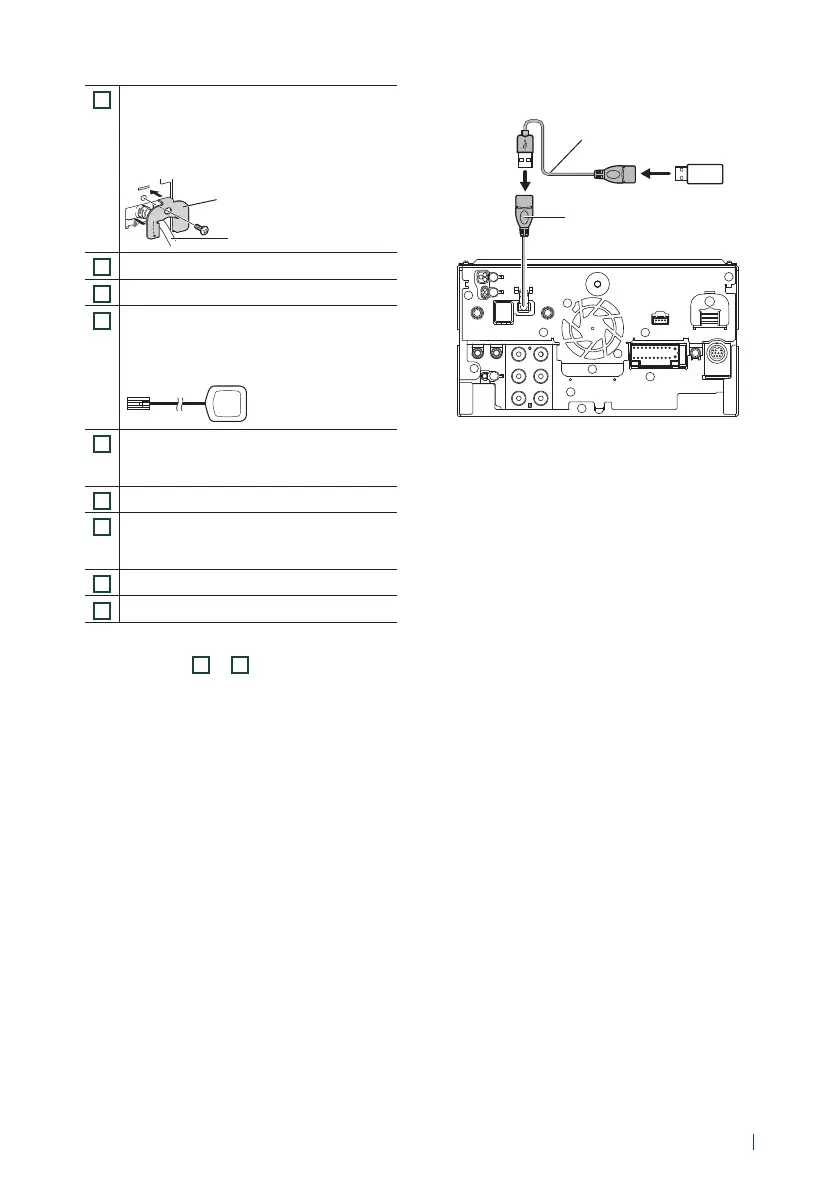

Connection/Installation
95English
7
HDMI input
Use HDMI cable (commercially available).
When you connect the cable to HDMI terminal,
remove the fixture. After connecting the cable,
put the fixture again.
HDMI connector
Fixture
8
iDatalink connector
9
AV Audio input (ø3.5 mini jack)
10
Accessory 6: GPS Antenna
Use the supplied GPS antenna. Using the GPS
antenna other than the supplied one may
cause a drop in positioning accuracy.
11
3rd view camera input (Yellow)
For more information, see To set up the
camera assignment settings (P.48).
12
Rear view camera input (Yellow)
13
Front view camera input (Yellow) *
1
For more information, see To set up the
camera assignment settings (P.48).
14
Video output (Yellow)
15
Video input (Yellow)
*1 Side (Left or Right) view camera can also be
connected to
9
or
13
.
Ñ Connecting a USB device
USB device
[2]
USB terminal
[1]
Accessory 2 (1 m)
[3]
[1]
USB maximum power supply current :
DC 5 V = 1.5 A
[2]
Sold separately
[3]
See Securing the USB extension cable
(P.96).
To Next Page
