The HDMI input receives digital audio and uncompressed video from a HDMI equipped device or
uncompressed digital video from a DVI equipped device.
When you connect to a DVI device with a HDMI-to-DVI adapter cable, it only transfers the video signal, so it
is necessary to use separate analogue leads to transfer the audio signals.
Select the HDMI input mode (see P.12).
Connecting an HDMI
or a DVI device to the HDMI input
Selecting the HDMI signal
1
Select Setup/HDMI Mode option.
OSD Timer
AV1 Input
PC Setup
HDMI Mode
Blue Back
Reset TV Setting
Software Upgrade
Ver si on
Sound
Channel
Feature
Setup
Never
Auto
Auto
Auto
PC
Video
Setup
2
Then press ▲ or ▼ to select the desired mode. Then press ▶.
Auto: Auto (factory setting), can remain in this mode. Change not necessary.
PC: PC (for PC), if desired.
Video: Video (for Video), if desired.
3
Press MENU to exit the menu.
Note:
Please notice the operating manual for the HDMI device to be set up.•
or
DVI device
HDMI device

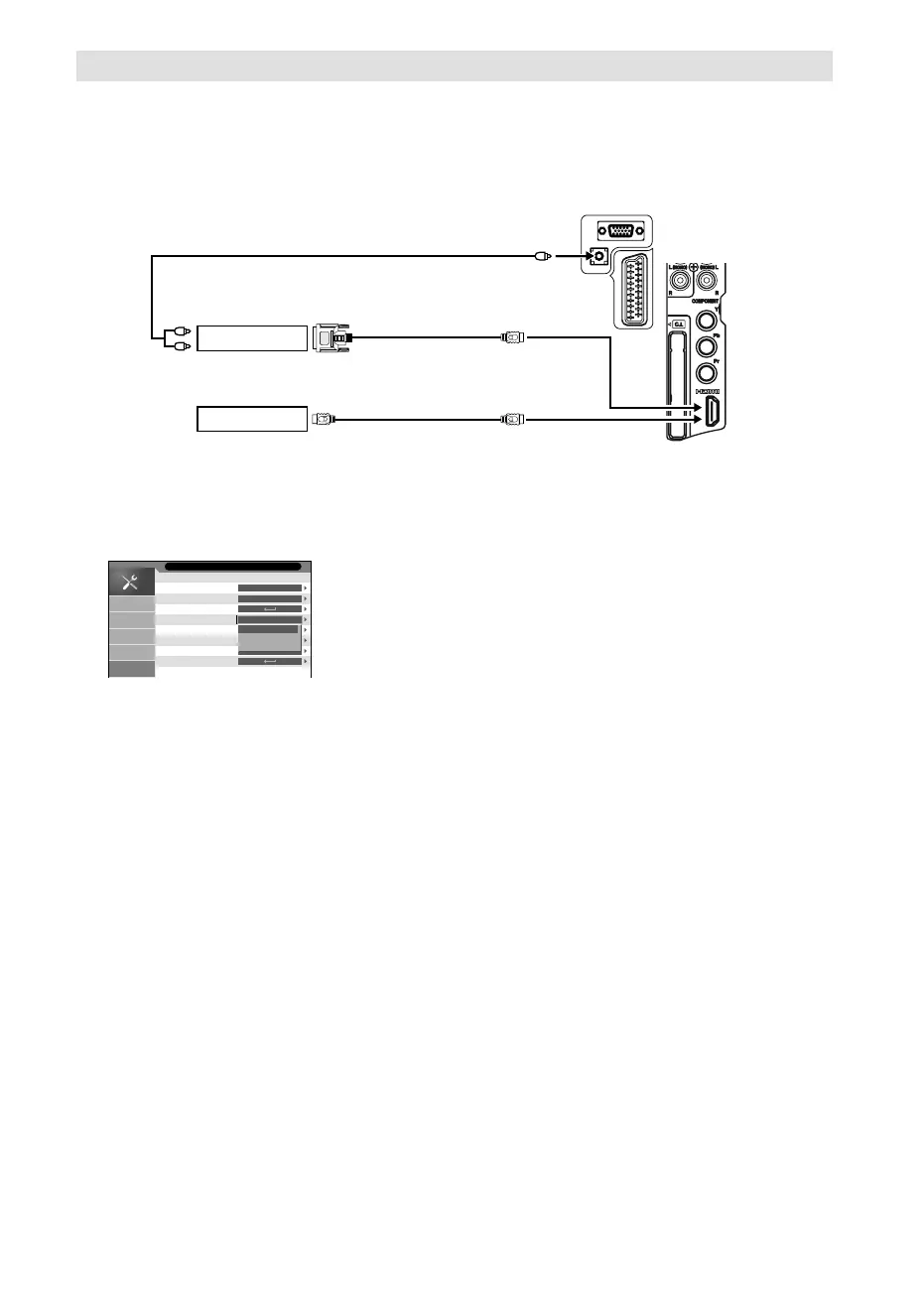

To DVI output
Audio cable (not supplied)
HDMI - to - DVI adapter cable
(HDMI type A connector)
(not supplied)
HDMI cable
(type A connector)
(not supplied)
To HDMI output
To PC/DVI AUDIO input
TV (Rear view)
TV (Side view)
