Quick Setup
By connecting an HDMI compatible device, high definition pictures can be displayed on your
TV in their digital form. Some HDMI devices can include DVD players, D-VHS or any HDMI
compatible device.
HDMI (High Definition Multimedia Interface) is the first industry supported, uncompressed, all
digital audio/video interface. HDMI provides and interface between any audio/video source,
such as a set-top box, DVD player, A/V receiver or an audio and/or video monitor, such as a
digital television (DTV).

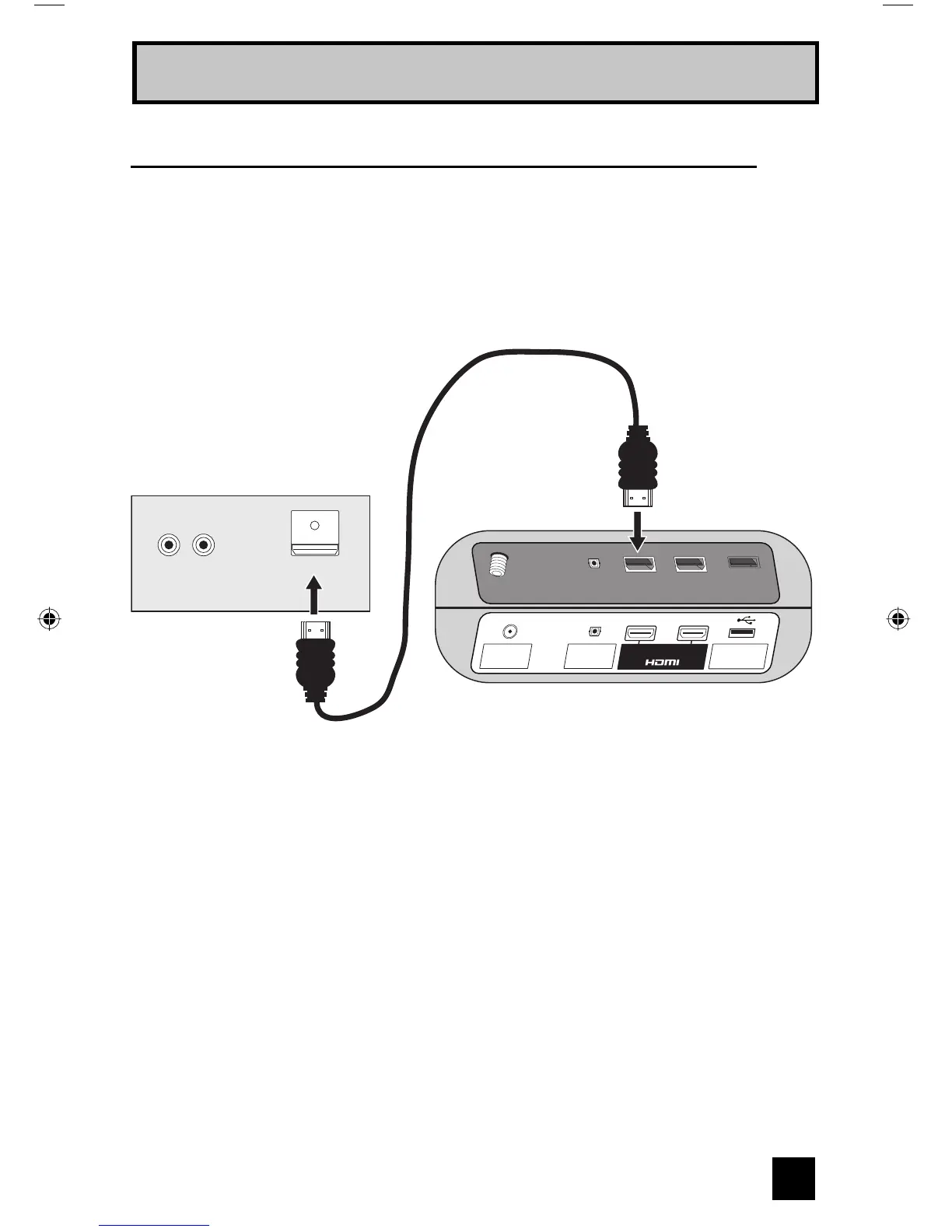

TV Rear Panel
HDMI Compatible Device
HDMI Cable
LR
AUDIO OUT
DIGITAL OUT
75 Ω
(VHF/UHF)
DIGITAL AUDIO
OPTICAL OUT
INPUT 1 INPUT 2
PHOTO VIEWER /
SERVICE
Connecting to an HDMI Compatible Device
1) Connect the HDMI Cable from the DIGITAL OUT on the back of your DTV or HDMI device, to
the HDMI INPUT-1 on the back of your television.
Notes:
• When you do the above connection, set "Video-1 Audio" in the External Input menu to Digital.
See "Video-1 Audio", page 44.
• Some decoders may not respond depending on the equipment that is connected to the HDMI.
• If the HDMI output device signal is changed (for example, 480i/60Hz is changed to
480p/60Hz), the screen may turn green and there may be some distortion for a short time
until the signal becomes stable.
• This TV can accept 480i, 480p, 720p and 1080i signals via HDMI.
