This TV provides one group of AV, one group of YPbPr and one SCART for convenient
connection to VCR, DVD or other video equipment. Please refer to the owners manual
of the equipment to be connected.

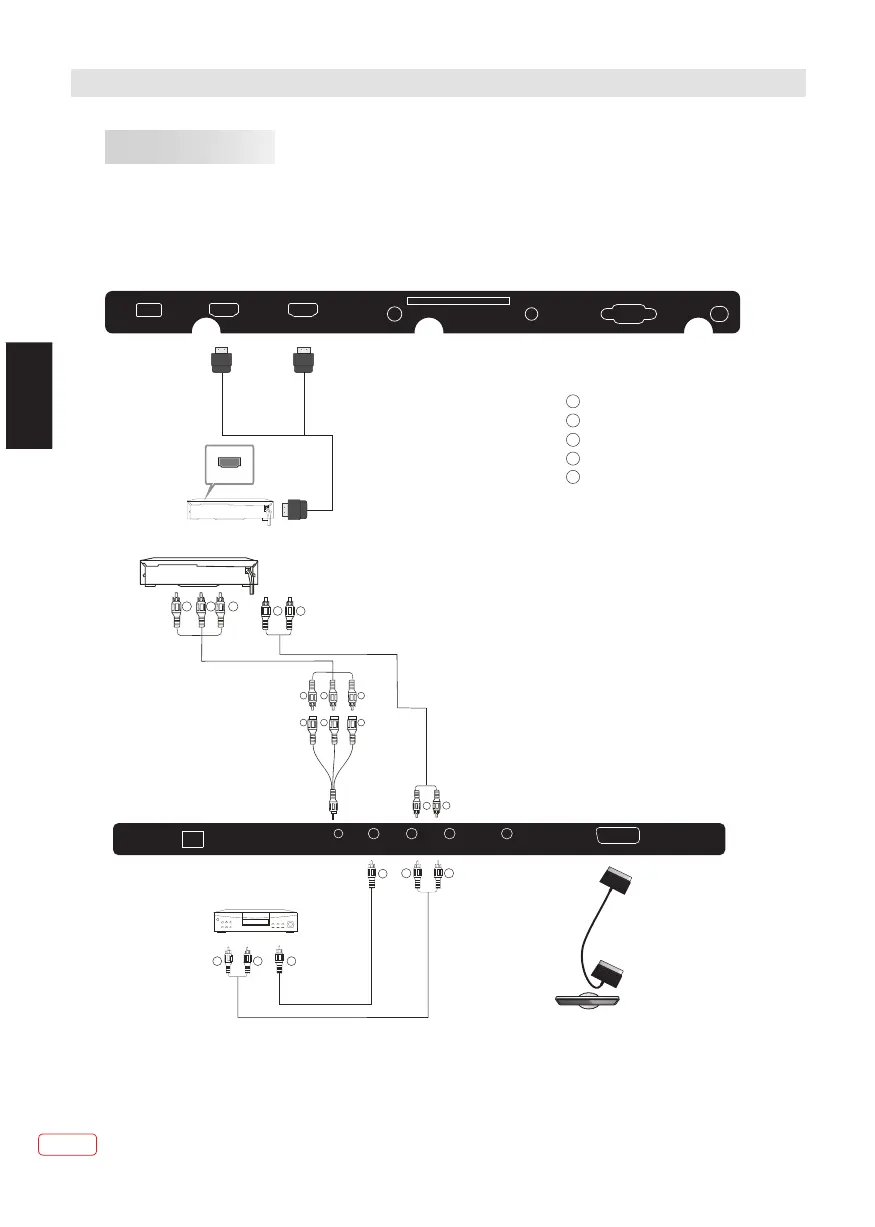

REAR AND SIDE CONNECTIONS
AV EQUIPMENT
It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder,
video game or stereo system, etc.....
YPbPr can support these video formats: 480i,576i,480p,576p,720p,1080i,1080p.
Installation
EN
HD MI
W R
G
B
R
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
Blue(Pb)
Green(Y)
B
G
VIDEO EQUIPMENT with YPbPr
W
R
W
R
W R
TO AUDIO OUTPUTS
VIDEO EQUIPMENT
TO VIDEO
OUTPUTS
Y
Y
RBG
RBG
USB HDMI2(ARC) HDMI1
HEADPHONE
COMMON INTERFACE(CI)
PC AUDIO
VGA
R F
AC-INP UT
100-24 0V~ 50/60Hz
YPbPr
VIDEO
L R
COAXIAL OUTPUT
SCART
Please use the attached SCART cable.
NOTE:
(attached)
