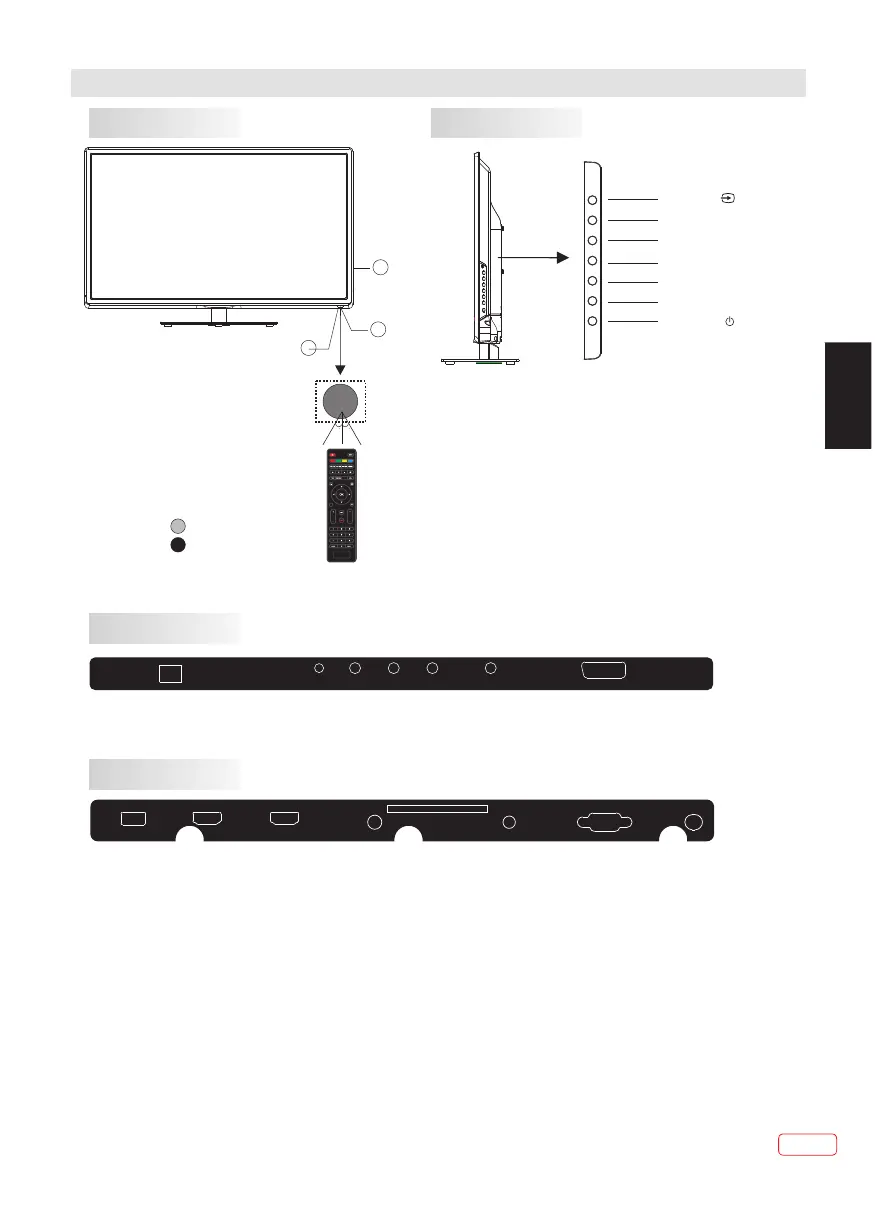

1: Remote Control Sensor.
2: Power Indicator LED:
BLUE POWER ON.
RED STANDBY.
3: Side buttons
30 30
1
3
2
KEYBOARD
Front panel
REAR AV Connections
All the terminals are(from left to right):AC-INPUT, YPbPr INPUT, VIDEO, AUDIO INPUT,
COAXIAL OUTPUT, SCART.
Note: VIDEO and YPbPr share one audio channel.
REAR AV Connections(SIDE)
All the terminals are(from left to right):
Note: 1.When HDMI port gets DVI signal ,the audio signal is received from the PC Audio channel.
2.Insert the plug of the earphone into the headphone jack on the unit.
The speakers are then muted.
USB, HDMI2(ARC), HDMI1, HEADPHONE, CI, PC AUDIO, VGA, RF.
EN
9
Installation
EN
VOL CH
FREEZE
EPG
AC-INP UT
100-24 0V~ 5 0/60Hz
YPbPr
VIDEO
L R
COAXIAL OUTPUT
SCART
USB HDMI2(ARC) HDMI1
HEADPHONE
COMMON INTERFACE(CI)
PC AUDIO
VGA
R F
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
1. SOURCE: Displays the input source menu;
press repeatedly to move down the menu or press
"CH+" or "CH-" to select the required source.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode,
press "CH+" or "CH-" to select items.In standby
mode, press "CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that
you selected.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
HDMI ARC (Audio Return Channel)
The ARC function allows you to send audio signal from your ARC-compliant TV to ARC-compliant
audio devices (e.g. home theatre) without the need to connect any audio cable (e.g. coaxial, optical
digital audio cable, or analog audio cable).
To enjoy the ARC function:
1. Make sure your ARC- compliant audio devices are connected by an HDMI 1.4 cable to the HDMI 2 (ARC)
port of your ARC- compliant TV. And open the ARC function of ARC-compliant audio devices.
2. Adjust TV setting : press MENU button, choose SETUP, then set HDMI CEC Control on.
3. Then, just use your TV remote control to adjust the volume output (VOL + / - and MUTE) of the
connected audio device.
Note: if the ARC-compliant audio devices do not support sound that TV outputs, such as Dolby
Digital , or Dolby Digital Plus, then ARC function will not work and there may be no sound from
ARC-compliant audio devices.
