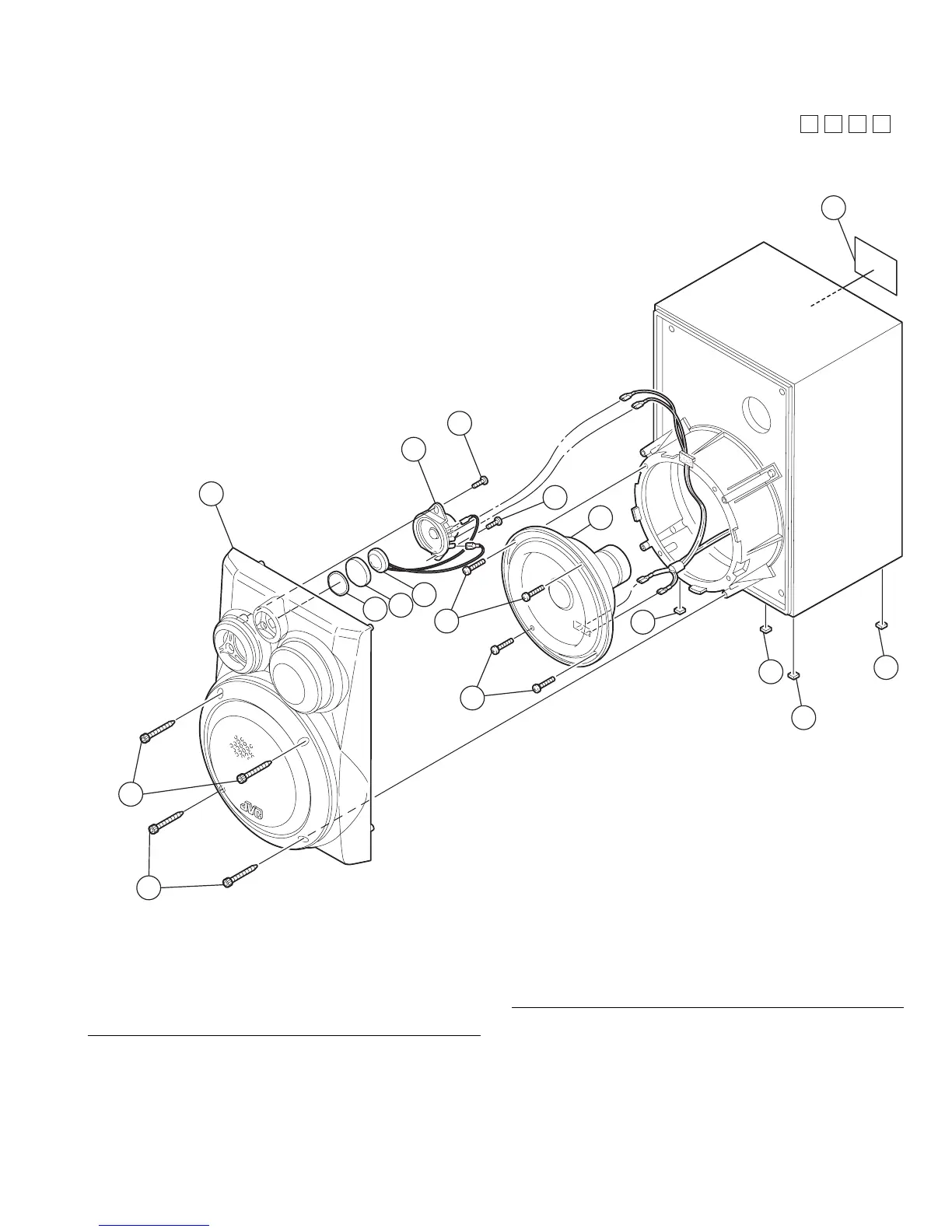

Speaker assembly and parts list
Main speaker
Block No. [M][2][M][M]
Block No.
M
M
M
2
(Main)
6
1
7
8
8
9
9
10
11
11
11
11
2
5
4
3
7
 Symbol No. Part No. Part Name Description Local
1 993060500031 TWEETER ASSY (x2)
2 991061650067 WOOFER ASSY (x2)
3 134720201090 PIEZO ASSY (x2)
4 108650291034 DUST CAP (x2)
5 138730291065 D.SIDE TAPE (x2)
6 199733350190 F.PANEL ASSY(L)
6 199733350191 F.PANEL ASSY(R)
7 135604081045 SCREW (x4)
8 135604161047 SCREW (x8)
9 135604161053 SCREW M4X16 (x8)
10 137640601416 BACK LABEL(L)
10 137640601417 BACK LABEL(R)
11 147780071049 LEG CUSHION (x8)
