3-10

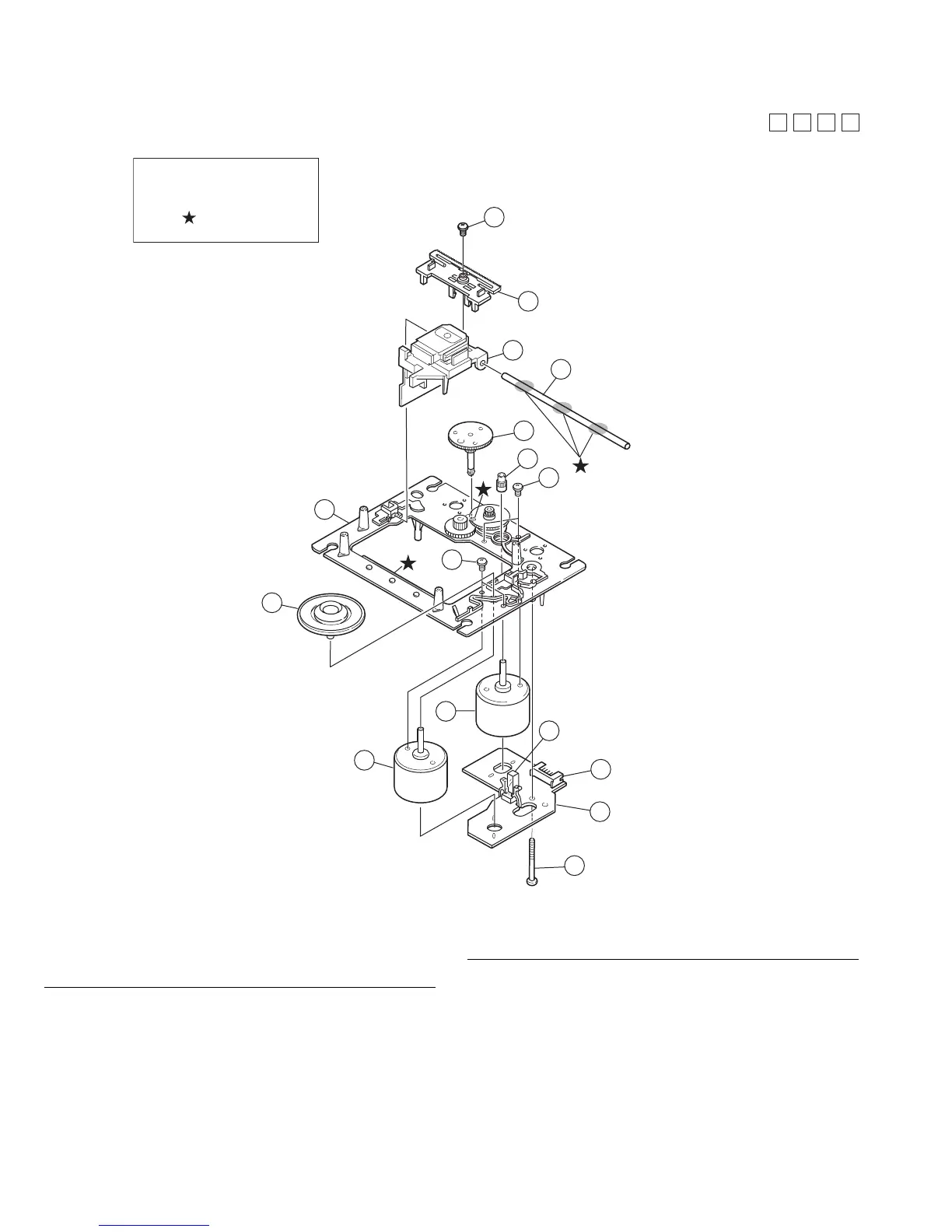

CD mechanism assembly and parts list
CD mechanism
Block No. [M][B][M][M]
15
4
2
3
5
1
8
10
9
13
12
11
6
6
7
14
FXL-M73T-1M
Block No.
M
M
M
B
= JVG-31N
Grease & Bond
Symbol No.
Part No. Part Name Description Local
1 LV10723-001A CD MECHA BASE A
2 OPTIMA-73B1 C.D PICK
3 E406777-002SM C.D SHAFT
4 LV31002-001A CD RACK
5 E307745-441SM C.D GEAR 3
6 QYSDSP2003N SCREW 2mm x 3mm(x4)
7 E406750-442SM PINION
8 EPB309173PKA T.T PACKING
9 QAR0253-001 FEED MOTOR
10 QAR0130-001 SP MOTOR
11 EMW10190-441 CIR BOARD
12 QGA2001F1-06 CONNECTOR W-B (1-6)
13 QSW0506-001 LEAF SW
14 E75832-221SS SPECIAL SCREW
15 QYSDSF2006Z SCREW 2mm x 6mm
Symbol No.
Part No. Part Name Description Local
