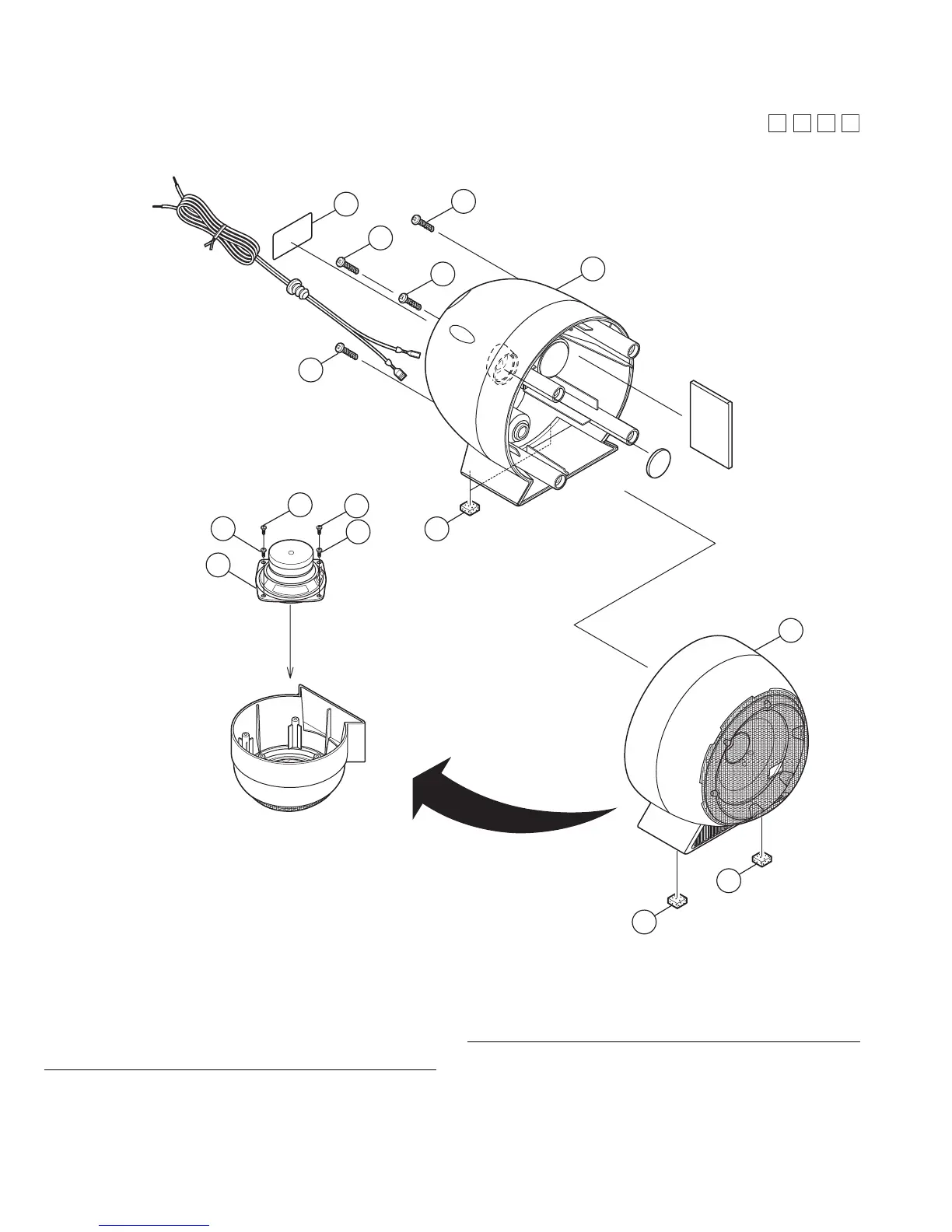

Speaker assembly and parts list
Surround speaker
Block No. [M][6][M][M]
Block No.
M
M
M
6
(Surround)
J
VC
7
5
5
5
5
2
4
4
4
4
3
1
6
6
6
 Symbol No. Part No. Part Name Description Local
1 J227HXZ9V00G40 FRONT CASE ASSY (x2)
2 J227HXZ9V01G10 BACK CASE ASSY (x2)
3 305-080006-00 FULLRANGE-REAR (x2)
4 411-B140080P1 SCREW (x8)
5 411-B840140B1 SCREW (x8)
6 441-915102-00 LEG CUSHION (x8)
7 600-00XSZ9-00 SPEC LABEL (x2)
