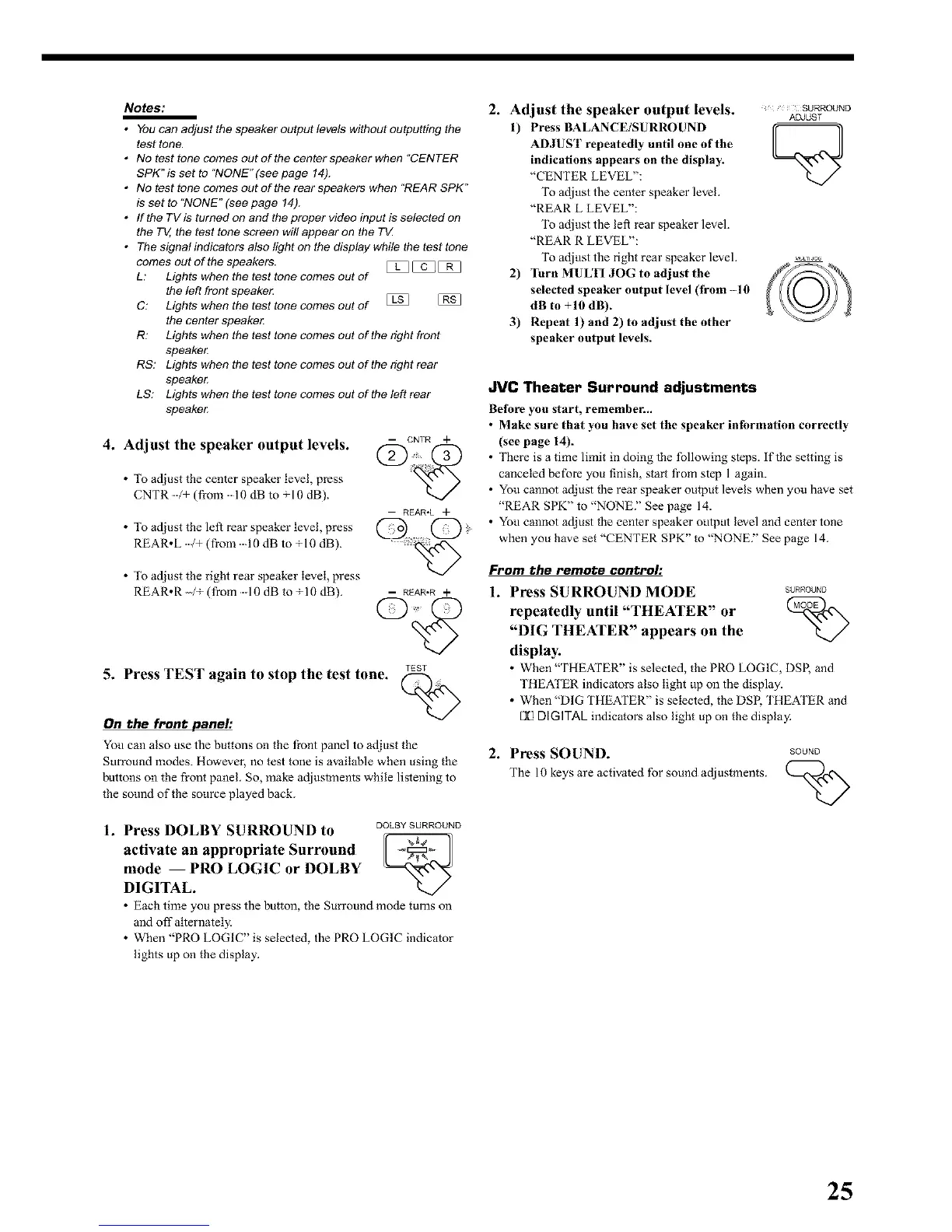

Notes:
• Youcanadjustthespeakeroutputlevelswithoutoutputtingthe
test tone.
• No test tone comes out of the center speaker when "CENTER
SPK" is set to "NONE" (see page 14).
• No test tone comes out of the rear speakers when "REAR SPK"
is set to "NONE" (see page 14).
• If the TVis turned on and the proper video input is selected on
the TV, the test tone screen wi!l appear on the 7qZ
• Thesignalindicatorsalsolightonthedisplaywhilethetesttone
comes out of the speakers.
L: Lights when the test tone comes out of
the left front speaker
C: Lights when the test tone comes out of _
the center speaker
R: Lights when the test tone comes out of the right front
speake_
RS: Lightswhenthetesttonecomesoutoftherightrear
speake_
LS: Lights when the test tone comes out of the left rear
speake_
4. Adjust the speaker output levels.
• ]_ adjust the center speaker level, press
CNTR/+ (from 10 dB to-710 dB).
• ]_ adjust the left rear speaker level, press
REAR•L/+ (from 10 dB to-710 dB).
To adjust the right rear speaker level, press
REAR•R/+ (from 10 dB to +10 dB).
5. Press TEST again to stop the test tone. TEST
%
On the front panel:
You can also use the buttons on the front panel to adiust the
Surround modes. However, no test tone is available when using the
buttons on the front panel. So, make adjustments while listening to
the sound of the source played back.
1. Press DOLBY SURROUND to DOLBYSURROUND
activate an appropriate Surround
mode -- PRO LOGIC or DOLBY
DIGITAL.
• Each time you press the button, the Surround mode tunas on
and off alternately.
• When "PRO LOGIC" is selected, the PRO LOGIC indicator
lights up on the display.
2. Adjust the speaker output levels.
1) Press BALANCE/SURROUND
ADJUST repeatedly until one of the
indications appears on the display.
"CENTER LEVEL":
To adjust the center speaker level.
"REAR L LEVEL":
To adjust the left rear speaker level.
"REAR R LEVEL":
To adjust the right rear speaker level.
2) "lurn MULTI JOG to adjust the
selected speaker output level (|horn -10
dB to +10 dB).
3) Repeat 1) and 2) to adjust the other
speaker output levels.
SURROUND
ADJUST
JVC Theater Surround adjustments
Before you start, remember...
• Make sure that you have set the speaker intbrmation correctly
(see page 14).
• There is a time limit in doing the following steps, if the setting is
canceled before you finish, strut from step 1 again.
• You cannot adiust the rear speaker output levels when you have set
"REAR SPK" to "NONE?' See page 14.
• You cannot adjust the center speaker output level and center tone
when you have set "CENTER SPK" to "NONE." See page 14.
From the remote control:
1. Press SURROUND MODE SURROUN0
repeatedly until "THEATER" or k_@. x
"DIG THEATER" appears on the
display;
• When "THEATER" is selected, the PRO LOGIC, DSR and
THEATER indicators also light up on the display.
• When "DIG THEATER" is selected, the DSP, THEATER and
01! DIGITAL indicators also light up on the display.
2. Press SOUND. SOUND
The 10 keys are activated for sound adjustments. _-')..,KN
25
